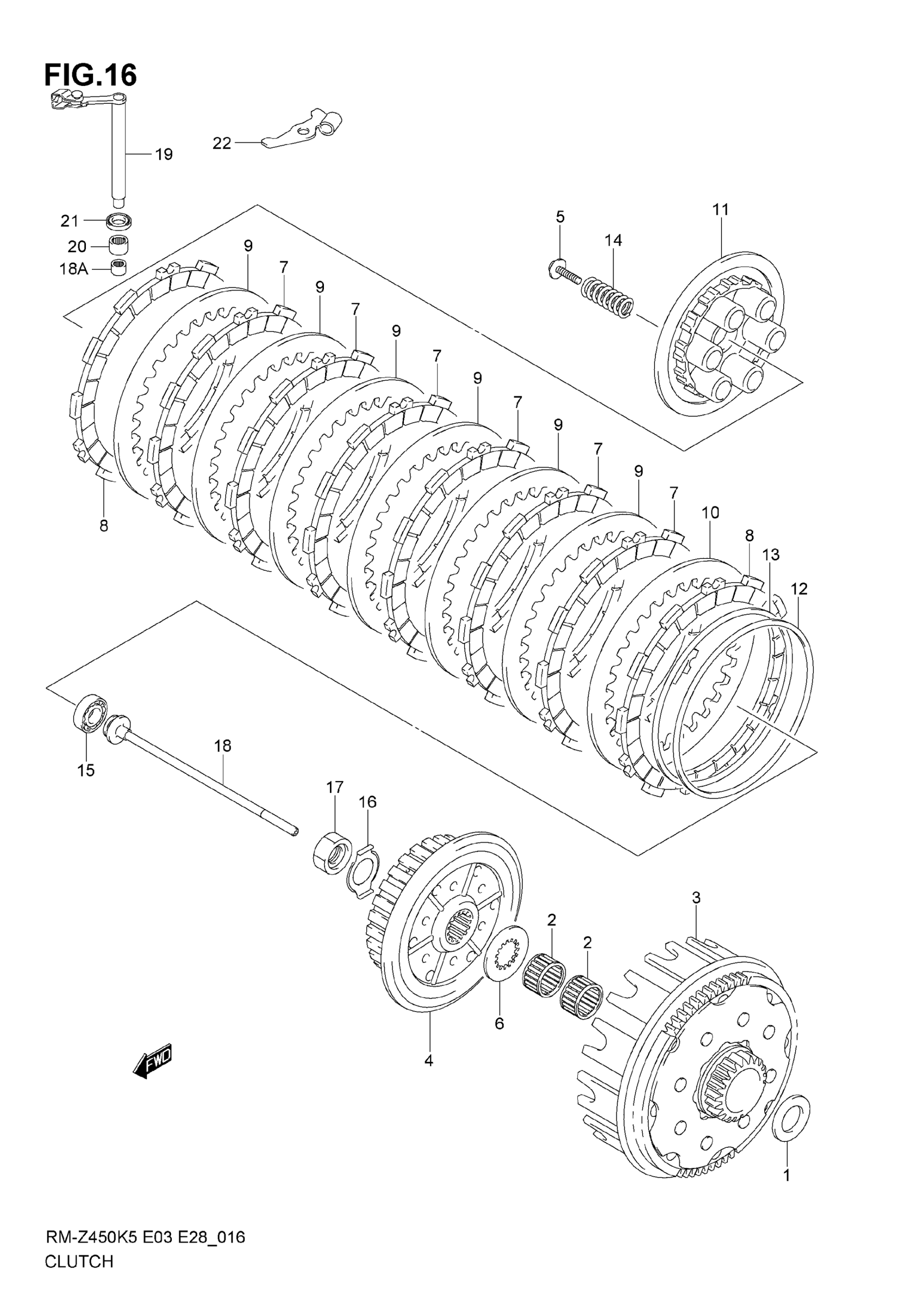

Suzuki RM-Z450 (2007) CLUTCH Diagram

#

Description
Price

1

WASHER, PRI DRIVEN GEAR | 25X34X1.3

09181-25181

$3.53

2

BEARING (25X29X13) | 25X29X13

09263-25069

$32.42

3

GEAR ASSY, PRIMARY DRIVE

21200-35G00

$466.93

4

HUB, CLUTCH SLEEVE | MODEL K5 This part replaces 21411-35G10.

21411-35G11

$117.42

4

HUB, CLUTCH SLEEVE | MODEL K6/K7

21411-35G11

$117.42

5

BOLT,CLUTCH SPRING (6X25) | 6X25

21412-35G00

$2.88

6

WASHER, CLUTCH SLEEVE | 19.5X45X3

21415-35G00

$45.70

7

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-35G00

$21.23

8

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

$12.74

9

PLATE,CLUTCH DRIVEN (T:1.6)

21451-35G00

$9.31

10

PLATE,CLUTCH DRIVEN (T:1.6)

21452-35G00

$14.00

11

DISC, CLUTCH PRESSURE

21462-35G10

$93.53

12

SEAT, WAVE WASHER

21471-35G00

$25.13

13

WASHER,CLUTCH PLATE WAVE

21472-35G00

$24.00

14

SPRING, CLUTCH

09440-18036

$8.57

15

BEARING, CLUTCH RELEASE

08110-68040

$50.18

16

WASHER,CLUTCH S | MODEL K5 This part replaces 21416-35G00.

21416-35G01

$6.60

16

WASHER,CLUTCH SLEEVE HUB LOCK | MODEL K6/K7

21416-35G10

$4.32

17

NUT, CLUTCH SLEEVE HUB

09140-18017

$15.33

18

ROD, CLUTCH PUSH

23110-35G00

Unavailable

18A

BEARING, CL (7X11X9) | MODEL K6/K7

23129-35G00

$11.92

19

CAMSHAFT, CLUTCH RELEASE

23200-35G00

Unavailable

20

BEARING, CL RELEASE CAMSHAFT | 10X14X10

09263-10014

$12.21

21

SEAL, CL RELEASE CAMSHAFT OIL | 10X17X5

09285-10004

$3.04

22

BRACKET, CLUTCH CABLE

23911-35G01

Unavailable
