2025 Suzuki RM-Z250M5 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2025 Suzuki RM-Z250M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

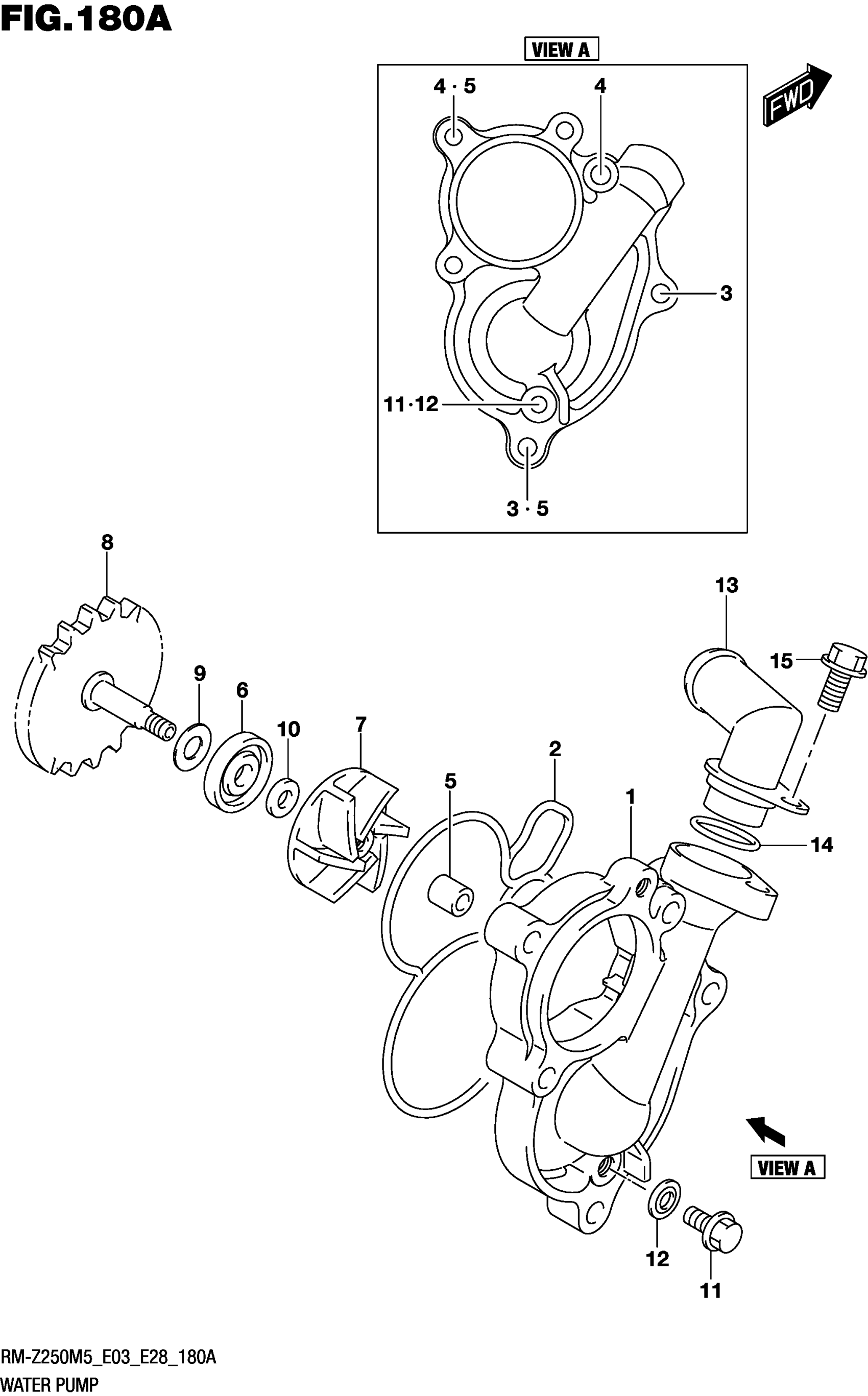

2025 Suzuki RM-Z250M5 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE,WATER PUMP

17411-10H10

1

$99.87

In stock

2

1

$11.99

In stock

3

BOLT

01547-0660A

2

$2.92

In stock

4

BOLT

01547-0665A

2

$2.52

In stock

5

PIN

04211-09109

2
Out of stock

6

SEAL,WATER PUMP OIL

17461-37F00

1

$7.67

In stock

7

IMPELLER,WATER PUMP

17491-10H00

1

$31.90

In stock

8

1

$114.82

In stock

9

SHIM (8X18X0.5)

09181-08186

1

$2.39

In stock

10

SHIM (6X14X1)

09181-06003

1

$2.72

In stock

11

.BOLT

07120-0610A

1
Out of stock

12

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

13

JOINT,WATER PUMP

17857-49H00

1

$39.72

In stock

14

O-RING

09280-17012

1

$1.97

In stock

15

BOLT

01547-0612A

1
Out of stock
