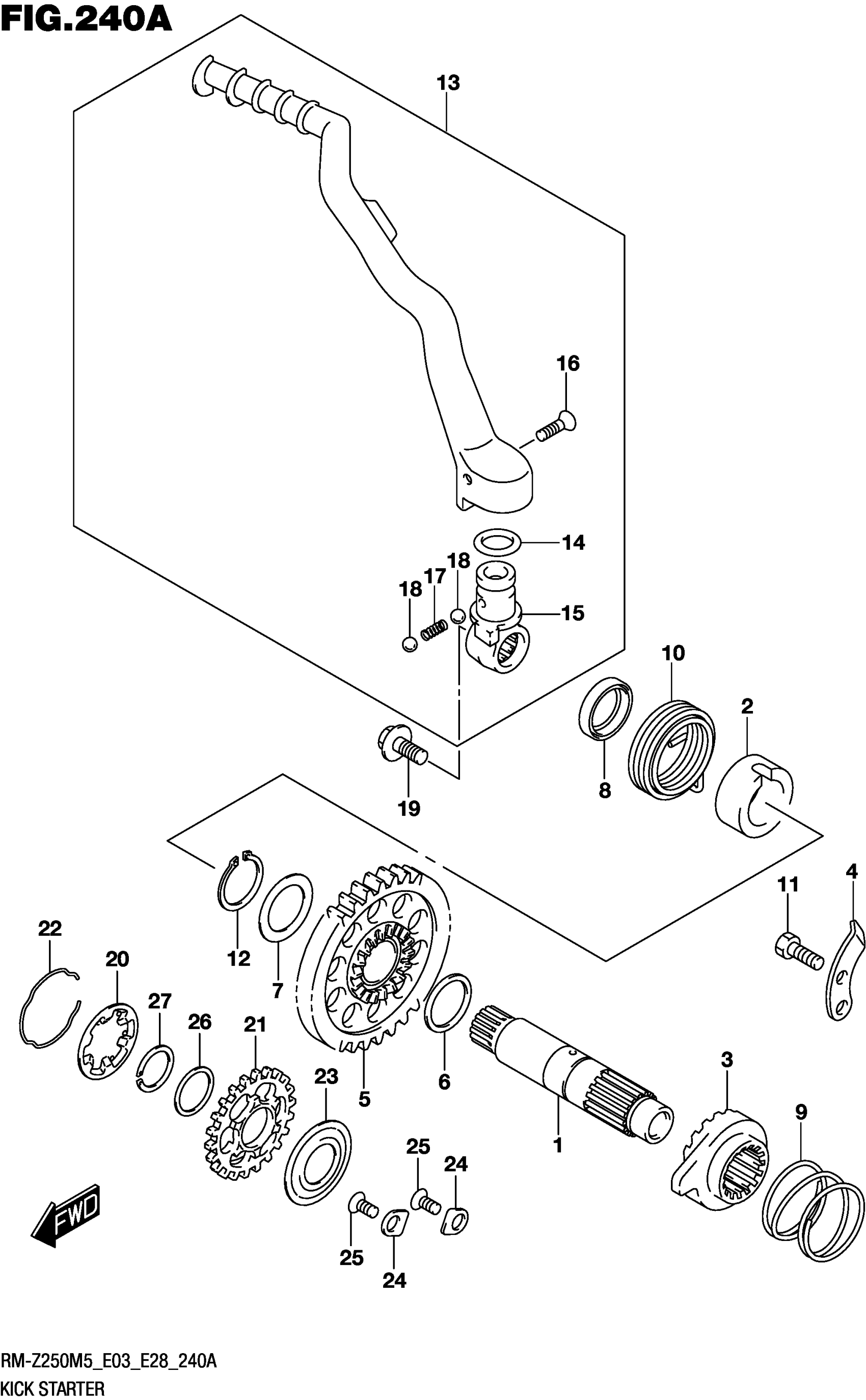

Suzuki RM-Z250M5 (2025) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-46K00

$114.71

2

GUIDE,KICK STARTER SFT SPRING

26221-49H00

$16.70

3

STARTER,KICK

26231-10H00

$73.63

4

GUIDE,KICK STARTER

26232-49H00

$9.50

5

GEAR,KICK STARTER DRIVE (NT:3 | )

26240-49H00

$116.60

6

SHIM (18X22X1)

09181-18004

$4.03

7

SHIM (18X26X0.5)

09181-18005

$4.03

8

OIL SEAL (18X30X8)

09283-18004

$4.73

9

SPRING

09440-31002

$2.01

10

SPRING

09448-45014

$9.60

11

BOLT

01500-0612A

$1.80

12

CIRCLIP

08331-3118A

$2.30

13

LEVER ASSY,KICK STARTER

26300-46K01

$234.90

14

.O-RING

26313-28E21

$2.45

15

.JOINT,KICK STARTER LEVER

26331-49H00

$51.28

16

.SCREW (6X27.5)

09127-06024

$4.45

17

.SPRING

09440-05031

$1.45

18

BALL

06111-07004

$1.22

19

BOLT (8X14)

09103-08522

$3.77

20

CAP,BREATHER GEAR

11335-28H00

$13.63

21

GEAR,BREATHER (NT:22)

11337-49H00

$107.77

22

CIRCLIP,BREATHER CAP

11338-28H00

$7.68

23

PLATE,BREATHER GEAR

11339-28H00

$7.15

24

RETAINER

24741-20A00

$2.80

25

SCREW (6X12)

09126-06011

$2.01

26

SHIM (22X28X0.5)

09181-22130

$2.80

27

CIRCLIP

09380-22006

$2.80
