2025 Suzuki RM-Z250M5 Front Fork Damper Diagram

← All diagrams

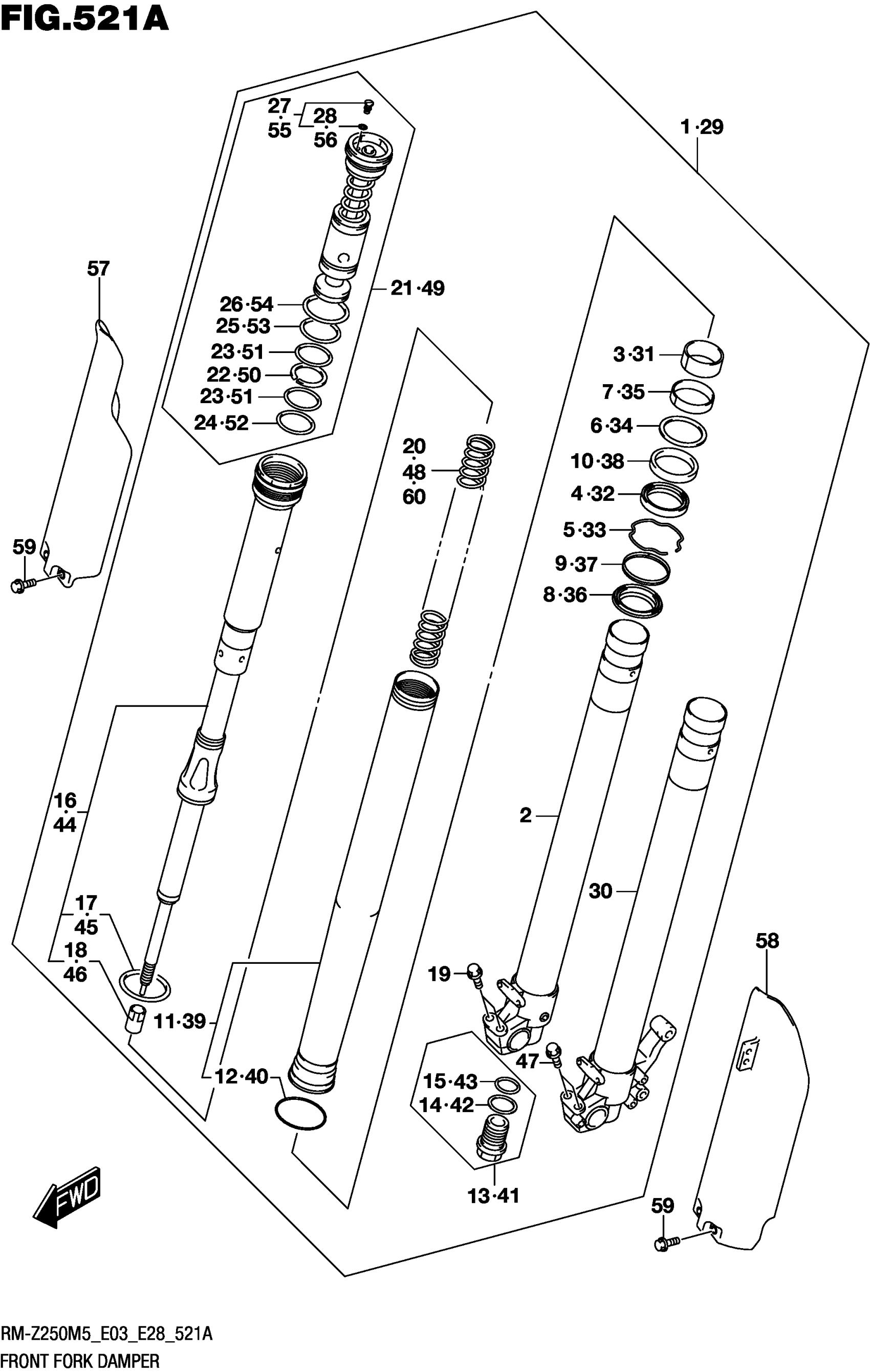

Find the part on the Front Fork Damper diagram for your 2025 Suzuki RM-Z250M5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki RM-Z250M5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-46K00

1
Out of stock

2

.TUBE, INNER RH

51110-46K00

1
Out of stock

3

.PISTON

51127-49HE0

1
Out of stock

4

.SEAL,OIL

51153-49HE0

1
Out of stock

5

.RING,SNAP

51156-49HE0

1
Out of stock

6

.WASHER

51158-46K00

1
Out of stock

7

.METAL,SLIDE

51167-49HE0

1
Out of stock

8

.SEAL,DUST

51173-49HE0

1
Out of stock

9

.SCRAPER

51152-49HE0

1
Out of stock

10

.COLLAR

51155-49HE0

1
Out of stock

11

.TUBE, OUTER

51130-46K00

1
Out of stock

12

..RING,SNAP

51211-49H40

1
Out of stock

13

.ADJUSTER

51170-46K00

1
Out of stock

14

..GASKET

51148-01B20

1
Out of stock

16

.CYLINDER ASSY

51190-46K00

1
Out of stock

17

..O RING

51117-48G01

1

$3.13

In stock

18

..NUT

51814-49H40

1
Out of stock

19

BOLT

51166-24F60

2
Out of stock

20

.SPRING | STD K=5.0

51171-46K00

1
Out of stock

21

.VALVE ASSY,BASE

51350-46K00

1
Out of stock

22

..RING,BACKUP

51124-46K00

1
Out of stock

23

..O RING

51174-46K00

2
Out of stock

24

..O RING

51175-46K00

1
Out of stock

25

..O RING

51186-46K00

1
Out of stock

26

..O RING

51187-46K00

1
Out of stock

27

..SCREW

51357-46K00

1
Out of stock

28

...O RING

51358-46K00

1
Out of stock

29

DAMPER ASSY, FRONT FORK LH

51104-46K00

1
Out of stock

30

.TUBE, INNER LH

51120-46K00

1
Out of stock

31

.PISTON

51127-49HE0

1
Out of stock

32

.SEAL,OIL

51153-49HE0

1
Out of stock

33

.RING,SNAP

51156-49HE0

1
Out of stock

34

.WASHER

51158-46K00

1
Out of stock

35

.METAL,SLIDE

51167-49HE0

1
Out of stock

36

.SEAL,DUST

51173-49HE0

1
Out of stock

37

.SCRAPER

51152-49HE0

1
Out of stock

38

.COLLAR

51155-49HE0

1
Out of stock

39

.TUBE, OUTER

51130-46K00

1
Out of stock

40

..RING,SNAP

51211-49H40

1
Out of stock

41

.ADJUSTER

51170-46K00

1
Out of stock

42

..GASKET

51148-01B20

1
Out of stock

44

.CYLINDER ASSY

51190-46K00

1
Out of stock

45

..O RING

51117-48G01

1

$3.13

In stock

46

..NUT

51814-49H40

1
Out of stock

47

BOLT

51166-24F60

2
Out of stock

48

.SPRING | STD K=5.0

51171-46K00

1
Out of stock

49

.VALVE ASSY,BASE

51350-46K00

1
Out of stock

50

..RING,BACKUP

51124-46K00

1
Out of stock

51

..O RING

51174-46K00

2
Out of stock

52

..O RING

51175-46K00

1
Out of stock

53

..O RING

51186-46K00

1
Out of stock

54

..O RING

51187-46K00

1
Out of stock

55

..SCREW

51357-46K00

1
Out of stock

56

...O RING

51358-46K00

1
Out of stock

57

PROTECTOR,FRONT FORK,R

51501-28H60

1
Out of stock

58

PROTECTOR,FRONT FORK,L

51510-28H70

1
Out of stock

59

BOLT (6X10)

09111-06098

6
Out of stock

60-1

SPRING,FRONT | SOFT K=4.9

51171-46K10

2
Out of stock

60-2

SPRING,FRONT | HARD K=5.1

51171-46K20

2
Out of stock
