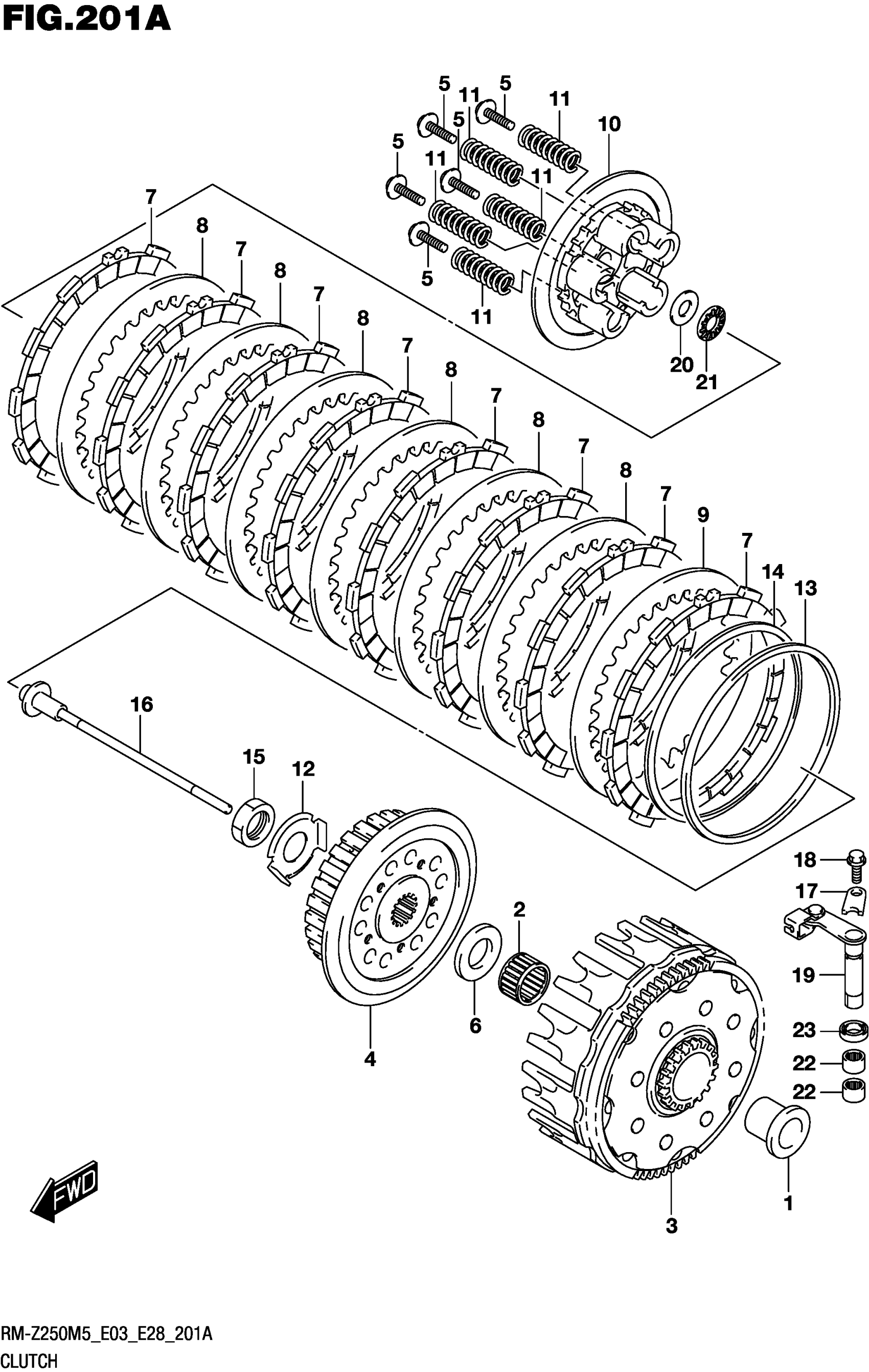

Suzuki RM-Z250M5 (2025) CLUTCH Diagram

#

Description
Price

1

SPACER,PRIMARY DRIVEN GEAR (N | :18/63)

21251-10H00

$56.78

2

BEARING (27X32X21.8)

09263-27004

$36.03

3

GEAR ASSY,PRIMARY DRIVEN (NT: | 8/63)

21200-49H10

$246.20

4

HUB,CLUTCH SLEEVE

21411-10H10

$121.15

5

BOLT,CLUTCH SPRING (6X35)

21412-45G00

$3.05

6

WASHER (22X45X3)

09160-22083

$15.50

7

PLATE,CLUTCH DRIVE,N0.2 (T:2. | )

21441-40F10

$21.62

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-10H00

$13.12

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-10H00

$17.77

10

DISC,CLUTCH PRESSURE

21462-10H00

$60.15

11

SPRING,CLUTCH

21413-46K00

$7.25

12

WASHER,CLUTCH SLEEVE HUB LOCK

21416-49H00

$5.43

13

SEAT,CLUTCH PLATE WAVE WASHER

21471-40F00

$13.50

14

WASHER,CLUTCH PLATE

21472-10H00

$24.27

15

NUT,CLUTCH SLEEVE HUB

21414-49H00

$11.95

16

ROD,CLUTCH PUSH

23110-46K00

$78.92

17

RETAINER,CL RELEASE CAMSHAFT

23117-10H00

$5.75

18

BOLT

01547-0612A

$2.01

19

CAMSHAFT,CLUTCH RELEASE

23200-49H20

$90.02

20

SHIM (12X26X0.8)

09181-12016

$3.18

21

BEARING (12X26X2)

09263-12019

$13.57

22

BEARING (10X14X10)

09263-10014

$12.21

23

SEAL,OIL (10X17X5)

09285-10004

$3.04
