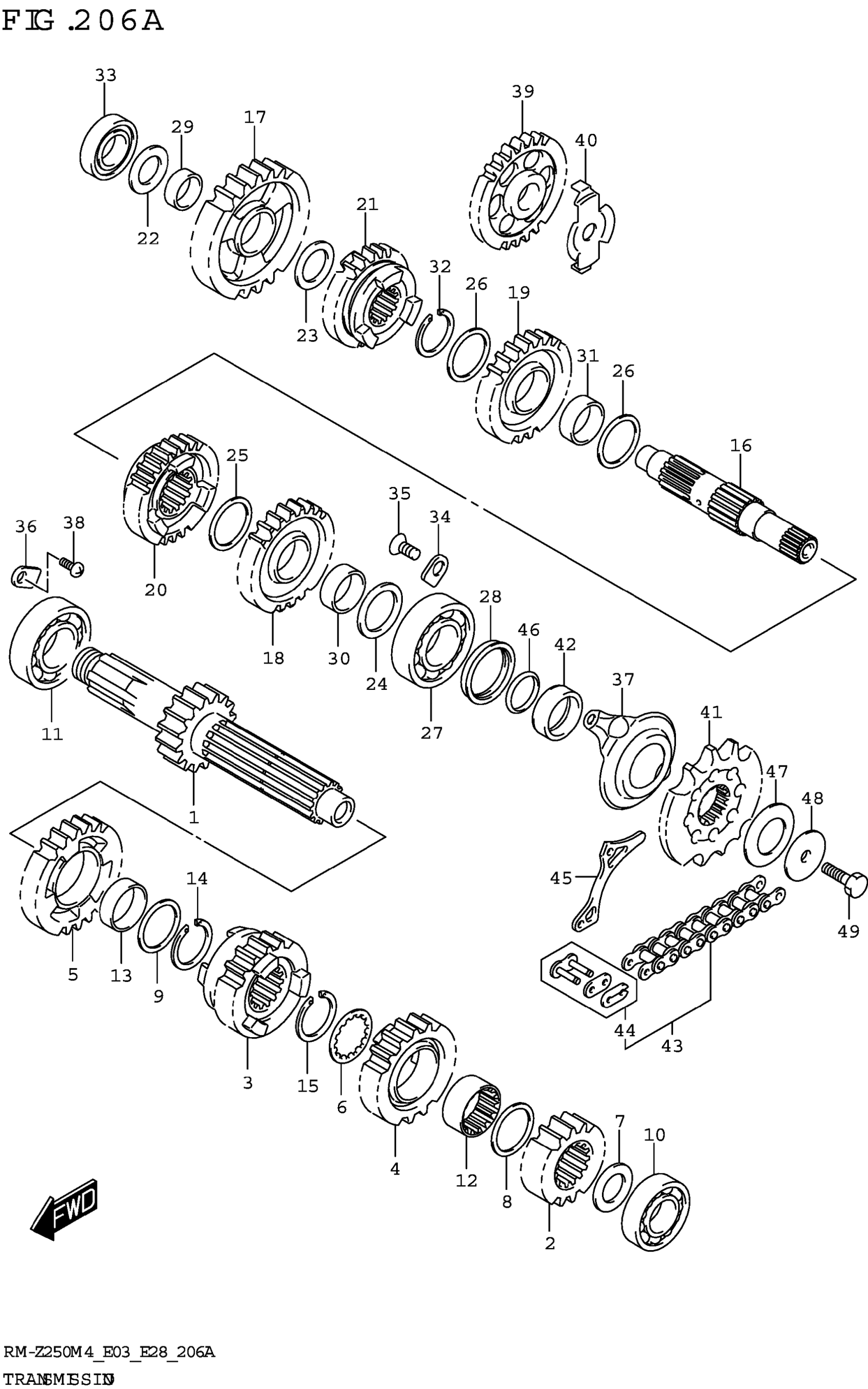

Suzuki RM-Z250M4 (2024) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER

24120-49H20

$219.47

2

GEAR,2ND DRIVE

24221-46K00

$96.75

3

GEAR,3RD DRIVE (NT:17)

24231-49H10

$120.58

4

GEAR,4TH DRIVE (NT:21)

24241-49H10

$101.02

5

GEAR,5TH DRIVE (NT:22)

24251-49H10

$110.60

6

WASHER,4TH DRIVE GEAR

24243-49H00

$8.13

7

SHIM (17X28X1.0)

09181-17195

$2.81

8

SHIM (24X30X1)

09181-24008

$4.45

9

SHIM (24X30X1)

09181-24008

$4.45

10

BEARING (17X40X9.5)

09262-17040

$19.14

11

BEARING (22X50X14)

09262-22018

$27.83

12

BUSH,4TH DRIVE GEAR

24242-49H00

$35.55

13

BUSH,5TH DRIVE GEAR

24252-49H00

$29.12

14

CIRCLIP

09380-24007

$3.82

15

CIRCLIP

09380-24007

$3.82

16

SHAFT,DRIVE

24131-49H10

$183.65

17

GEAR,1ST DRIVEN (NT:28)

24311-49H10

$124.05

18

GEAR,2ND DRIVEN

24321-46K00

$115.78

19

GEAR,3RD DRIVEN (NT:25)

24331-49H10

$123.47

20

GEAR,4TH DRIVEN (NT:26)

24341-49H10

$129.62

21

GEAR,5TH DRIVEN (NT:24)

24351-49H10

$130.68

22

SHIM (17X28X1.0)

09181-17195

$2.81

23

SHIM (20X28X1.0)

09181-20167

$2.64

24

SHIM (22X30X1.0)

09181-22167

$2.80

25

SHIM (24X30X1)

09181-24008

$4.45

26

SHIM (24X30X1)

09181-24008

$4.45

27

BEARING (22X52X15)

09262-22040

$82.07

28

OIL SEAL (28X38X7.5)

09289-28012

$8.74

29

BUSH (20X24X10)

09300-20037

$19.47

30

BUSH,2ND DRIVEN GEAR

24323-49H00

$35.55

31

BUSH,2ND DRIVEN GEAR

24323-49H00

$35.55

32

CIRCLIP

09380-24007

$3.82

33

BEARING

08113-6203A

$13.48

34

RETAINER

24741-20A00

$2.80

35

SCREW (6X12)

09126-06011

$2.01

36

RETAINER

24741-21A00

$2.80

37

RETAINER,DRIVE SHAFT OIL SEAL

24751-49H00

$17.28

38

SCREW (6X12)

09125-06122

$2.54

39

GEAR,KICK STARTER IDLE (NT:28

26260-49H10

$104.10

40

WASHER,ENG SPROCKET BOLT LOCK

27516-28H00

$14.18

41

SPROCKET,ENGINE (NT:13)

27511-49H10

$37.38

42

SPACER,ENGINE SPROCKET

27531-49H00

$32.70

43

CHAIN ASSY,DRIVE

27600-46K00-114

$156.72

44

.JOINT SET,CHAIN

27620-46K00

$10.80

45

PLATE,FRONT CHAIN GUIDE

27641-28H00

$12.40

46

D-RING,SPROCKET SPACER

27515-49H00

$6.90

47

WASHER,ENGINE SPROCKET WAVE

27514-49H00

$7.57

48

WASHER,ENGINE SPROCKET

27513-49H00

$17.15

49

BOLT,ENGINE SPROCKET

27517-28H00

$7.11
