Description

Price

1

WHEEL ASSY,FRONT

54100-37K01

$861.77

2

.HUB,FR

54111-35G01

$331.95

3

.SPACER,FR HUB BEARING (20.5X | 5X27.3X50)

54731-35G00

$28.80

4

.BEARING (22X39X9)

09262-22048

$50.02

5

.SEAL,OIL (30X40X7)

09283-30073

$18.78

6

.RIM,FR WHEEL (21X1.60)

55311-37K00

$390.43

7

.SPOKE,FR WHEEL

55321-35G10

$4.51

8

.NIPPLE,FRONT WHEEL

55325-35G00

$6.60

9

AXLE,FR

54711-35G00

$130.13

10

SPACER,FR AXLE (L:41)

54741-35G00

$41.25

11

COVER,FR AXLE SPACER

54742-35G00

$8.46

12

NUT

09159-18016

$13.30

13

DISC,FRONT BRAKE

59221-37K00

$214.85

14

SCREW (6X13.5)

09139-06142

$4.32

15

TIRE,FRONT

55110-46K00

$301.97

16

TUBE ASSY,WHEEL INNER This part replaces 55200-29F00.

55200-29F01

$31.37

17

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

$7.77

18

STOPPER,BEAD

65270-14300

$59.52

19

WASHER

08322-0108A

$2.18

20

NUT

08310-0008A

$1.86

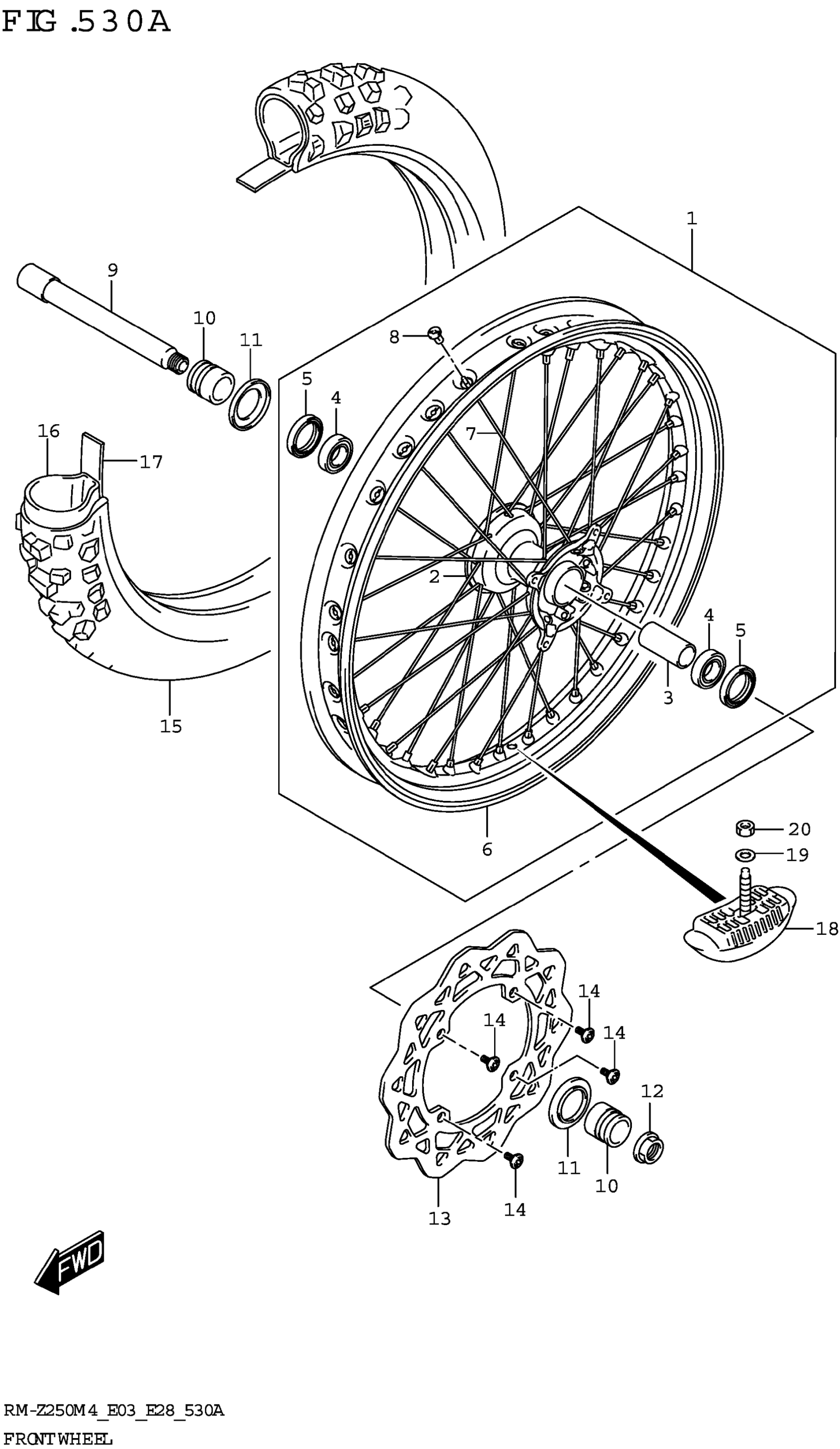

Suzuki RM-Z250M4 (2024) FRONT WHEEL Diagram
