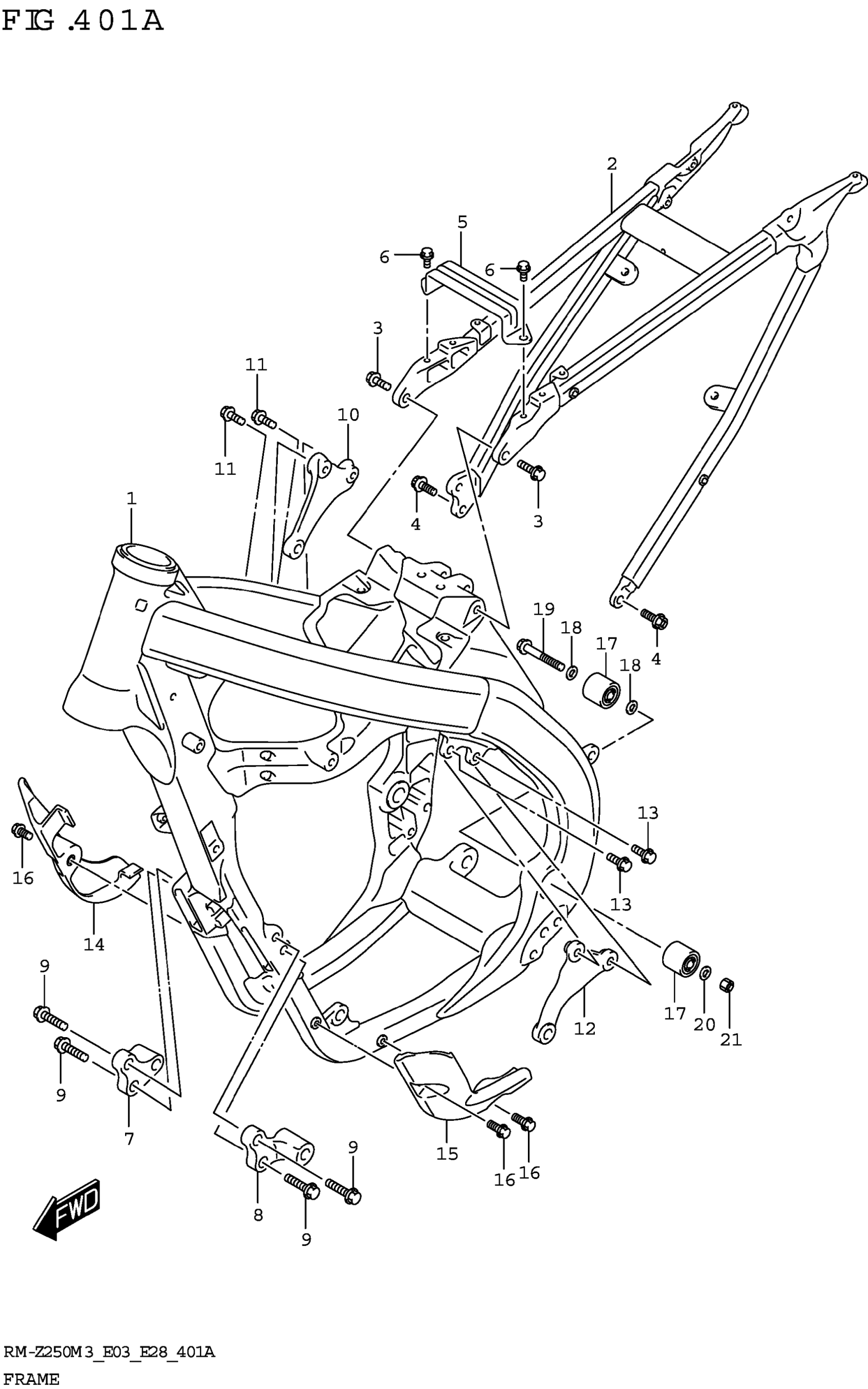

Suzuki RM-Z250M3 (2023) FRAME Diagram

#

Description
Price

1

FRAME

41100-46K20

$3,176.17

2

RAIL,SEAT

41200-37K00

$874.85

3

BOLT, HOOK This part replaces 09103-08255.

09103-08288

$4.35

4

BOLT (8X20)

09103-08505

$3.90

5

BRIDGE,SEAT RAIL UPPER

41542-46K00

$15.87

6

BOLT

01547-0616A

$2.01

7

BRACKET,ENG MTG FR RH

41911-46K00

$87.20

8

BRACKET,ENG MTG FR LH

41921-46K00

$87.20

9

BOLT (8X30)

09103-08048

$5.65

10

BRACKET,ENG MTG UPPER RH

41931-46K00

$99.28

11

BOLT, HOOK This part replaces 09103-08255.

09103-08288

$4.35

12

BRACKET,ENG MTG UPPER LH

41941-46K00

$99.28

13

BOLT (8X20)

09103-08505

$3.90

14

PROTECTOR,FRONT,R

42520-28H11

$22.75

15

PROTECTOR,FRONT,L

42530-28H20

$34.41

16

BOLT (6X25)

09116-06177

$3.05

17

ROLLER,CHAIN

43910-37F00

$77.40

18

SHIM (8X16X1)

09181-08167

$1.98

19

BOLT (8X45)

09103-08207

$2.59

20

SHIM (8X12X1)

09181-08111

$1.95

21

NUT

08319-2108A

$2.13
