2023 Suzuki RM-Z250M3 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2023 Suzuki RM-Z250M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

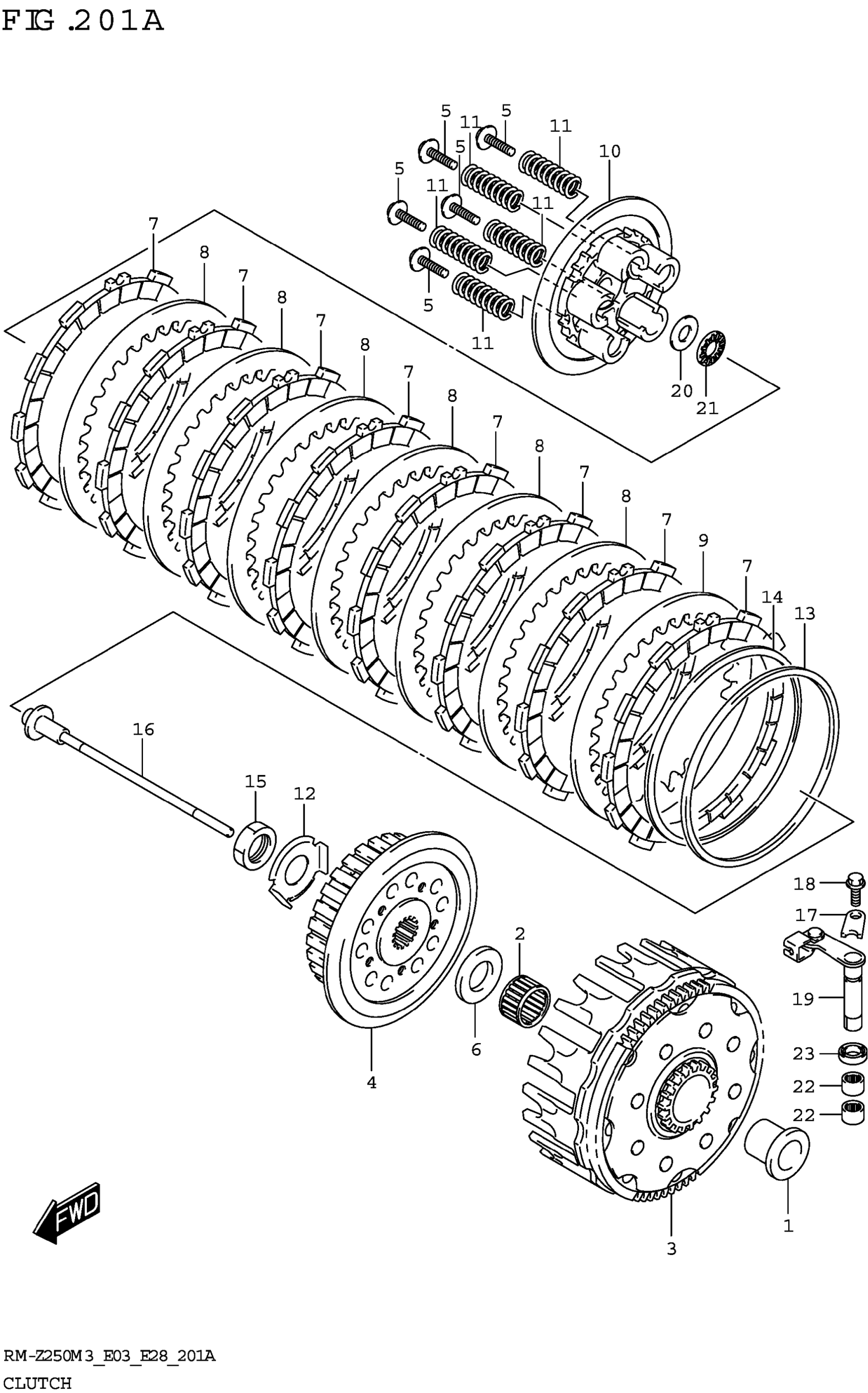

2023 Suzuki RM-Z250M3 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$56.78

In stock

2

BEARING (27X32X21.8)

09263-27004

1

$36.03

In stock

3

1

$345.53

In stock

4

HUB,CLUTCH SLEEVE

21411-10H10

1

$121.15

In stock

5

5

$3.33

In stock

6

WASHER (22X45X3)

09160-22083

1

$15.50

In stock

7

8

$21.62

In stock

8

6

$13.12

In stock

9

1

$17.77

In stock

10

DISC,CLUTCH PRESSURE

21462-10H00

1

$60.15

In stock

11

SPRING,CLUTCH

21413-46K00

5

$7.25

In stock

12

1

$5.43

In stock

13

1

$14.70

In stock

14

WASHER,CLUTCH PLATE

21472-10H00

1

$24.27

In stock

15

NUT,CLUTCH SLEEVE HUB

21414-49H00

1

$11.95

In stock

16

ROD,CLUTCH PUSH

23110-46K00

1

$78.92

In stock

17

1

$5.75

In stock

18

BOLT

01547-0612A

1
Out of stock

19

1

$90.02

In stock

20

SHIM (12X26X0.8)

09181-12016

1

$3.18

In stock

21

BEARING (12X26X2)

09263-12019

1

$13.57

In stock

22

BEARING (10X14X10)

09263-10014

2

$13.10

In stock

23

SEAL,OIL (10X17X5)

09285-10004

1
Out of stock
