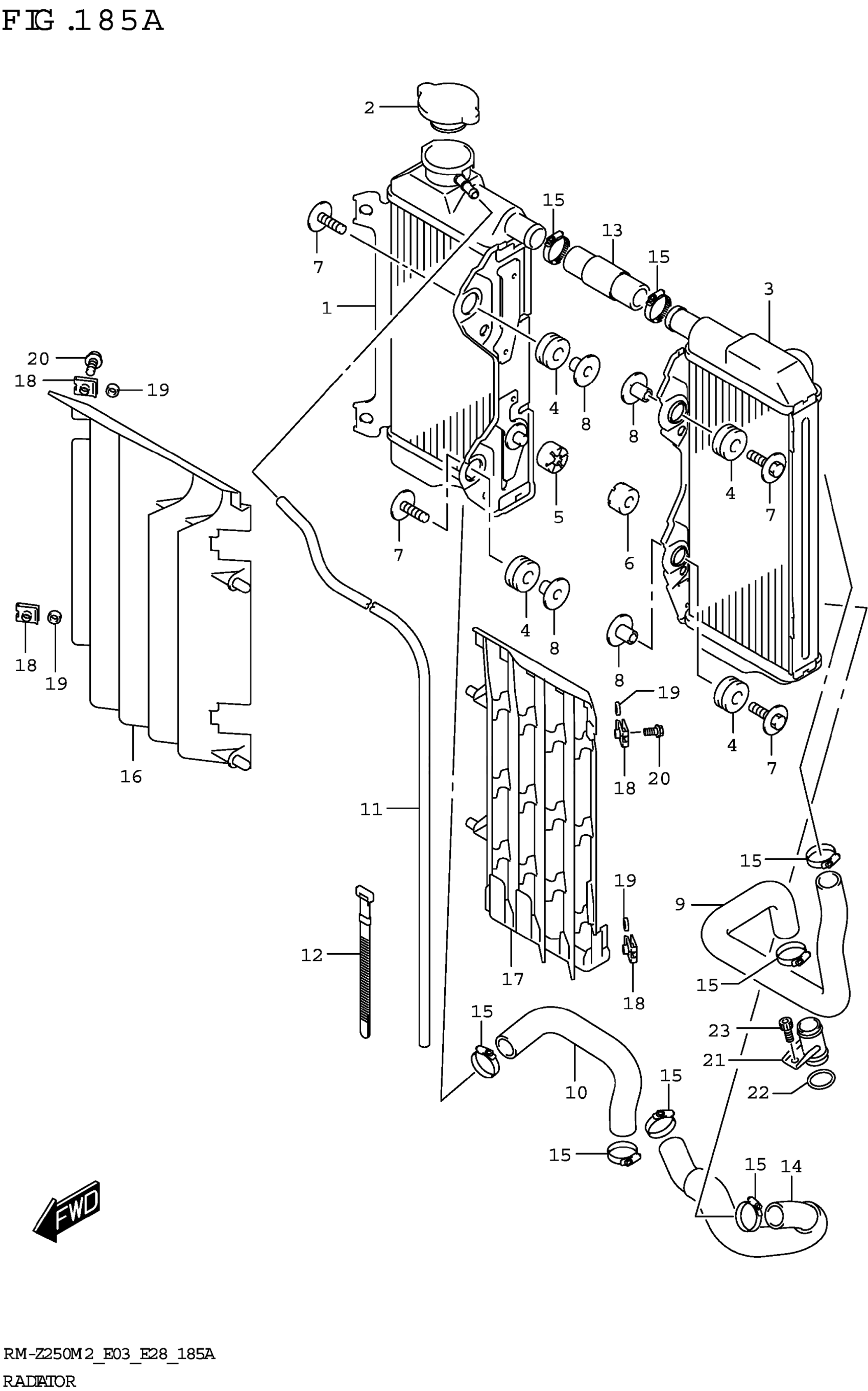

Suzuki RM-Z250M2 (2022) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER,R

17710-37K01

$442.77

2

CAP,RADIATOR (1.1)

17730-14G00

$39.21

3

RADIATOR,WATER LH

17720-46K00

$550.52

4

CUSHION,RADIATOR SUPPORT

17787-19A10

$5.62

5

CUSHION,RDTR

17787-37K00

$7.88

6

CUSHION,RDTR

17787-46K00

$37.78

7

BOLT (6X25)

09116-06186

$2.66

8

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

9

HOSE,RADIATOR INLET

17851-46K00

$28.95

10

HOSE,RADIATOR OUTLET NO.1

17852-46K00

$20.88

11

HOSE (5X8X2000) This part replaces 09351-50801-00A.

09351-50803-00B

$8.21

12

CLAMP (L:125)

09407-14403

$2.24

13

HOSE,RADIATOR JOINT UPPER

17853-37K00

$16.87

14

HOSE,RADIATOR OUTLET NO.2

17854-46K00

$40.87

15

CLAMP

09402-28513

$6.31

16

LOUVER,RADIATOR RH

17831-37K00

$32.87

17

LOUVER,RADIATOR LH

17832-46K00

$39.00

18

.NUT

09148-06017

$2.93

19

.SPACER (6.2X10X2.2)

09180-06129

$1.47

20

BOLT

01547-0610A

$1.47

21

UNION,CONNECTOR HOSE

17890-06G20

$13.59

22

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

23

BOLT

07130-0612A

$2.50
