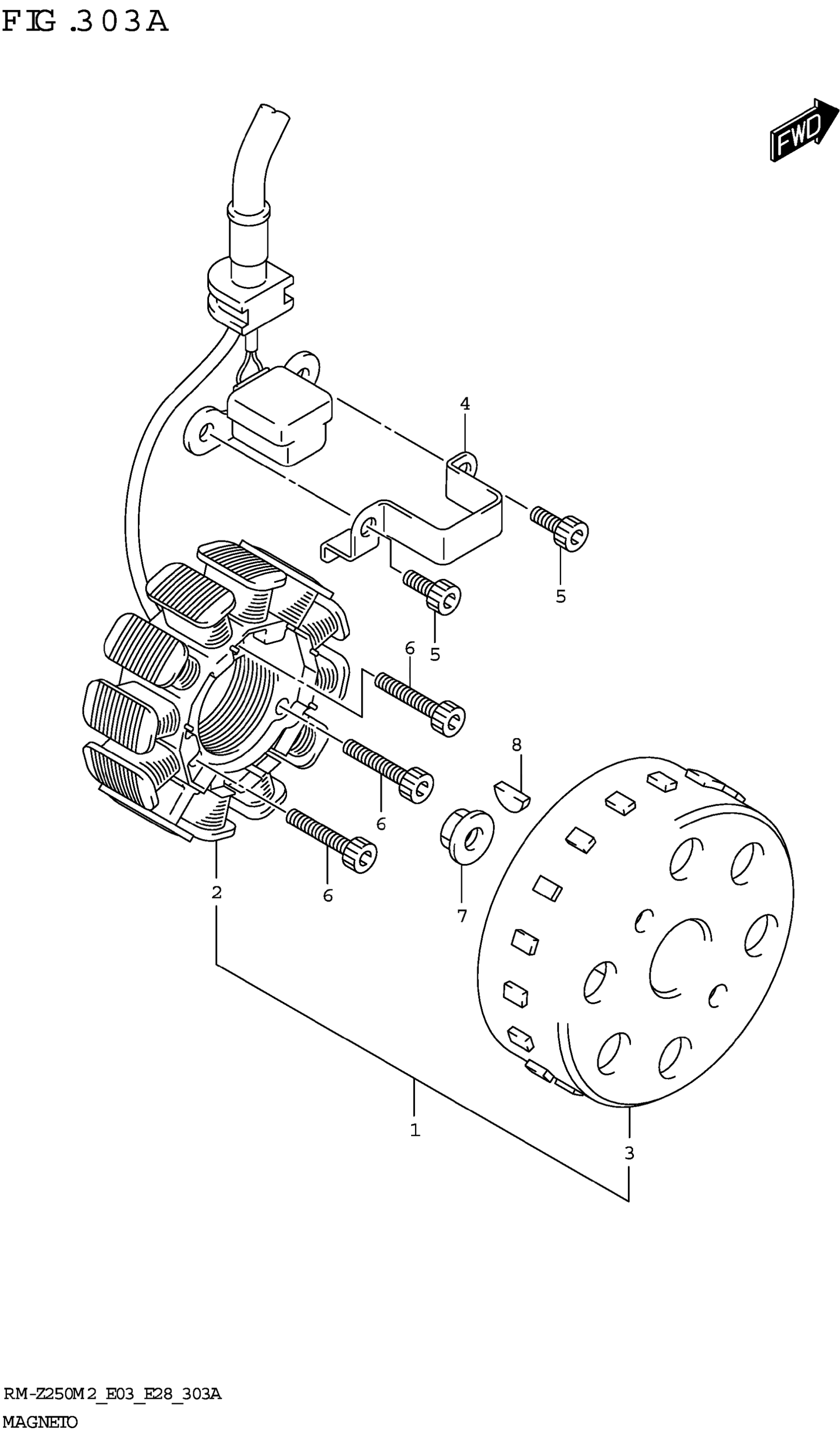

Suzuki RM-Z250M2 (2022) MAGNETO Diagram

#

Description

Price

1

MAGNETO ASSY

32100-46K01

$728.82

2

.STATOR ASSY,MAGNETO

32101-46K01

$373.33

3

.ROTOR ASSY,MAGNETO

32102-49H00

$634.62

4

CLAMP,MAGNETO LEAD

32371-35G00

Unavailable

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0525A

$2.29

7

NUT

08316-1012A

$2.24

8

KEY

08341-31039

$1.89
