2022 Suzuki RM-Z250M2 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

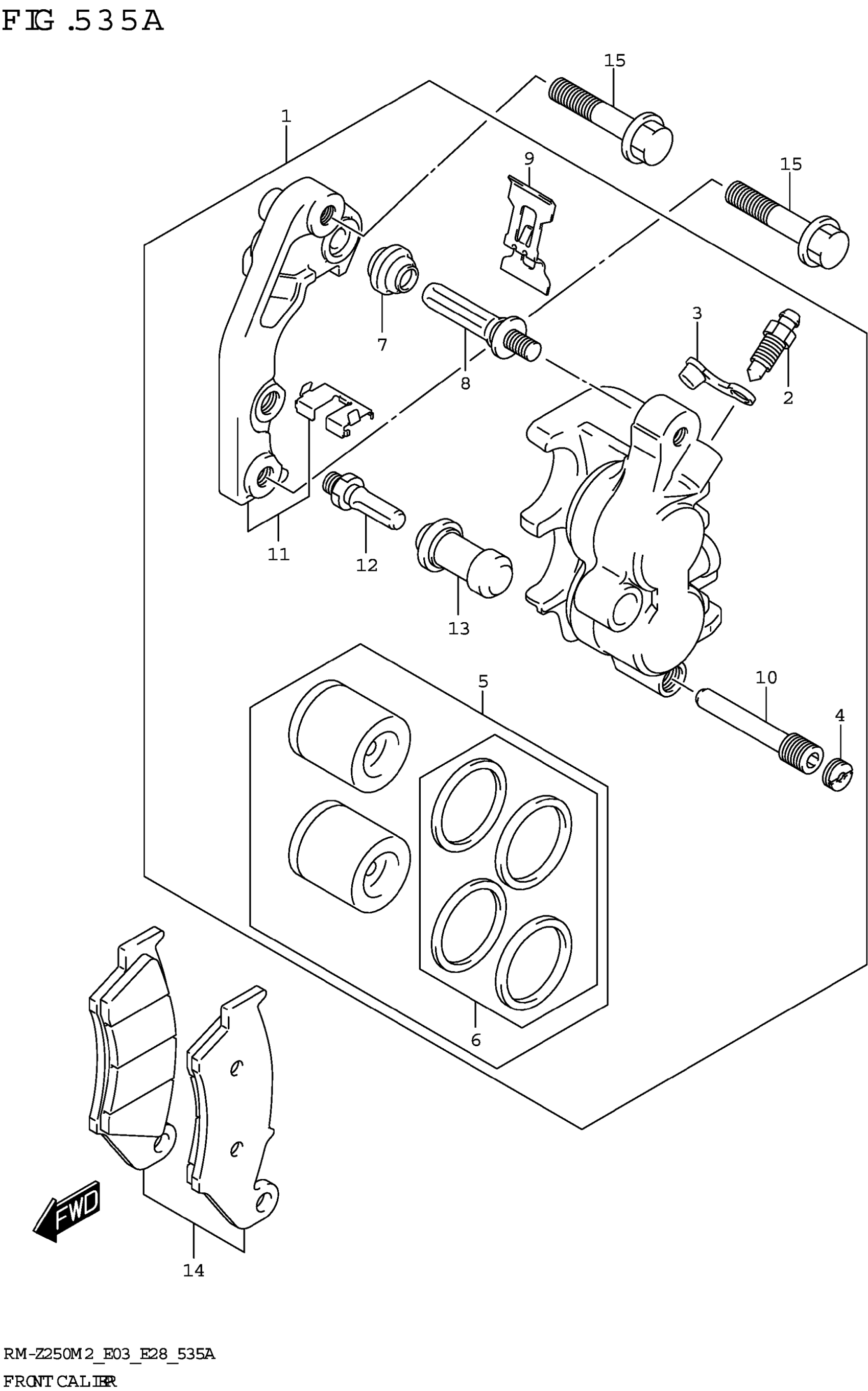

2022 Suzuki RM-Z250M2 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR

59300-37K00-999

1
Out of stock

2

.BLEEDER

59121-01A00

1
Out of stock

3

.CAP,BLEEDER

59122-01A00

1
Out of stock

4

.PLUG,PIN

59146-21E10

1

$6.13

In stock

5

.PISTON SET

59300-28830

1
Out of stock

6

..SEAL SET,PISTON

59300-13820

1

$21.18

In stock

7

.BOOT

59303-14500

1
Out of stock

8

.PIN

59305-27C00

1

$26.52

In stock

9

.SPRING,PAD

59315-13E00

1

$15.12

In stock

10

.PIN,HANGER

59345-13E00

1

$14.31

In stock

11

.BRACKET

59350-37K00

1
Out of stock

12

.BOLT

59382-37F00

1
Out of stock

13

.BOOT

59386-13A00

1
Out of stock

14

PAD SET

59300-37820

1
Out of stock

15

BOLT (8X41)

09103-08403

2
Out of stock
