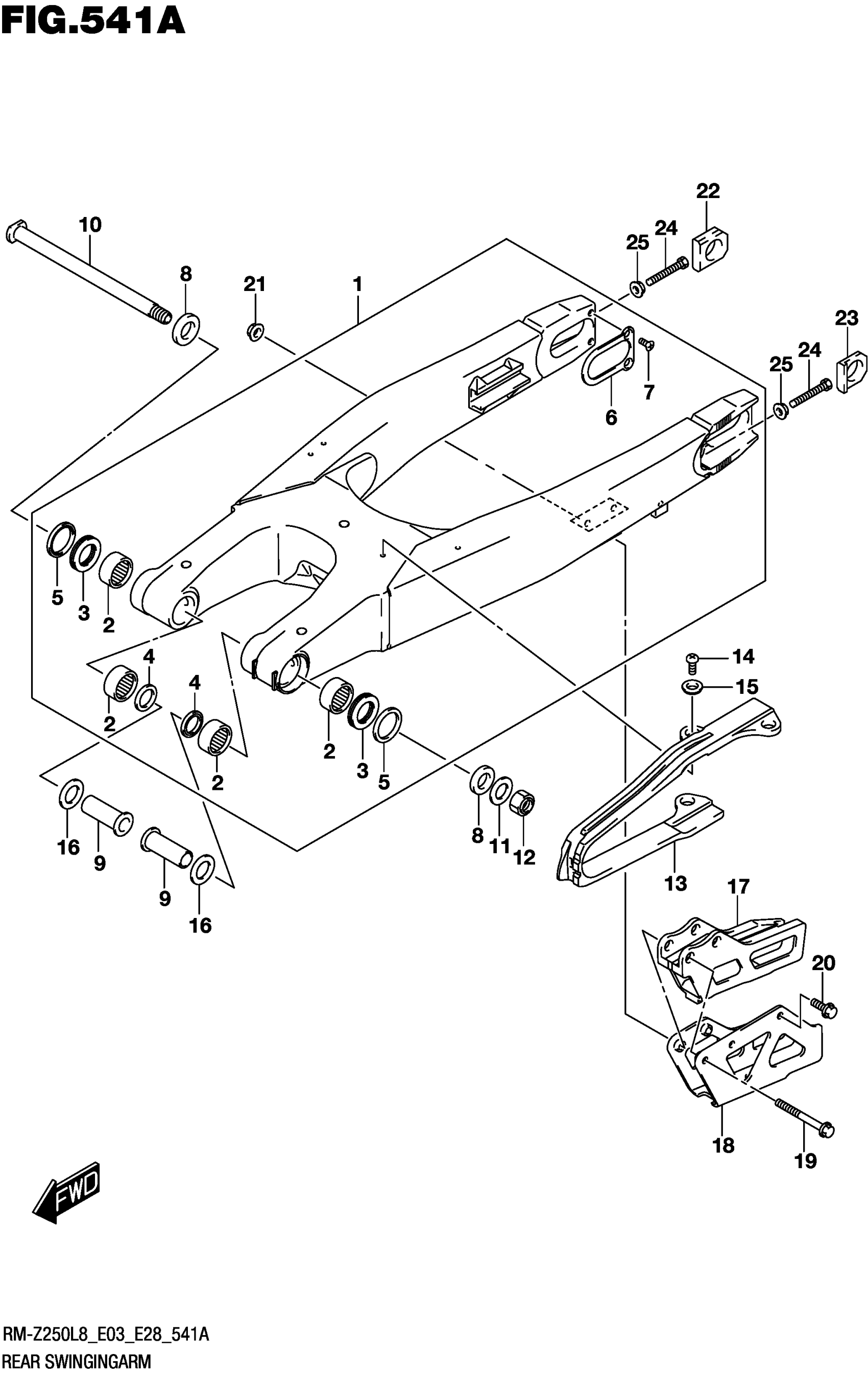

Suzuki RM-Z250L8 (2018) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY

61000-49H20

$1,321.80

2

.BEARING (22X29X15)

09263-22070

$37.28

3

.BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

.SEAL,RR SWGARM PIVOT OUTER (

61262-36E00

$6.52

6

.PLATE, SWGARM REAR This part replaces 61128-28H20.

61128-28H30

$20.00

7

.SCREW (5X10)

09120-05003

$1.76

8

SPACER,RR SWGARM PIVOT,OUTER

61251-36E01

$12.39

9

SPACER,SWGARM PIVOT,INNER

61252-37F01

$49.82

10

SHAFT,RR SWGARM PIVOT

61211-35G00

$95.37

11

WASHER

08322-0116B

$2.95

12

NUT

09159-16007

$11.37

13

BUFFER

61273-35G10

$60.35

14

SCREW

02112-0508A

$1.43

15

WASHER

09169-05022

$3.21

16

WASHER

08211-22365

$6.48

17

GUIDE CHAIN

61341-35G00

$43.99

18

PLATE CHAIN GUIDE

61342-37F00

$72.75

19

BOLT

01547-0645A

$2.43

20

BOLT

01547-0612A

$2.01

21

NUT

08316-1006B

$2.50

22

WASHER,CHAIN ADJUSTER RH

61445-28H11

$54.93

23

WASHER,CHAIN ADJUSTER LH

61446-35G01

$41.32

24

BOLT (8X50)

09100-08287

$2.80

25

NUT

09159-08034

$1.62
