2018 Suzuki RM-Z250L8 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2018 Suzuki RM-Z250L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

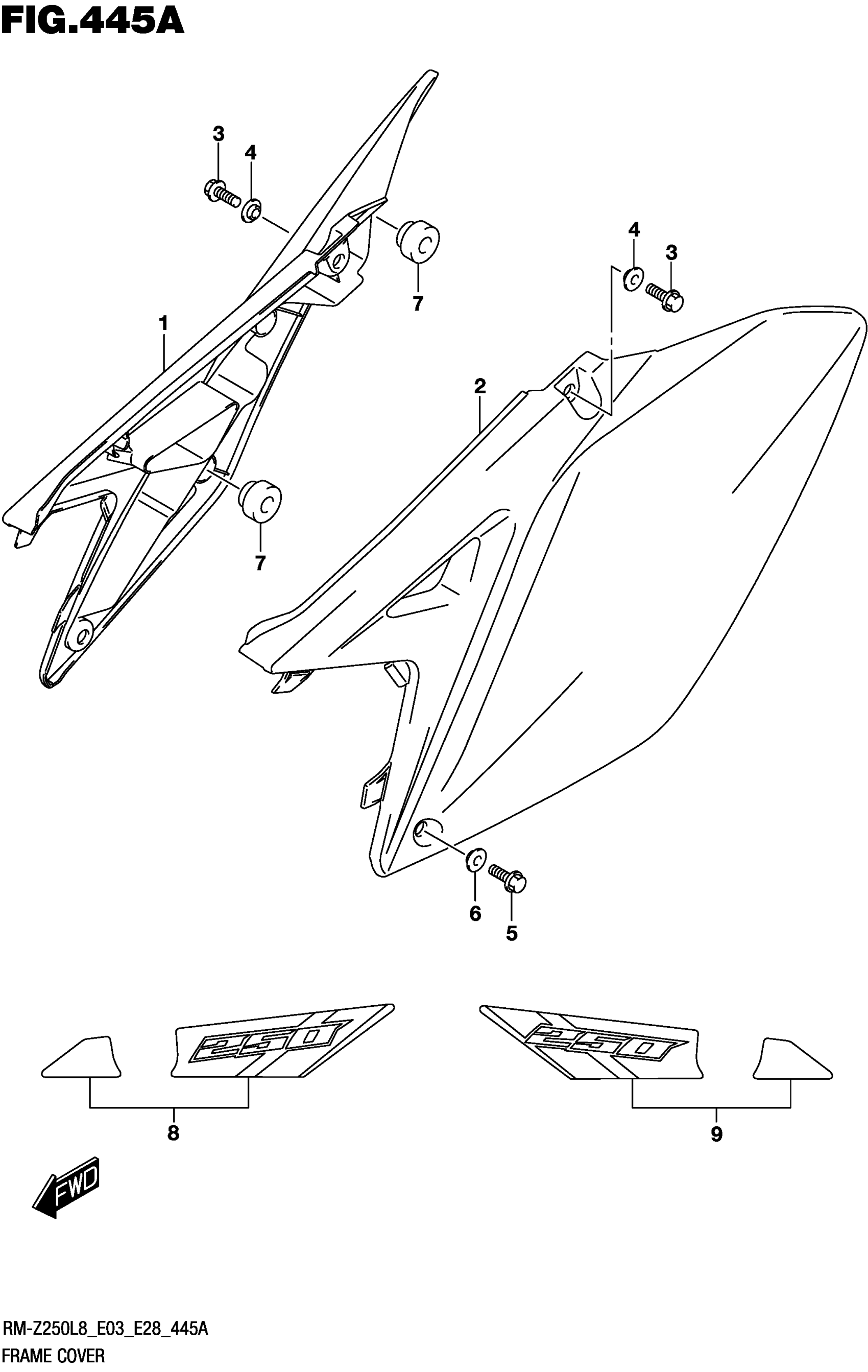

2018 Suzuki RM-Z250L8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

47110-49H00-30H

1
Out of stock

2

COVER

47210-49H01-30H

1
Out of stock

3

BOLT

01547-0620A

2
Out of stock

4

WASHER,FRAME COVER & SEAT

47191-28H00

2
Out of stock

5

BOLT | FRONT

01547-0616A

2
Out of stock

6

WASHER,FRAME COVER & SEAT | FRONT

47191-28H00

2
Out of stock

7

CUSHION (9X26X14)

47161-08G00

2
Out of stock

8

TAPE SET

68135-49H10-BLE

1
Out of stock

9

TAPE SET

68145-49H10-BLE

1
Out of stock
