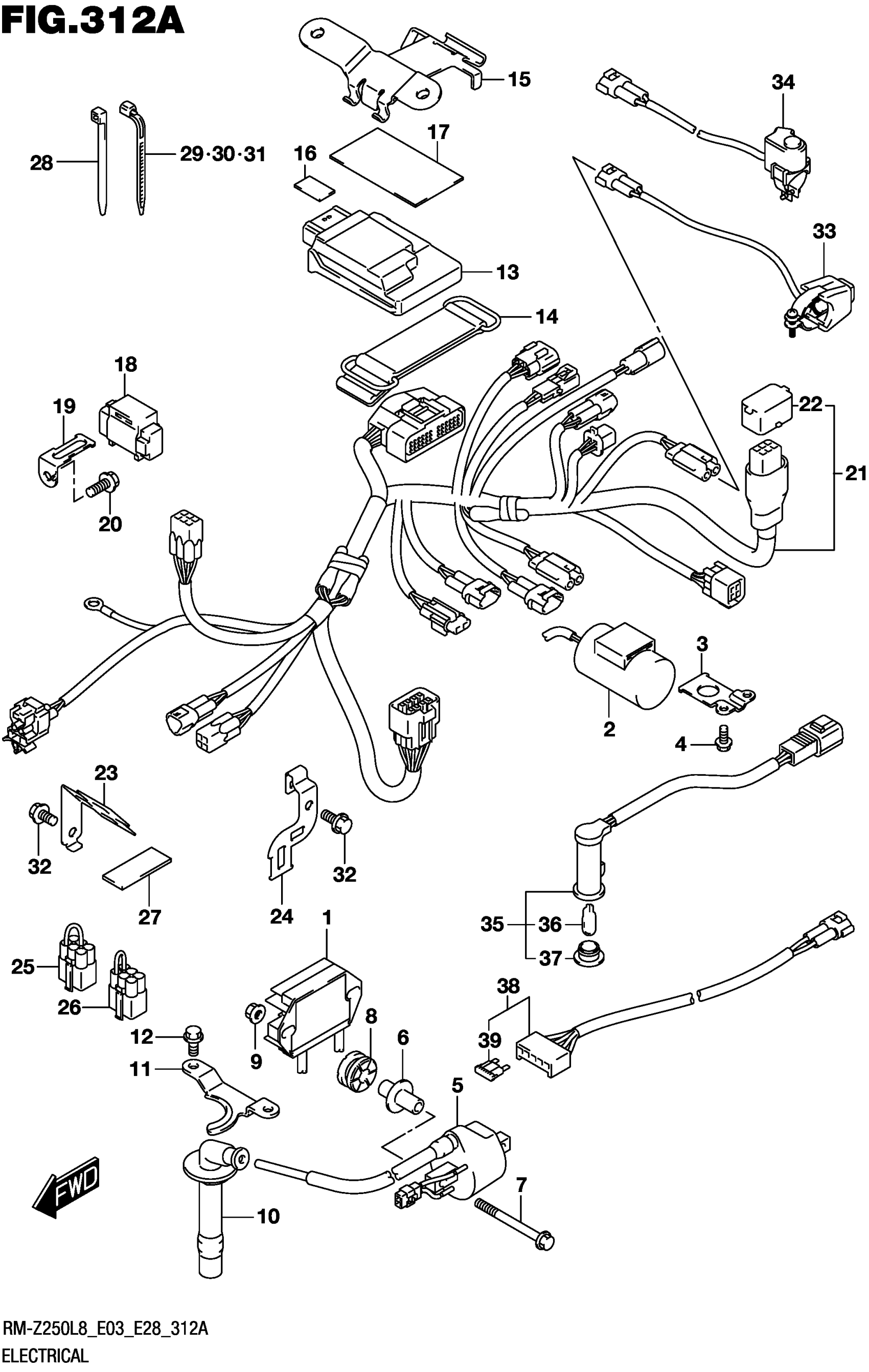

Suzuki RM-Z250L8 (2018) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$186.93

2

CONDENSER ASSY

33640-28H00

$146.91

3

BRACKET

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$3.17

5

COIL ASSY,IGNITION

33410-28H00

$90.59

6

SPACER

33419-49H00

$12.78

7

BOLT (6X60)

09103-06253

$2.80

8

CUSHION

09320-10062

$5.17

9

NUT

08319-3106A

$2.01

10

CAP ASSY,SPARK PLUG

33510-49H00

$64.15

11

RETAINER,IGNITION COIL

33414-49H00

$12.20

12

BOLT

01550-0610B

$2.43

13

CONTROL UNIT

32920-49HE0

$627.87

14

BAND

32942-14301

$10.89

15

BRACKET

32931-49H00

$18.80

16

CUSHION (30X50X3)

33652-36000

$2.87

17

CUSHION (30X50X3) | CUT AS REQUIRED

33652-36000

$2.87

18

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

19

BRACKET

33961-49H00

$7.77

20

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

21

HARNESS,WIRING This part replaces 36610-49H30.

36610-49H31

$382.73

22

CAP,TS This part replaces 36654-46H00.

36654-46H01

$14.23

23

BRACKET

36672-49H00

Unavailable

24

BRACKET

36672-49H20

Unavailable

25

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$14.88

26

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$10.50

27

PROTECTOR

36920-45G00

$3.42

28

CLAMP (L:95)

09407-10403

Unavailable

29

CLAMP (L:95)

09407-11401

$2.87

30

CLAMP (L:125)

09407-14403

$2.24

31

CLAMP (L:165)

09407-18402

$2.21

32

BOLT

01547-0610A

$1.47

33

SWITCH ASSY

37820-49H00

$66.95

34

SWITCH ASSY

37820-28H01

$144.35

35

LAMP ASSY | OPT

36380-28H00

$87.52

36

.BULB (12V3.4W,T10) | OPT

09471-12028

$1.98

37

.LENS (RED) | OPT

36321-28H00

$11.93

38

WIRE,BATTERY | OPT

36890-28H00

$51.95

39

.FUSE (10A) | OPT

09481-10101

$0.68
