2017 Suzuki RM-Z250L7 Gear Shifting Diagram

← All diagrams

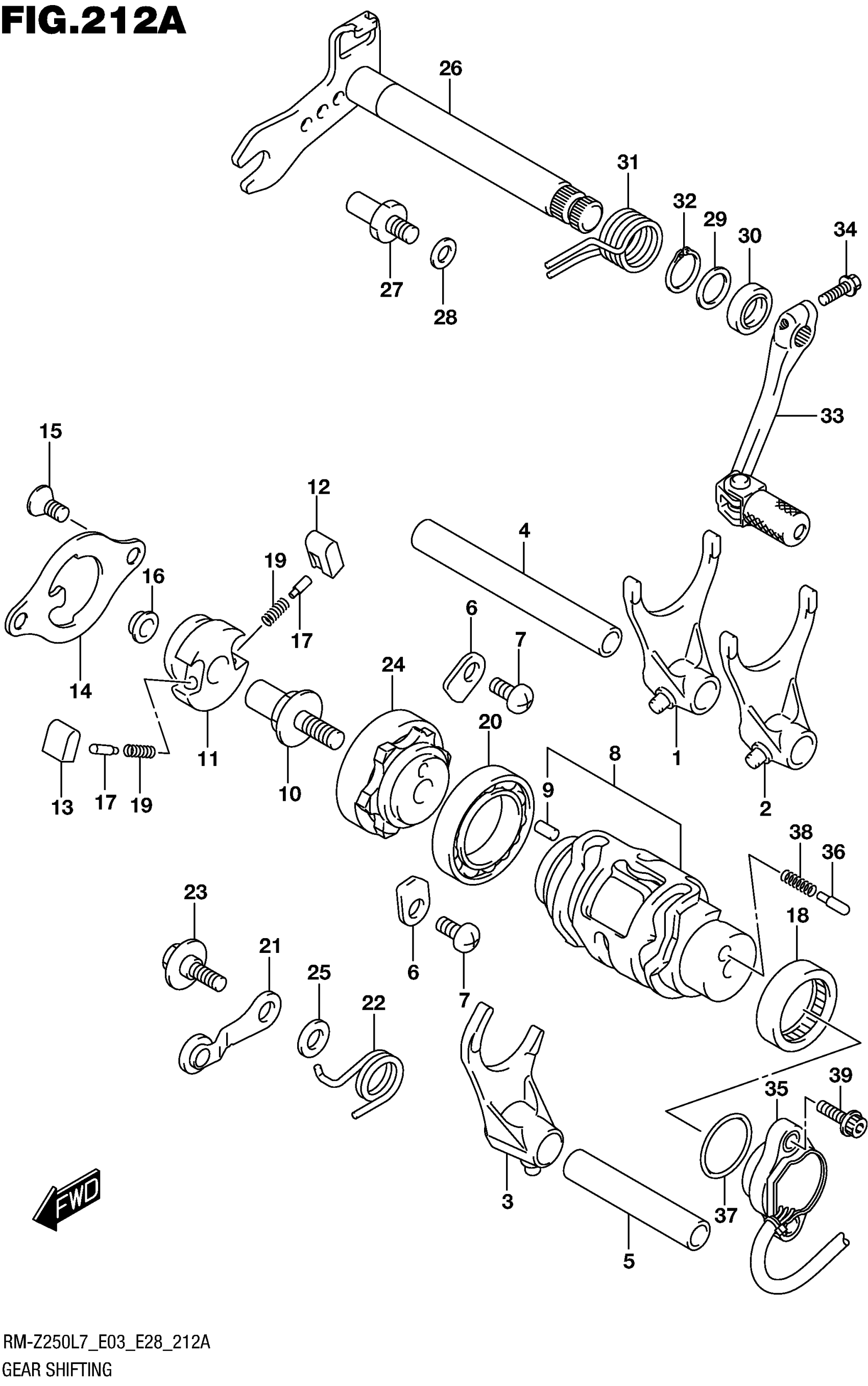

Find the part on the Gear Shifting diagram for your 2017 Suzuki RM-Z250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RM-Z250L7 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-49H00

1

$99.93

In stock

2

FORK, GEAR SHIFT NO.1

25211-49H00

1

$99.93

In stock

3

FORK, GEAR SHIFT NO.3

25231-49H00

1

$96.27

In stock

4

1

$25.08

In stock

5

1

$20.82

In stock

6

RETAINER

24741-21A00

2
Out of stock

7

SCREW (6X12)

09125-06122

2
Out of stock

8

CAM, GEAR SHIFT

25310-49H10

1

$210.10

In stock

9

PIN (4X13.8)

04221-04089

1
Out of stock

10

1

$16.67

In stock

11

1

$73.01

In stock

12

PAWL, GEAR SHIFT NO.1

25323-34201

1

$7.20

In stock

13

PAWL, GEAR SHIFT NO.2

25324-34201

1

$7.41

In stock

14

LIFTER, GEAR SHIFT PAWL

25331-49H00

1
Out of stock

15

SCREW (6X12)

09126-06011

2
Out of stock

16

SPACER (7X10X5)

09180-07014

1

$4.01

In stock

17

PIN

09209-05023

2

$2.85

In stock

18

1

$20.72

In stock

19

SPRING

09440-04003

2

$1.76

In stock

20

BEARING | RH

08140-69050

1

$34.53

In stock

21

1

$16.10

In stock

22

1

$4.58

In stock

23

BOLT (6X14.3)

09111-06041

1

$2.85

In stock

25

WASHER

08211-06121

1

$1.68

In stock

26

1

$81.45

In stock

27

1

$6.75

In stock

28

SHIM (8.8X14X1)

09181-08139

1

$2.07

In stock

29

SHIM (14X20X1)

09181-14139

1
Out of stock

31

1

$6.97

In stock

32

CIRCLIP

08331-3114A

1
Out of stock

33

1

$92.62

In stock

34

BOLT

01547-0620A

1
Out of stock

35

1

$140.85

In stock

36

PIN (5X15.5)

09209-05011

2
Out of stock

37

1

$2.43

In stock

38

SPRING

09440-04010

2
Out of stock

39

BOLT

07120-0516A

2
Out of stock
