2017 Suzuki RM-Z250L7 Frame Cover Diagram

← All diagrams

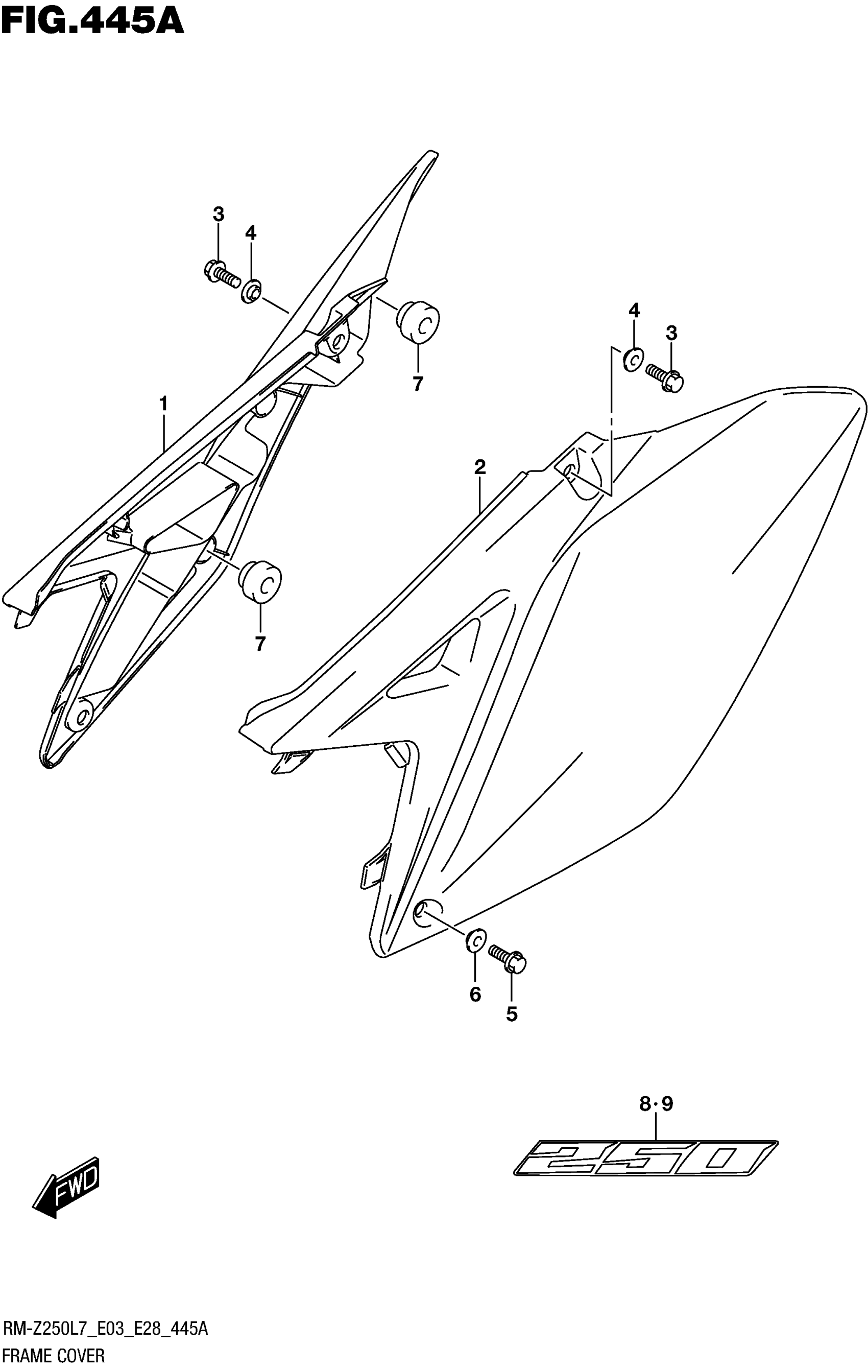

Find the part on the Frame Cover diagram for your 2017 Suzuki RM-Z250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RM-Z250L7 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (YELLOW/BLACK

47110-49H00-GY8

1
Out of stock

2

COVER, FRAME LH (YELLOW/BLACK

47210-49H01-GY8

1
Out of stock

3

BOLT

01547-0620A

2
Out of stock

4

WASHER

47191-28H00

2

$9.84

In stock

5

BOLT | FRONT

01547-0616A

2
Out of stock

6

WASHER | FRONT

47191-28H00

2

$9.84

In stock

7

CUSHION, RH

47161-08G00

2

$10.88

In stock

8

TAPE, FRAME COVER RH

68135-49H00-GY8

1

$18.80

In stock

8

(YELLOW/BLACK)

68135-49H00-GY8

1

$18.80

In stock

9

TAPE, FRAME COVER RH

68145-49H00-GY8

1

$18.80

In stock

9

(YELLOW/BLACK)

68145-49H00-GY8

1

$18.80

In stock
