2016 Suzuki RM-Z250L6 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2016 Suzuki RM-Z250L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

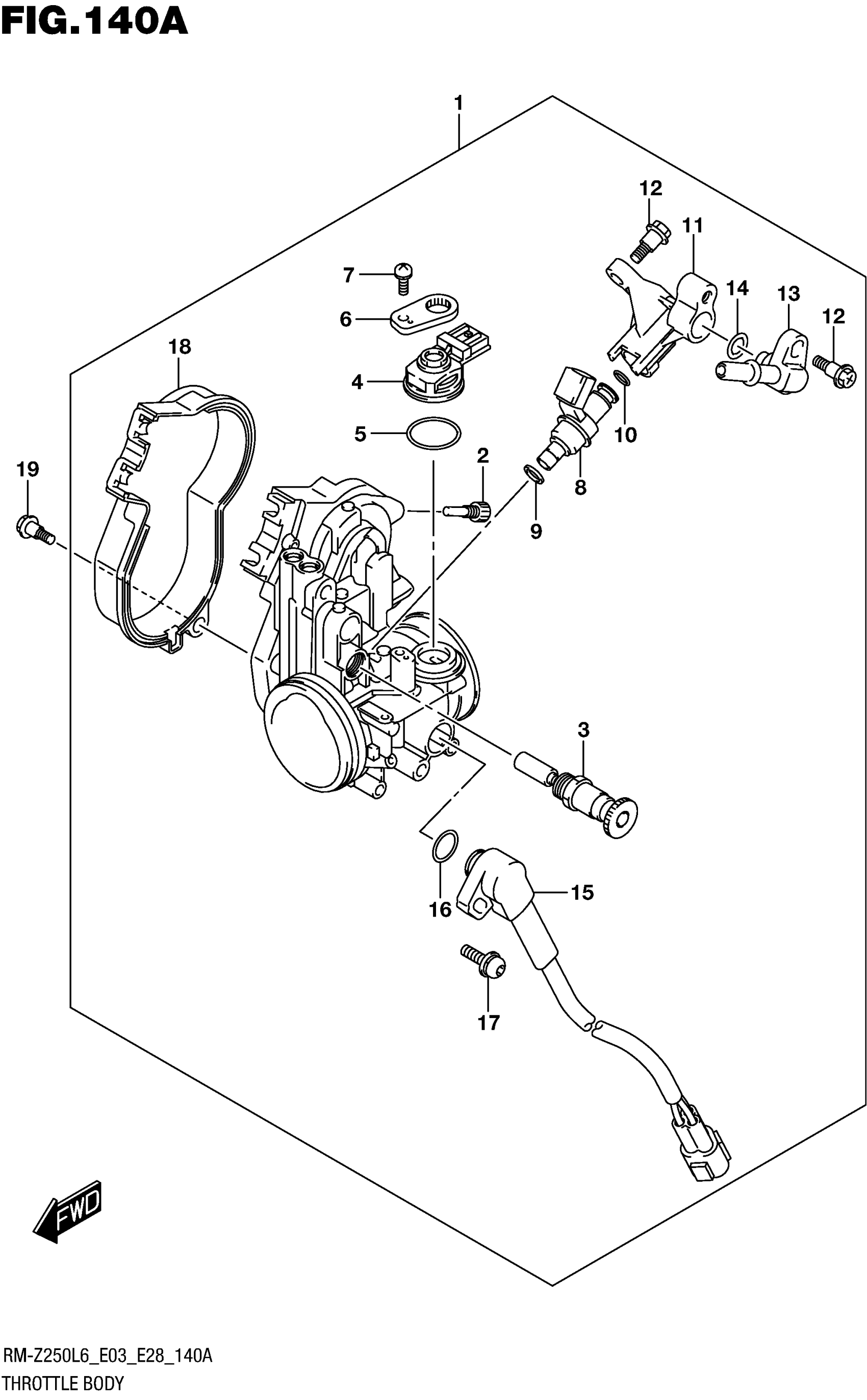

2016 Suzuki RM-Z250L6 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13041-49H20

1
Out of stock

2

.SCREW

13296-28H00

1
Out of stock

3

.STARTER

13410-28H10

1
Out of stock

4

.SENSOR, MAP

15620-05H00

1
Out of stock

5

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

6

.PLATE, STAY

13565-28H10

1
Out of stock

7

.SCREW

13601-15F20

1
Out of stock

8

.INJECTOR ASSY

15710-49H00

1
Out of stock

9

.RING,SEAL

15722-21H00

1
Out of stock

10

.O-RING

15721-21H00

1
Out of stock

11

.FUEL PIPE

13471-49H00

1
Out of stock

12

.SCREW

13452-28H10

3
Out of stock

13

.JOINT

13685-28H00

1
Out of stock

14

.O-RING

15721-24F00

1
Out of stock

15

.SENSOR ASSY, THROTTLE

13580-49H00

1
Out of stock

16

.O RING

13575-40F00

1
Out of stock

17

.SCREW

13605-40F00

1
Out of stock

18

.COVER, THROTTLE

13484-49H00

1
Out of stock

19

SCREW

13601-28H00

2
Out of stock
