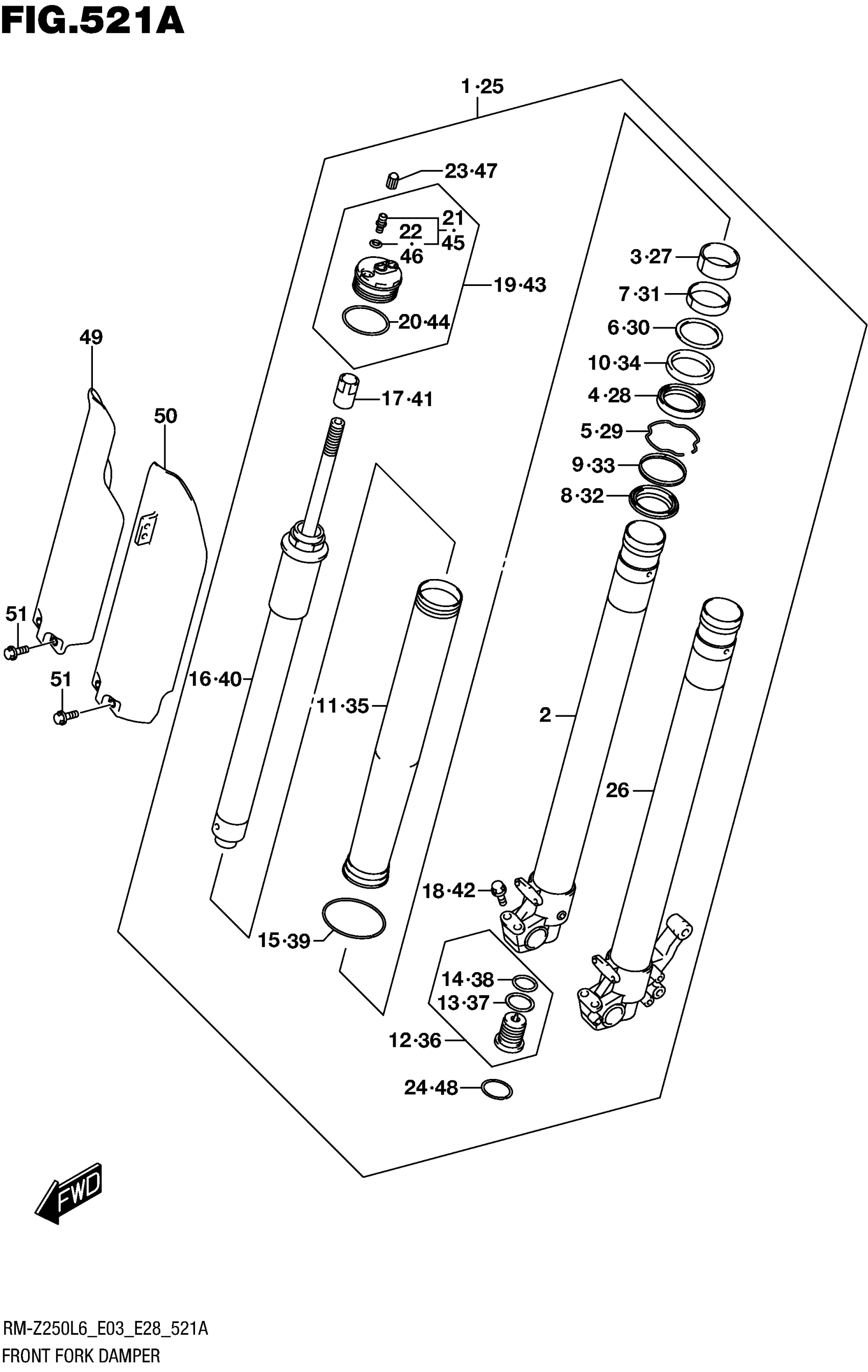

Suzuki RM-Z250L6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-49H40

Unavailable

2

.TUBE, INNER RH

51110-49HE0

$408.75

3

.PISTON

51127-49HE0

$36.98

4

.SEAL, OIL

51153-49HE0

$27.40

5

.RING, OIL SEAL STOPPER

51156-49HE0

$6.40

6

.WASHER

51158-49HE0

$3.62

7

.METAL, SLIDE

51167-49HE0

$24.18

8

.SEAL, DUST

51173-49HE0

$17.93

9

.SCRAPER

51152-49HE0

$18.12

10

.COLLAR

51155-49HE0

$10.87

11

.TUBE, OUTER

51130-49HE0

Unavailable

12

.ADJUSTER

51284-49HE0

Unavailable

13

..GASKET

51148-01B20

$4.12

14

..O RING (D:2.4,ID:17.8)

09280-18004

$4.81

15

RING,SNAP

51211-49H40

$7.30

16

.CYLINDER

51190-49HE0

$727.97

17

..NUT

51814-49H40

$30.73

18

.BOLT

51166-24F60

$5.33

19

.CAP

51351-49HE0

$313.55

20

..O RING This part replaces 51117-48G00.

51117-48G01

$3.00

21

..VALVE ASSY, AIR

51290-49HE0

$10.57

22

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

23

.CAP

51294-20400

$8.32

24

.RING, STOPPER

51285-49HE0

Unavailable

25

DAMPER ASSY, FRONT FORK LH

51104-49H40

$1,770.82

26

.TUBE, INNER LH

51120-49HE0

$408.75

27

.PISTON

51127-49HE0

$36.98

28

.SEAL, OIL

51153-49HE0

$27.40

29

.RING, OIL SEAL STOPPER

51156-49HE0

$6.40

30

.WASHER

51158-49HE0

$3.62

31

.METAL, SLIDE

51167-49HE0

$24.18

32

.SEAL, DUST

51173-49HE0

$17.93

33

.SCRAPER

51152-49HE0

$18.12

34

.COLLAR

51155-49HE0

$10.87

35

.TUBE, OUTER

51130-49HE0

Unavailable

36

.ADJUSTER

51284-49HE0

Unavailable

37

..GASKET

51148-01B20

$4.12

38

..O RING (D:2.4,ID:17.8)

09280-18004

$4.81

39

RING,SNAP

51211-49H40

$7.30

40

.CYLINDER

51190-49HE0

$727.97

41

..NUT

51814-49H40

$30.73

42

.BOLT

51166-24F60

$5.33

43

.CAP

51351-49HE0

$313.55

44

..O RING This part replaces 51117-48G00.

51117-48G01

$3.00

45

..VALVE ASSY, AIR

51290-49HE0

$10.57

46

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

47

.CAP

51294-20400

$8.32

48

.RING, STOPPER

51285-49HE0

Unavailable

49

PROTECTOR,FRONT FORK,R

51501-28H60

$65.53

50

PROTECTOR,FRONT FORK,L

51510-28H70

$116.52

51

BOLT (6X10)

09111-06098

$3.30
