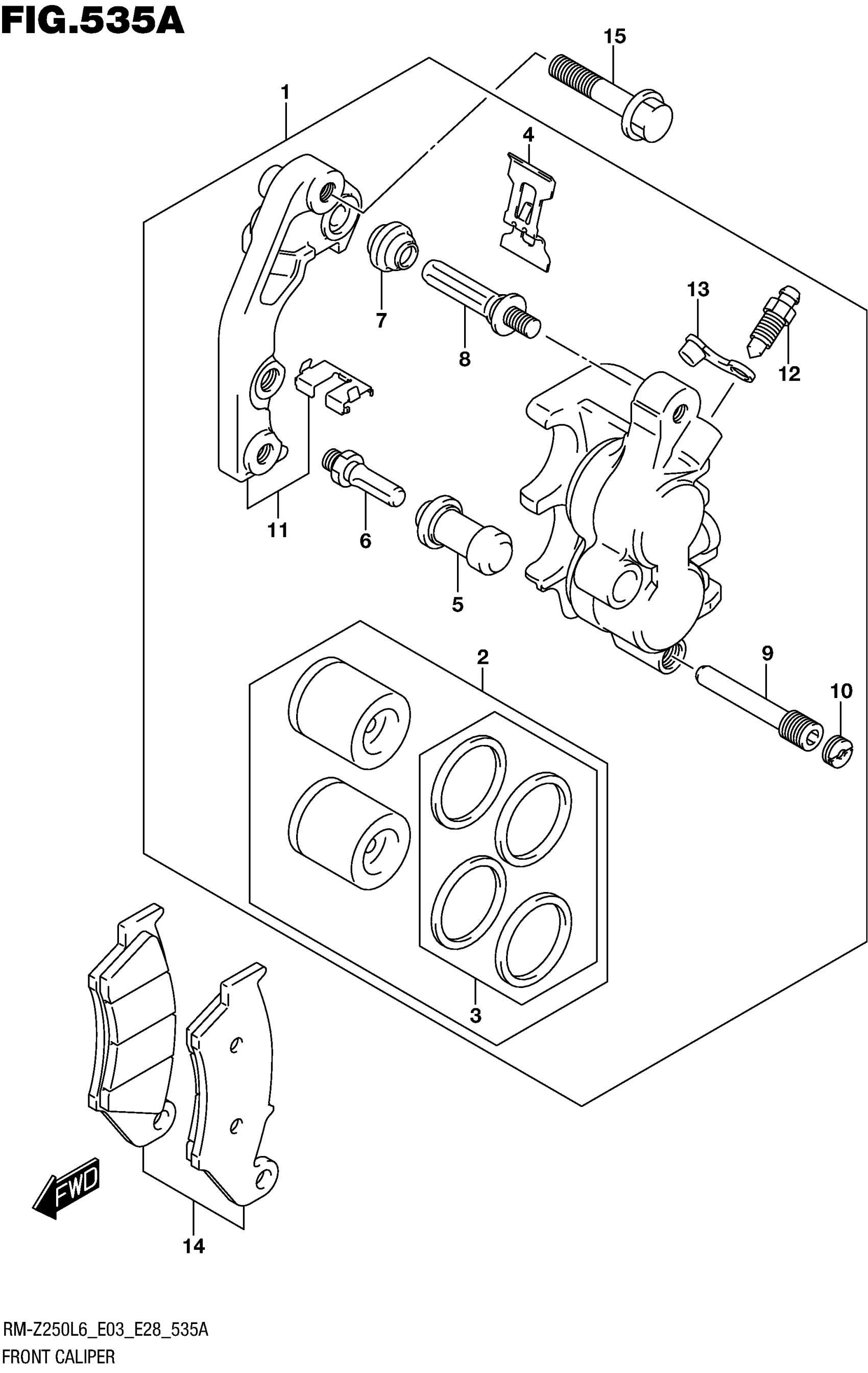

Suzuki RM-Z250L6 (2016) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT

59300-28H00-999

Unavailable

2

.PISTON SET

59300-28830

Unavailable

3

..SEAL SET, PISTON

59300-13820

$21.18

4

.SPRING, PAD

59315-13E00

$14.51

5

.BOOT

59386-13A00

$7.60

6

.BOLT

59382-37F00

$13.93

7

.BOOT

59303-14500

$5.29

8

.PIN

59305-27C00

$26.52

9

.PIN, HANGER

59345-13E00

$13.73

10

.PLUG, PIN

59146-21E10

$5.88

11

.BRACKET

59350-13E00

$152.71

12

.BLEEDER

59121-01A00

$8.35

13

.CAP, BLEEDER

59122-01A00

$4.15

14

PAD SET

59301-36810

$53.37

15

BOLT (8X41)

09103-08403

$3.18
