Description

Price

1

FRAME

41100-49H30

$3,233.68

2

RAIL, SEAT

41200-49H30

Unavailable

3

BOLT, SEAT RAIL UPPER

41311-28H20

$21.57

4

NUT

09159-08146

$8.07

5

BOLT (8X20)

09103-08426

$5.87

6

BRACKET, ENGINE MOUNT FRONT

41911-49H20

$9.48

7

BOLT (8X80)

09103-08016

$32.38

8

NUT

09159-08146

$8.07

9

BRACKET, ENG MOUNT UPPER RH

41931-49H20

$14.07

10

BRACKET, ENG MOUNT UPPER LH

41940-49H30

$18.32

11

BOLT (8X40)

09103-08523

$4.62

12

PROTECTOR, FRONT RH

42520-10H10

$33.57

13

PROTECTOR, FRONT LH

42530-49H10

$30.02

14

BOLT (6X16)

09116-06200

$4.03

15

ROLLER, CHAIN UPPER

43911-01B10

$22.07

16

SPACER (8.5X14X28)

09180-08206

$7.35

17

SHIM (8X18X0.5)

09181-08186

$2.06

18

BOLT (8X45)

09103-08207

$2.59

19

ROLLER, CHAIN LOWER

43910-37F00

$77.40

20

SHIM (8X12X1)

09181-08111

$2.01

21

NUT

08319-2108A

$2.21

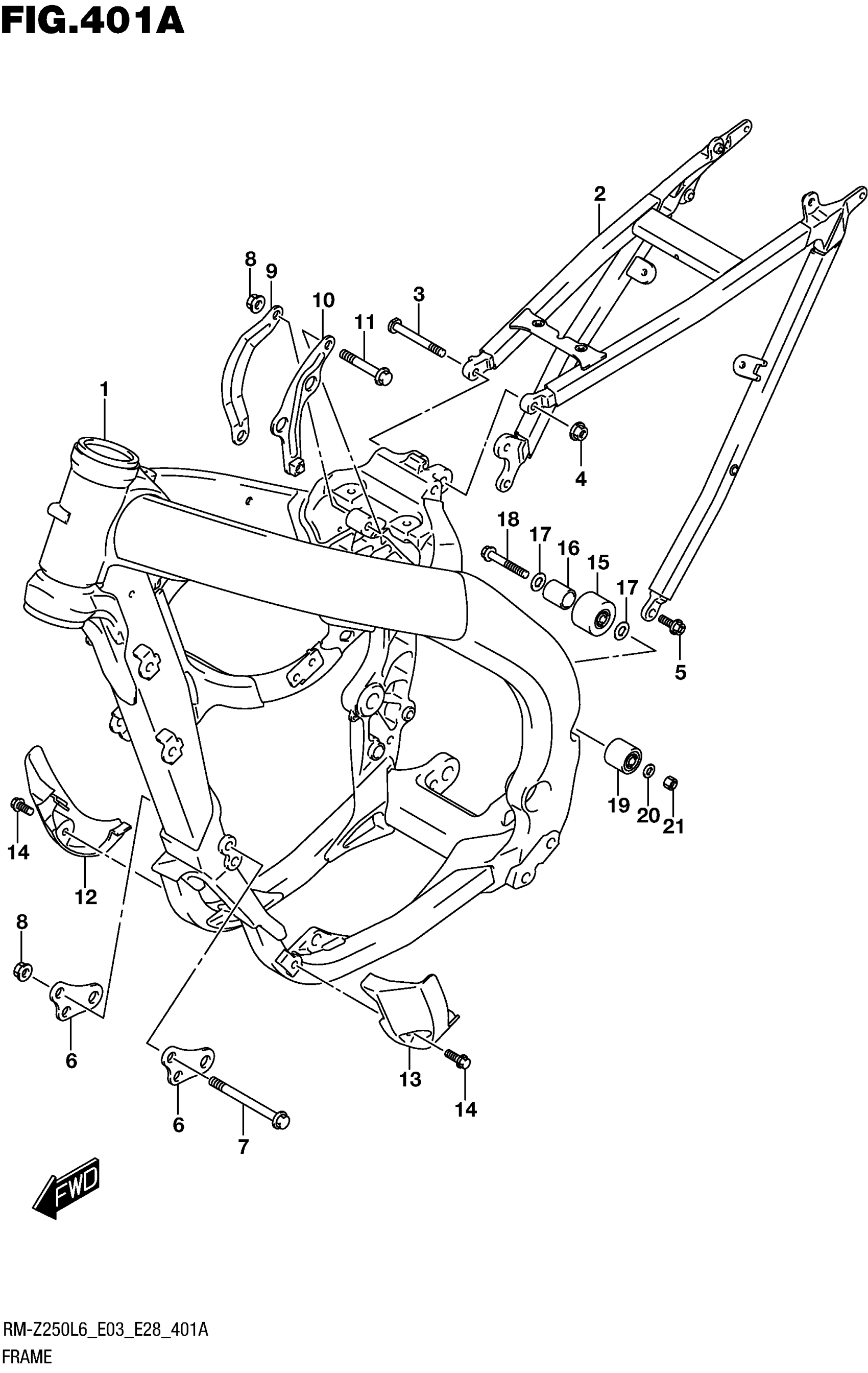

Suzuki RM-Z250L6 (2016) FRAME Diagram
