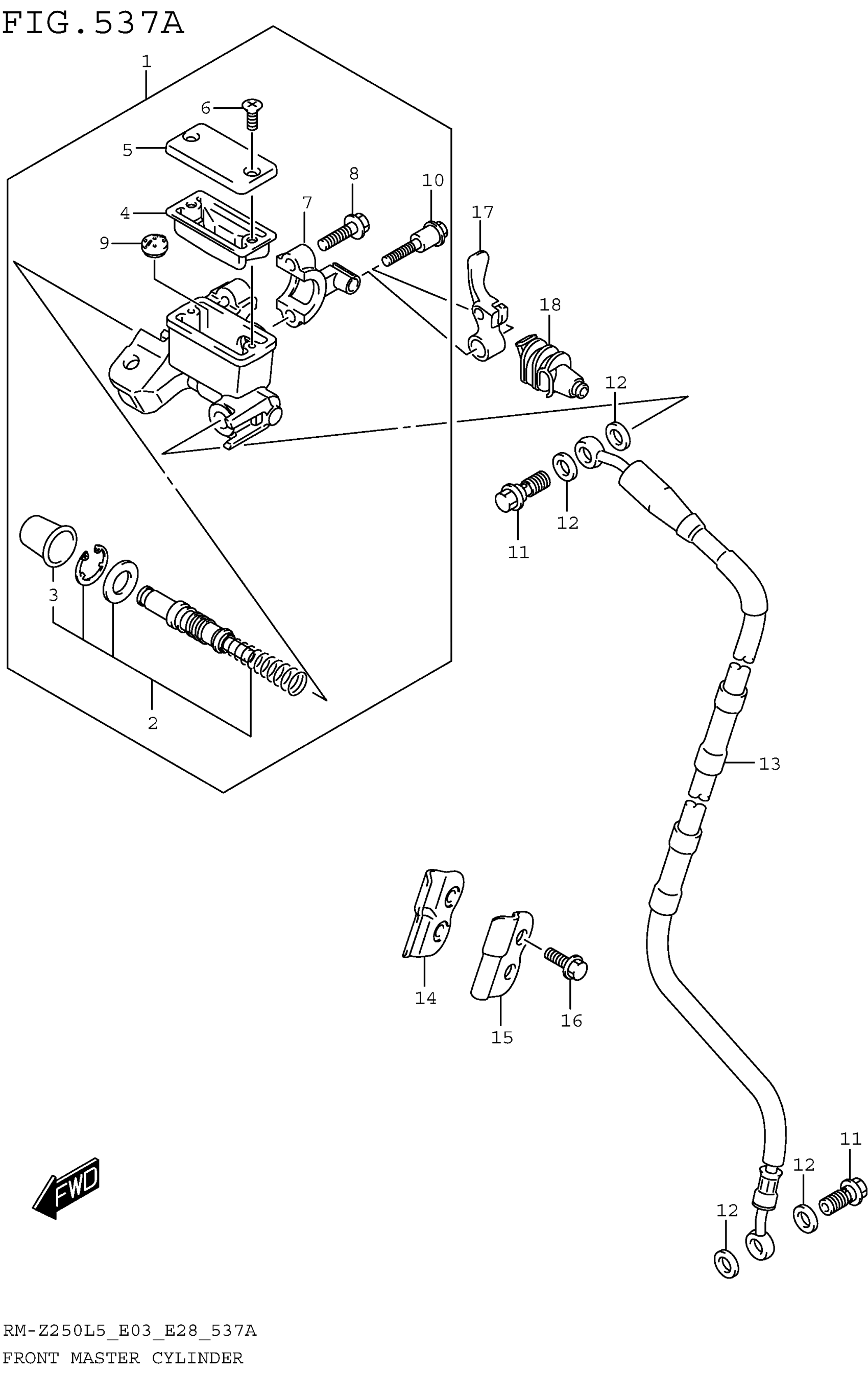

Suzuki RM-Z250L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-28H00

$261.92

2

PISTON & CUP SET

59600-37810

$66.23

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-14500

$9.53

5

CAP

59669-27C01

$26.32

6

SCREW

69689-49300

$1.81

7

HOLDER

59671-28H00

$38.45

8

BOLT

59675-06F10

$5.27

9

SEPARATOR

59748-36E00

$10.58

10

BOLT, MASTER CYLINDER HOLDER

57517-28H00

$13.50

11

UNION

09360-10065

$9.70

12

WASHER (10X15X1.5)

09161-10009

$1.83

13

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

$224.40

14

CLAMP, FR BRAKE HOSE INNER

59260-28H20

$17.75

15

CLAMP,FR BRAKE HOSE

59271-28H10

$8.01

16

BOLT

01547-0616A

$2.01

17

LEVER, MASTER CYLINDER HOLDER

57153-28H01

$12.64

18

COVER, HOLDER LEVER

57516-28H10

$11.75
