2014 Suzuki RM-Z250L4 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2014 Suzuki RM-Z250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

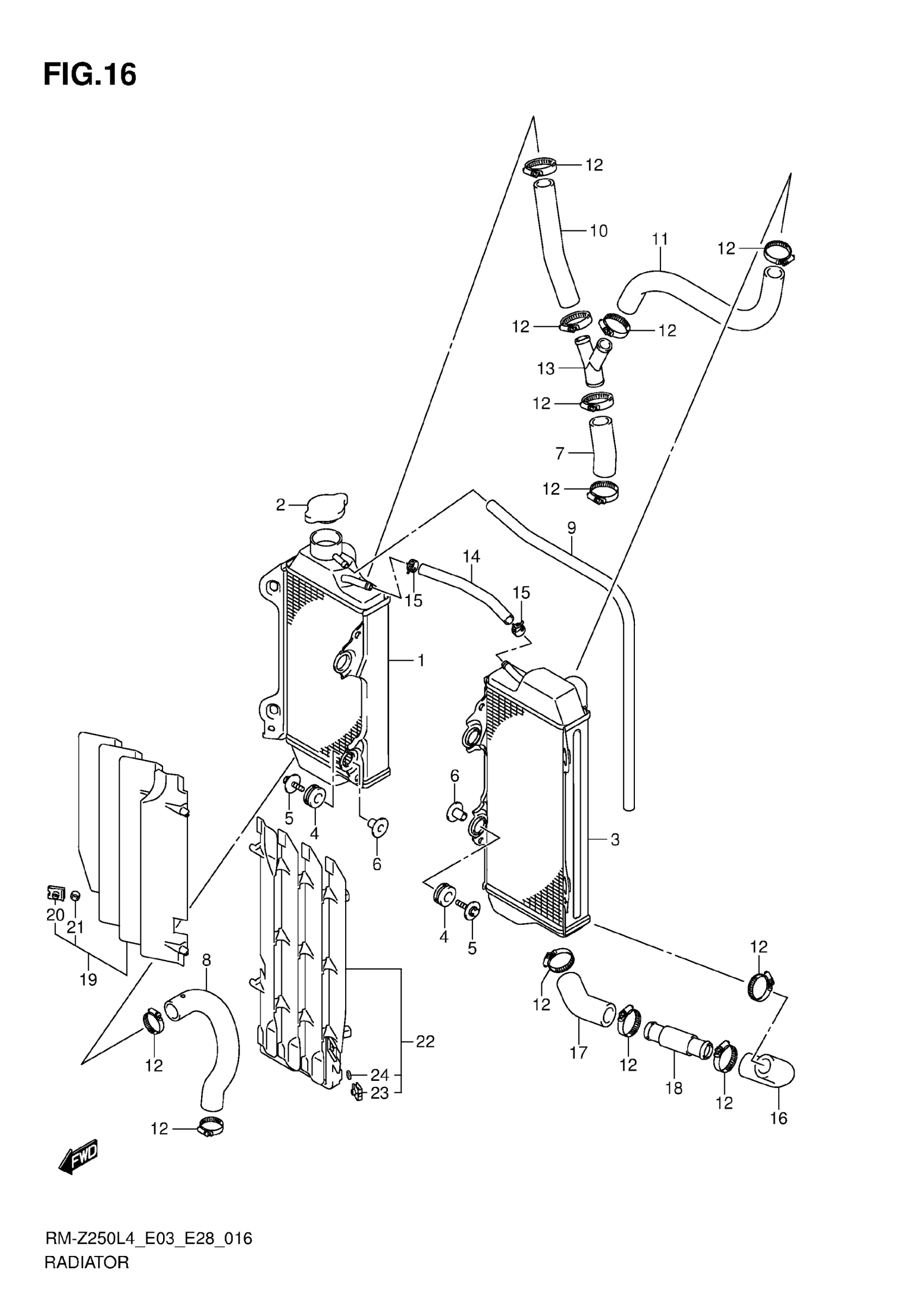

2014 Suzuki RM-Z250L4 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, RH

17710-49H10

1
Out of stock

2

CAP, RADIATOR (1.1)

17730-08J00

1
Out of stock

3

RADIATOR, LH

17720-49H10

1
Out of stock

4

4

$3.55

In stock

5

BOLT (6X25)

09116-06186

4
Out of stock

6

4

$5.29

In stock

7

HOSE, INLET NO.1

17851-49H10

1
Out of stock

8

HOSE, OUTLET NO.1

17852-49H10

1
Out of stock

9

HOSE (5X8X2000) | L:1000->700 This part replaces 09351-50803-00A.

09351-50803-00B

1
Out of stock

10

HOSE, INLET NO.2

17853-49H10

1
Out of stock

11

HOSE, INLET NO.3

17854-49H20

1
Out of stock

12

CLAMP

09402-28513

12

$6.80

In stock

13

JOINT, RADIATOR HOSE

17856-10H00

1
Out of stock

14

HOSE, BYPASS

17855-35G00

1
Out of stock

15

CLIP

09401-11415

2
Out of stock

16

HOSE, OUTLET NO.2

17855-49H10

1
Out of stock

17

HOSE, OUTLET NO.3

17858-49H00

1
Out of stock

18

PIPE, OUTLET

17859-49H00

1
Out of stock

19

LOUVER, RADIATOR RH

17801-49H00

1
Out of stock

20

.NUT

09148-06017

1

$3.16

In stock

21

.SPACER (6.2X10X2.2)

09180-06129

1
Out of stock

22

LOUVER, RADIATOR LH

17802-49H00

1
Out of stock

23

.NUT

09148-06017

1

$3.16

In stock

24

.SPACER (6.2X10X2.2)

09180-06129

1
Out of stock
