Description

Price

1

CLEANER ASSY, AIR

13700-49H20

Unavailable

2

FILTER ASSY

13780-10H00

$103.85

3

BASE, FILTER

13790-37F20

$25.08

4

HOLDER, FILTER

13791-35G00

$14.51

5

.BOLT,WING

13831-37F20

$7.71

6

WASHER

13792-13A01

$4.15

7

TUBE, OUTLET

13881-49H10

Unavailable

8

CLAMP

13826-28H00

$8.73

9

NUT

08310-00057

$1.89

10

.MUD GUARD

13738-36E10

$29.62

11

.SCREW

13831-35F00

$2.51

12

PLATE

13795-37F20

$19.97

13

GASKET

13796-37F20

$15.50

14

.NUT

09148-06017

$3.03

15

BOLT

01547-0612A

$2.09

16

.SPACER (6.2X10X2.2)

09180-06129

$1.47

17

SENSOR, AIR TEMP

13650-14G10

$49.81

18

O RING

13655-14G10

$11.18

19

BRACKET, AIR TEMP SENSOR

13652-28H00

$14.00

20

SCREW

02112-0516B

$2.01

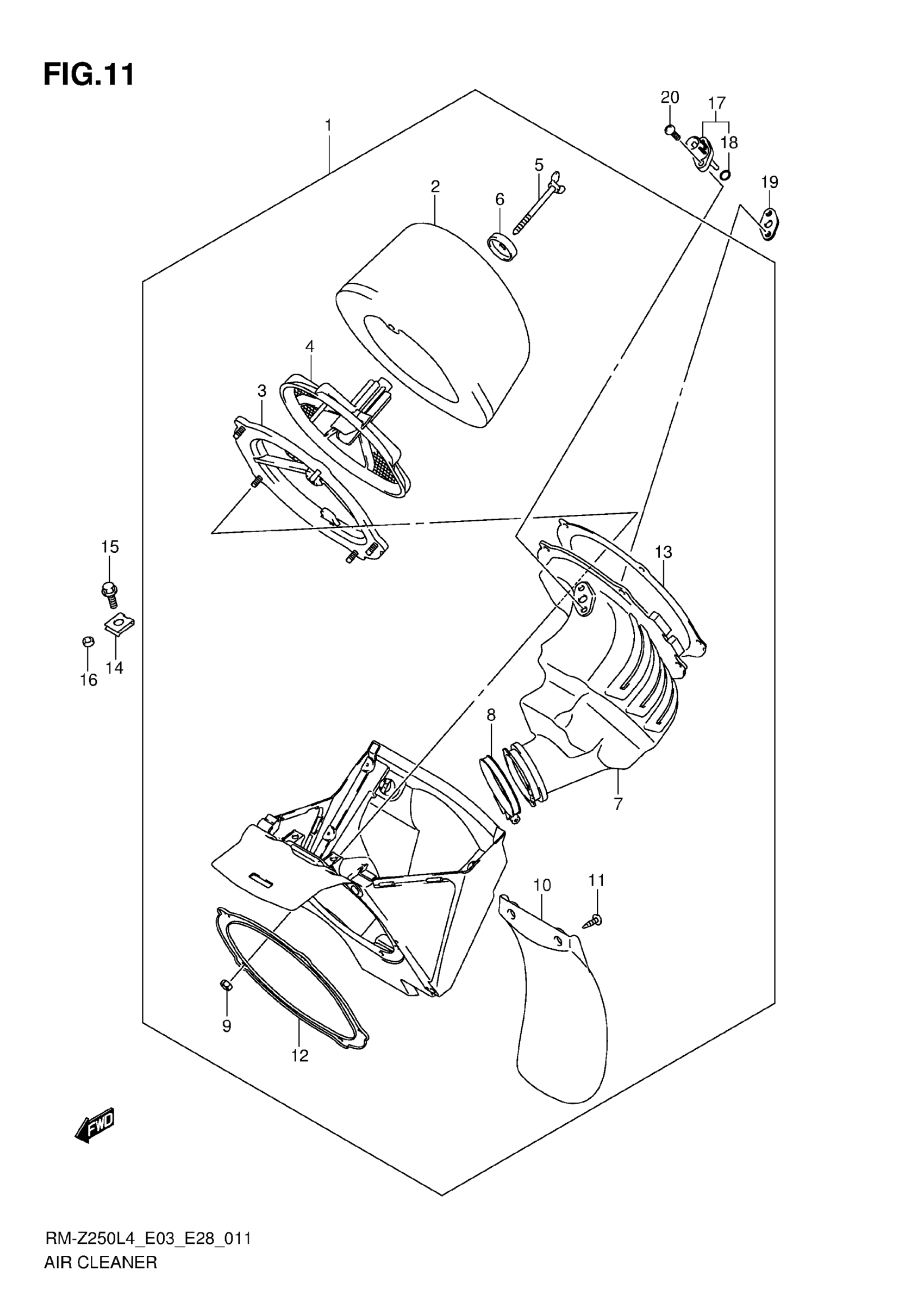

Suzuki RM-Z250L4 (2014) AIR CLEANER Diagram
