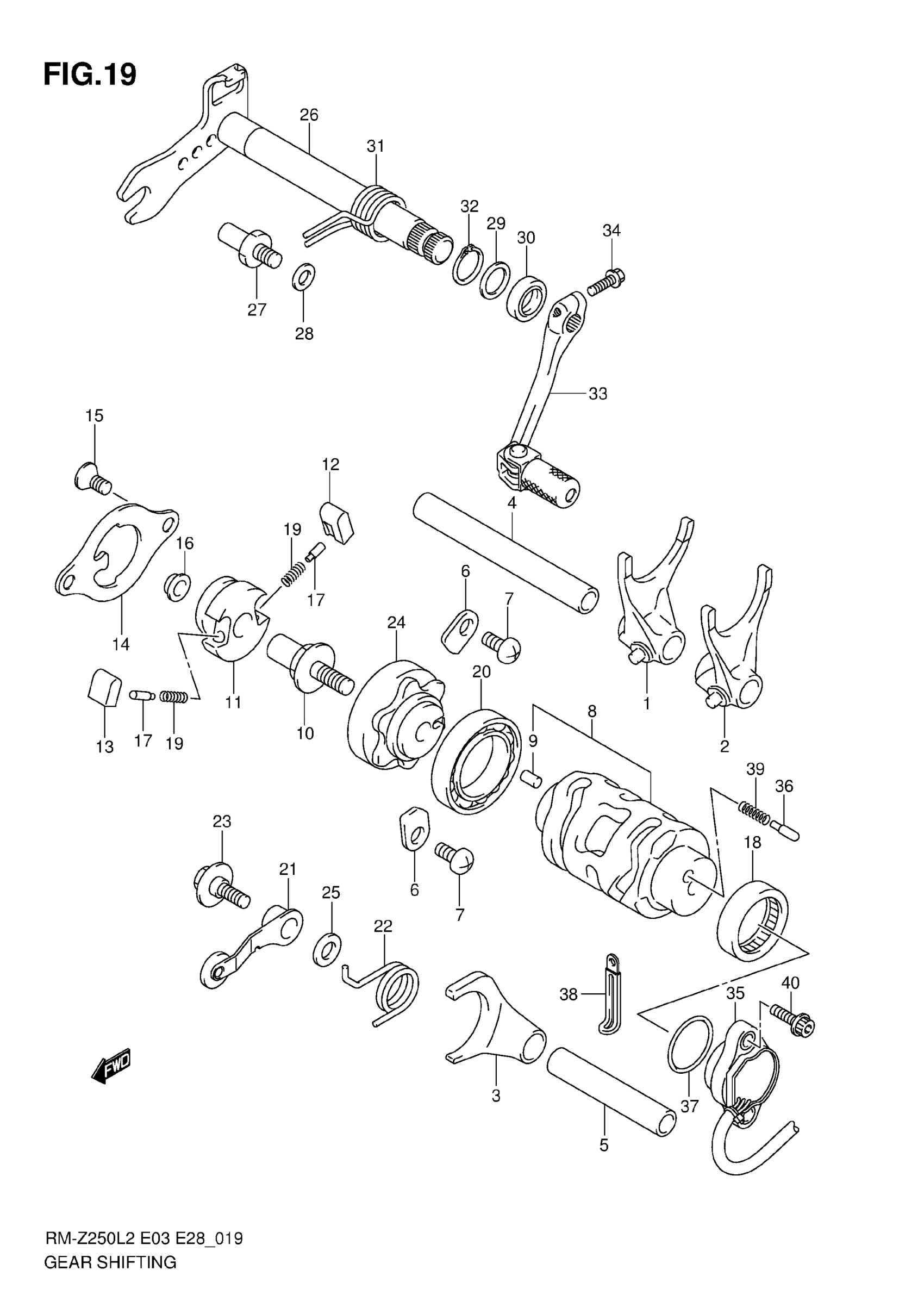

Find the part on the Gear Shifting diagram for your 2013 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki RM-Z250L2 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1

25211-10H10

1

$100.46

In stock

2

FORK, GEAR SHIFT NO.2

25221-10H10

1

$100.46

In stock

3

FORK, GEAR SHIFT NO.3

25231-10H10

1

$102.35

In stock

4

1

$25.08

In stock

5

1

$20.82

In stock

6

RETAINER, SHIFT CAM BEARING

24741-21A00

2
Out of stock

7

SCREW (6X12)

09125-06122

2
Out of stock

8

CAM, GEAR SHIFT

25310-49H00

1

$220.83

In stock

9

PIN (4X13.8)

04221-04089

1
Out of stock

10

1

$16.67

In stock

11

SHIFTER, GEAR SHIFT

25322-28H00

1

$73.01

In stock

12

PAWL, GEAR SHIFT NO.1

25323-34201

1

$7.20

In stock

13

PAWL, GEAR SHIFT NO.2

25324-34201

1

$7.41

In stock

14

LIFTER, GEAR SHIFT PAWL

25331-49H00

1
Out of stock

15

SCREW (6X12)

09126-06011

2
Out of stock

16

SPACER (7X10X5)

09180-07014

11

$4.01

In stock

17

PIN

09209-05023

2

$2.85

In stock

18

1

$20.72

In stock

19

SPRING

09440-04003

2

$1.76

In stock

20

BEARING | RH

08140-69050

1

$34.53

In stock

21

1

$23.73

In stock

22

SPRING, GEAR SHIFT CAM

25355-49H00

1
Out of stock

23

BOLT, STOPPER

25357-29F10

1
Out of stock

24

1

$86.52

In stock

25

WASHER

08211-06121

1

$1.68

In stock

26

1

$79.33

In stock

27

1

$6.75

In stock

28

SHIM (8.8X14X1)

09181-08139

1

$2.07

In stock

29

SHIM (14X20X1)

09181-14139

1
Out of stock

31

SPRING

09444-20011

1

$7.75

In stock

32

CIRCLIP

08331-3114A

1
Out of stock

33

1

$92.62

In stock

34

BOLT

01547-06207

1
Out of stock

35

1

$140.85

In stock

36

PIN

09209-05011

2
Out of stock

37

1

$2.43

In stock

38

CLAMP (L:45)

09404-06429

1
Out of stock

39

SPRING

09440-04010

2
Out of stock

40

BOLT

07120-0516A

2
Out of stock
