2013 Suzuki RM-Z250L2 Footrest Diagram

← All diagrams

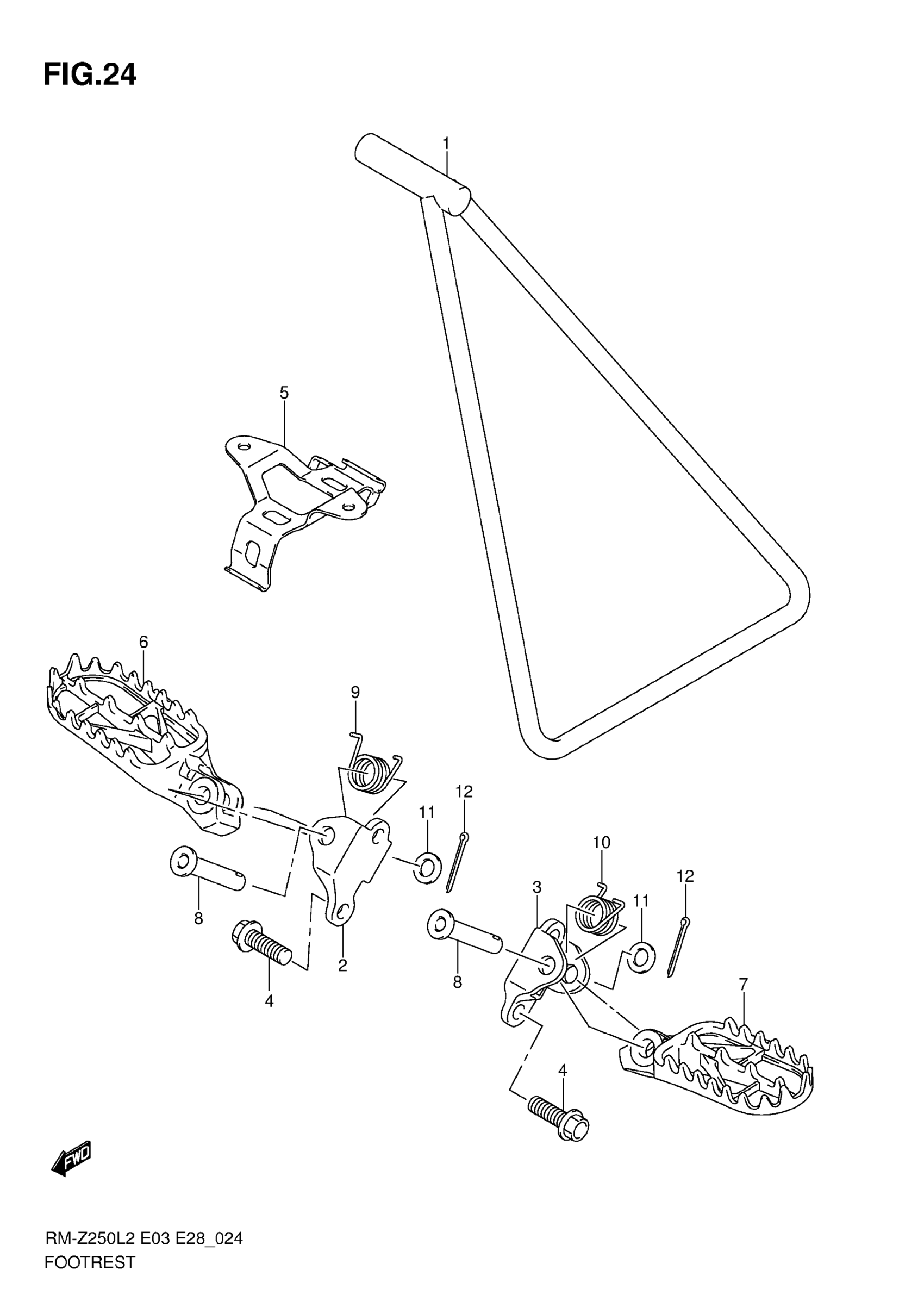

Find the part on the Footrest diagram for your 2013 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki RM-Z250L2 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND

42310-28H00

1
Out of stock

2

BRACKET, FOOTREST RH

41855-28H10

1
Out of stock

3

BRACKET, FOOTREST LH

41865-28H10

1
Out of stock

4

BOLT (10X25)

09103-10415

4
Out of stock

5

BRACKET, ECU

41347-49H00

1
Out of stock

6

FOOTREST, RH

43551-28H10

1
Out of stock

7

FOOTREST, LH

43561-28H10

1
Out of stock

8

PIN

09200-10019

2

$6.61

In stock

9

SPRING | RH

09448-21012

1
Out of stock

10

SPRING | LH

09448-21013

1
Out of stock

11

WASHER (10.5X18X1)

09160-10121

2
Out of stock

12

COTTER PIN

04111-2520A

2

$1.31

In stock
