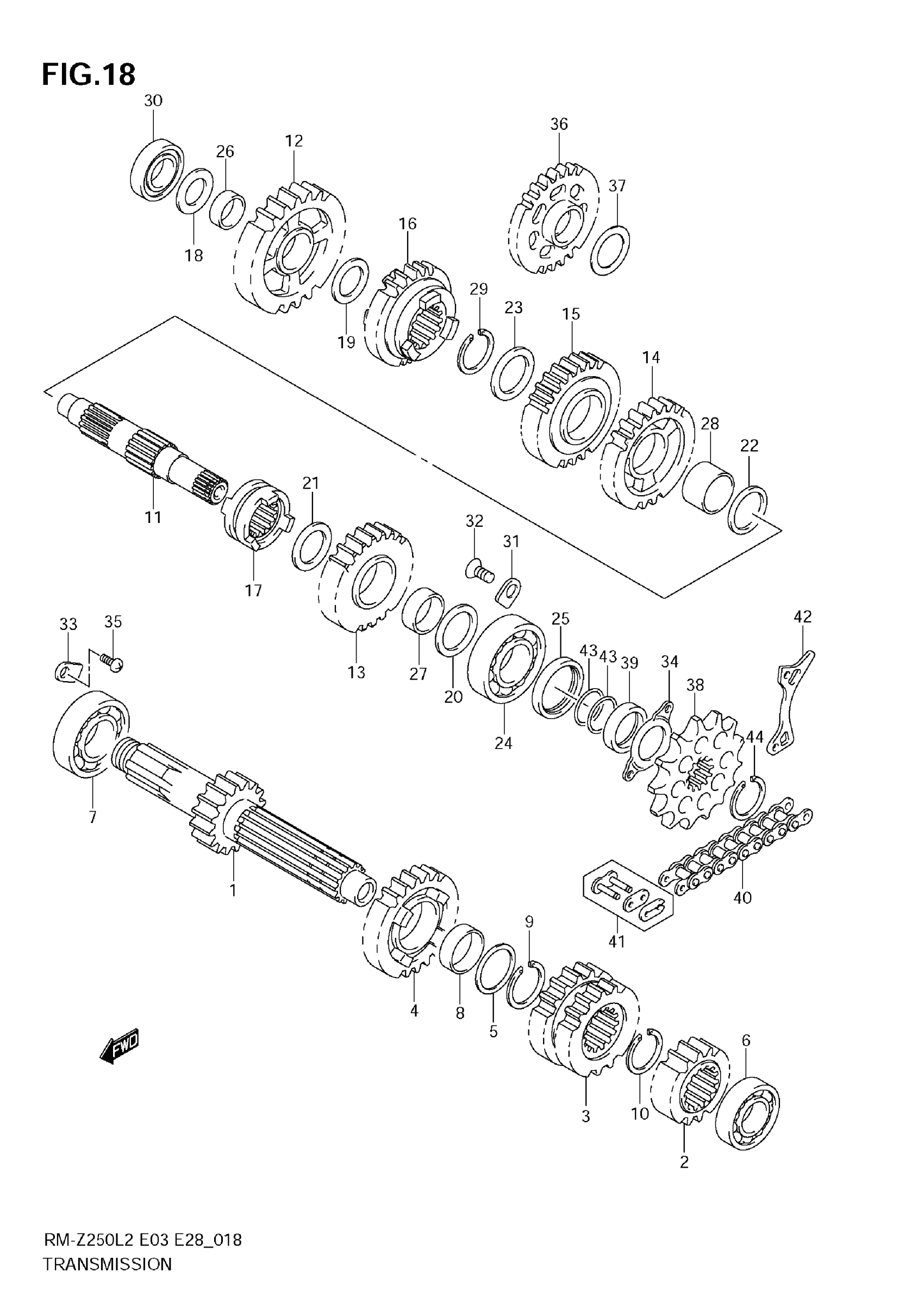

Suzuki RM-Z250L2 (2012) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:13

24120-10H01

Unavailable

2

GEAR, 2ND DRIVE | NT:17

24221-10H01

$72.58

3

GEAR, 3RD & 4TH DRIVE | NT:17/21

24231-10H10

$162.90

4

GEAR, 5TH DRIVE | NT:22

24251-10H00

$138.98

5

SHIM (24X29X1)

09181-24009

$4.62

6

BEARING (17X40X9.5) | LH

09262-17040

$19.14

7

BEARING (22X50X14) | RH

09262-22018

$27.83

8

BUSH

09300-24004

Unavailable

9

CIRCLIP

09380-24007

$3.82

10

CIRCLIP

09380-24007

$3.82

11

SHAFT, DRIVE

24131-10H01

Unavailable

12

GEAR, 1ST DRIVEN, NT:28

24311-10H01

$147.72

13

GEAR, 2ND DRIVEN, NT:30

24321-10H01

$147.72

14

GEAR, 3RD DRIVEN, NT:25

24331-10H00

$147.72

15

GEAR, 4TH DRIVEN, NT:26

24341-10H00

$147.72

16

GEAR, 5TH DRIVEN, NT:24

24351-10H00

$153.08

17

DOG, SLIDING

24412-10H01

$105.98

18

SHIM (17X28X1) | RH

09181-17195

$2.81

19

SHIM (20X28X1) | LH

09181-20167

$2.64

20

WASHER, 2ND DRIVEN GEAR LH

24322-49H00

$7.30

21

SHIM (22X30X1) | RH

09181-22167

$2.80

22

SHIM (24X30X1)

09181-24008

$4.45

23

SHIM (24X30X1)

09181-24008

$4.45

24

BEARING (20X52X7.5) | LH

09262-20147

$91.60

25

OIL SEAL (28X38X7.5)

09289-28012

$8.74

26

BUSH

09300-20037

$19.47

27

BUSH

09300-22020

Unavailable

28

BUSH

09300-24003

$29.22

29

CIRCLIP

09380-24007

$3.82

30

BEARING (17X40X12) | RH

09262-17023

$15.11

31

RETAINER

24741-20A00

$2.80

32

SCREW (6X12)

09126-06011

$2.01

33

RETAINER, CNTR SHAFT

24741-21A00

$2.80

34

RETAINER, DRIVE SHAFT OIL SEAL

24751-49H00

$17.28

35

SCREW (6X12)

09125-06122

$2.54

36

GEAR, KICK STARTER IDLE

26260-49H00

$126.82

37

WASHER, KICK IDLE GR THRUST

26264-28H00

$7.98

38

SPROCKET, ENGINE, NT:13

27511-14121

$38.62

39

SPACER, ENGINE SPROCKET

27531-43D00

$23.81

40

CHAIN ASSY,DRIVE | DID520DMA2-SDH This part replaces 27600-43D02-114.

27600-46K00-114

$156.72

41

.JOINT SET,CHAIN | OPT This part replaces 27620-43D02.

27620-46K00

$10.80

42

PLATE, FRONT CHAIN GUIDE

27641-10H01

$13.12

43

O RING (D:1.9,ID:19.8)

09280-20006

$1.77

44

CIRCLIP

09380-20007

$2.38
