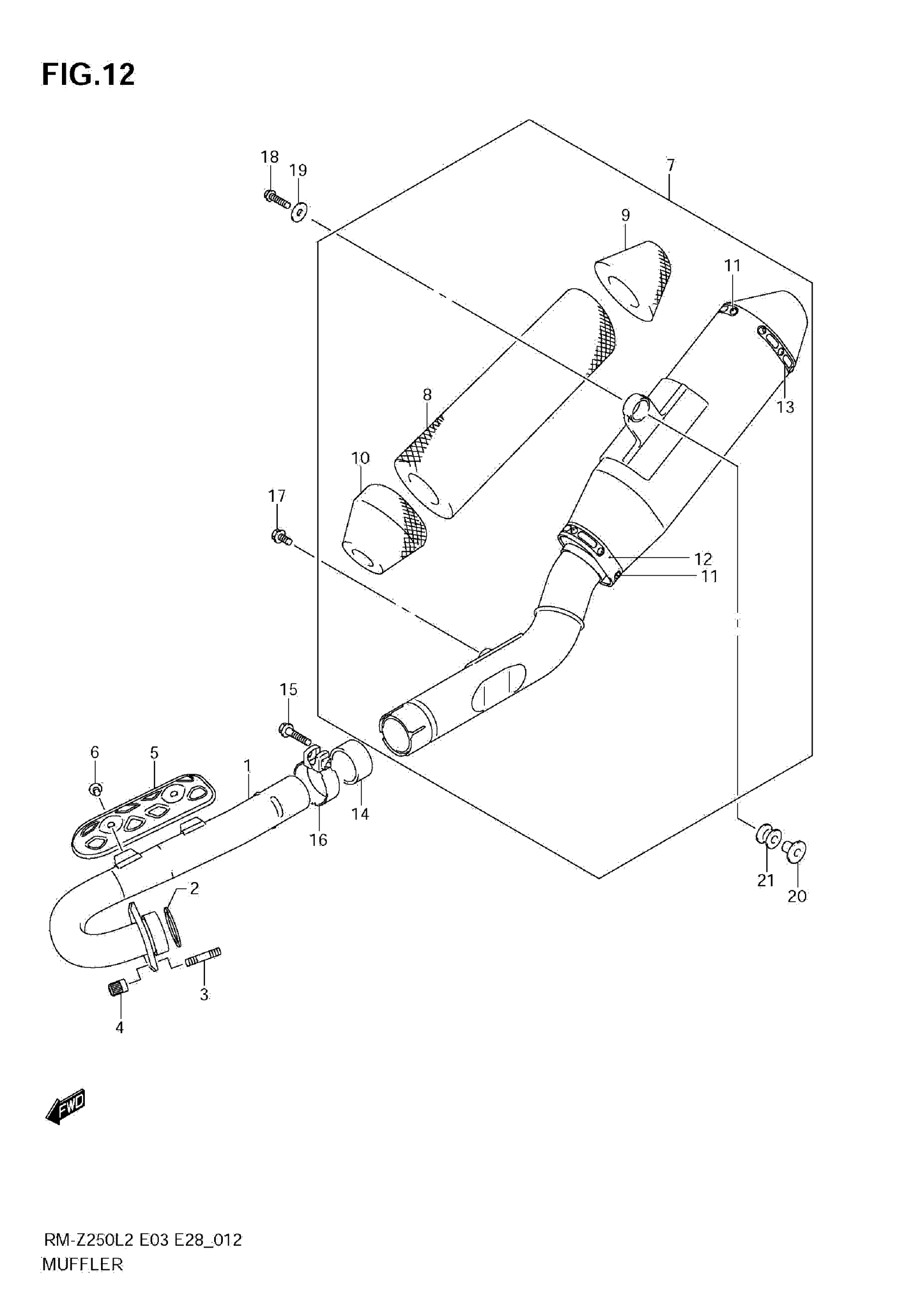

Suzuki RM-Z250L2 (2012) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-49H20

Unavailable

2

GASKET

14181-49H00

$12.05

3

BOLT, STUD

01421-0816A

$1.77

4

NUT

09159-08112

$5.26

5

COVER, EXHAUST PIPE

14186-49H10

$55.78

6

BOLT (6X8)

09139-06178

$5.13

7

BODY, MUFFLER

14310-49H00

Unavailable

8

SILENCER, MUFFLER

14351-49H10

Unavailable

9

GLASS WOOL, MUFFLER TAIL

14355-49H00

$28.50

10

GLASS WOOL, MUFFLER FRONT

14356-49H10

Unavailable

11

RIVET

14454-28H00

Unavailable

12

BAND, FRONT

14782-10H00

Unavailable

13

BAND, REAR

14781-10H00

Unavailable

14

CONNECTOR

14771-45G00

$23.57

15

BOLT

07120-0835B

$4.98

16

CLAMP, CONNECTOR

14469-29F00

$26.42

17

BOLT (8X20)

09103-08426

$5.87

18

BOLT (8X35)

09103-08391

$2.53

19

WASHER (8.5X26X1.6)

09160-08151

$2.00

20

SPACER (8.6X12X18.5)

09180-08157

$7.75

21

CUSHION

09320-12043

$7.20
