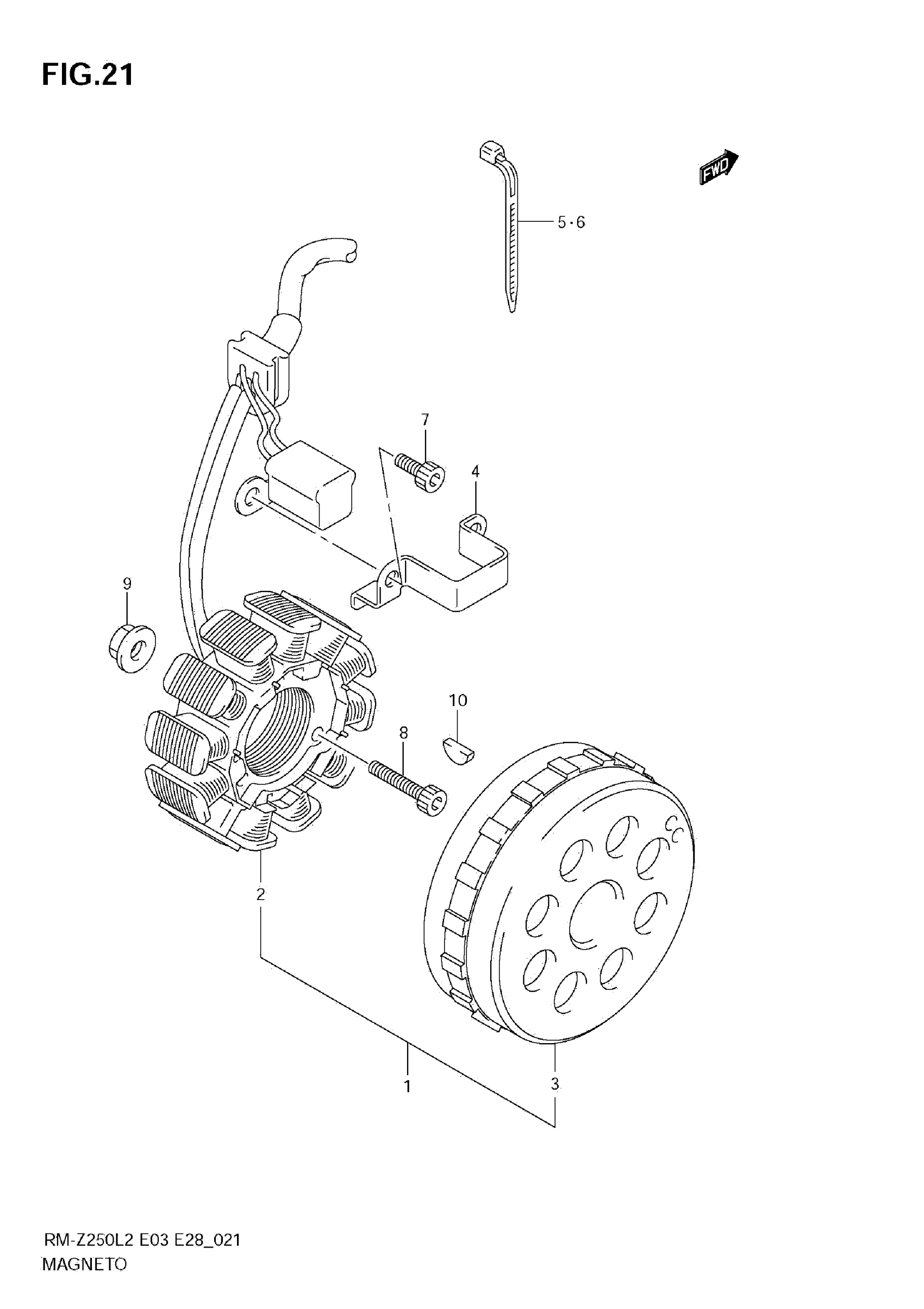

Suzuki RM-Z250L2 (2012) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-28H11

$1,008.97

2

STATOR ASSY, MAGNETO

32101-28H11

$603.27

3

ROTOR ASSY, MAGNETO

32102-28H10

Unavailable

4

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

5

CLAMP (L:165)

09407-18402

$2.21

6

CLAMP (L:235)

09407-25401

$4.21

7

BOLT

07130-0512A

$2.19

8

BOLT

07130-0525A

$2.29

9

NUT

08316-1012B

$3.48

10

KEY

08341-31039

$1.89
