2011 Suzuki RM-Z250L1 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2011 Suzuki RM-Z250L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

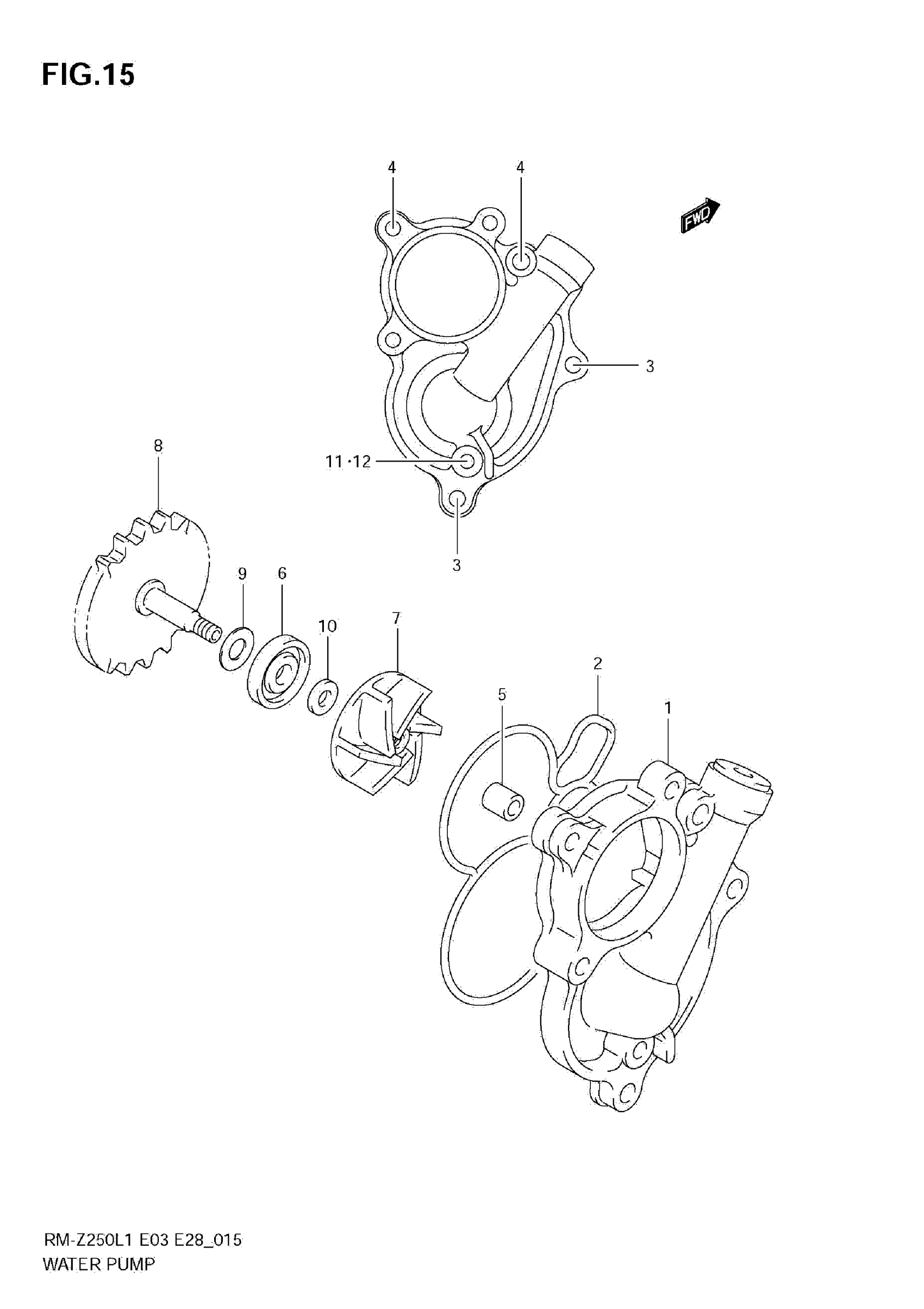

2011 Suzuki RM-Z250L1 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, WATER PUMP & OIL FILTER

17410-10H00

1
Out of stock

2

O RING, WATER PUMP CASE

17431-10H00

1
Out of stock

3

BOLT (6X60)

01547-0660A

2
Out of stock

4

BOLT

01547-0665A

2
Out of stock

5

PIN

04211-09109

2
Out of stock

6

SEAL, WATER PUMP OIL

17461-37F00

1
Out of stock

7

IMPELLER, WATER PUMP

17491-10H00

1
Out of stock

8

SHAFT, WATER PUMP

17510-10H02

1
Out of stock

9

WASHER

09181-08186

1
Out of stock

10

WASHER, 6X14X1

09181-06003

1
Out of stock

11

.BOLT

07120-0610A

1
Out of stock

12

GASKET

09168-06023

1
Out of stock
