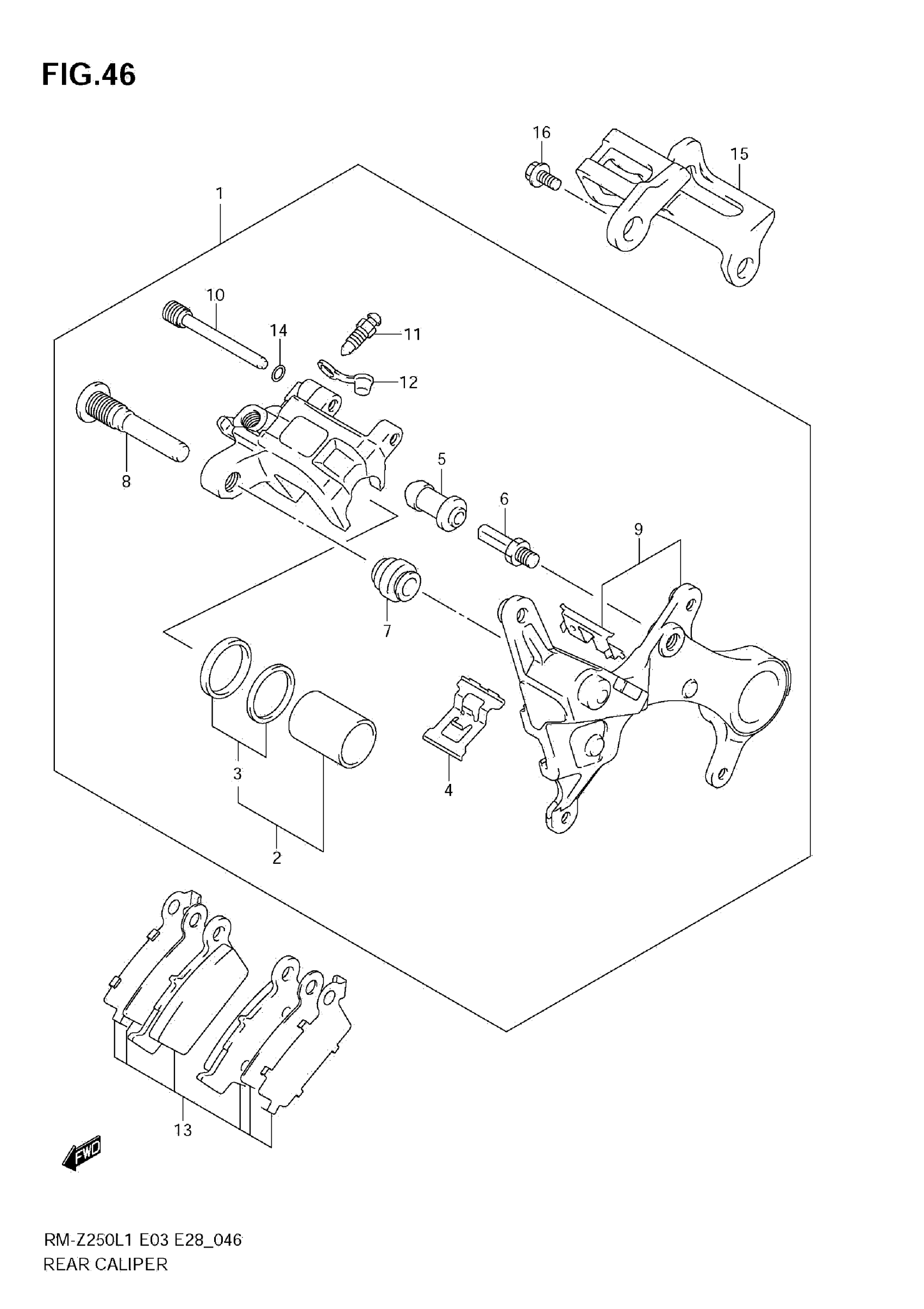

Find the part on the Rear Caliper diagram for your 2011 Suzuki RM-Z250L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki RM-Z250L1 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR

69100-28H01-999

1

$500.10

In stock

2

PISTON SET

69100-14820

1

$38.97

In stock

3

SEAL SET, PISTON

69100-21840

1

$15.35

In stock

4

SPRING

69315-35G00

1

$13.40

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-36E00

1
Out of stock

9

.BRACKET,RR CALIPER

69350-28H00

1

$183.23

In stock

10

PIN

69345-37F00

1
Out of stock

11

BLEEDER

59121-01A00

1
Out of stock

12

CAP

59122-01A00

1
Out of stock

13

PAD SET

69100-28820

1

$70.05

In stock

14

RING, STOPPER

59145-37F00

1
Out of stock

15

GUARD, REAR CALIPER

69725-37F01

1

$29.07

In stock

16

BOLT (6X12)

09116-06197

2

$2.92

In stock
