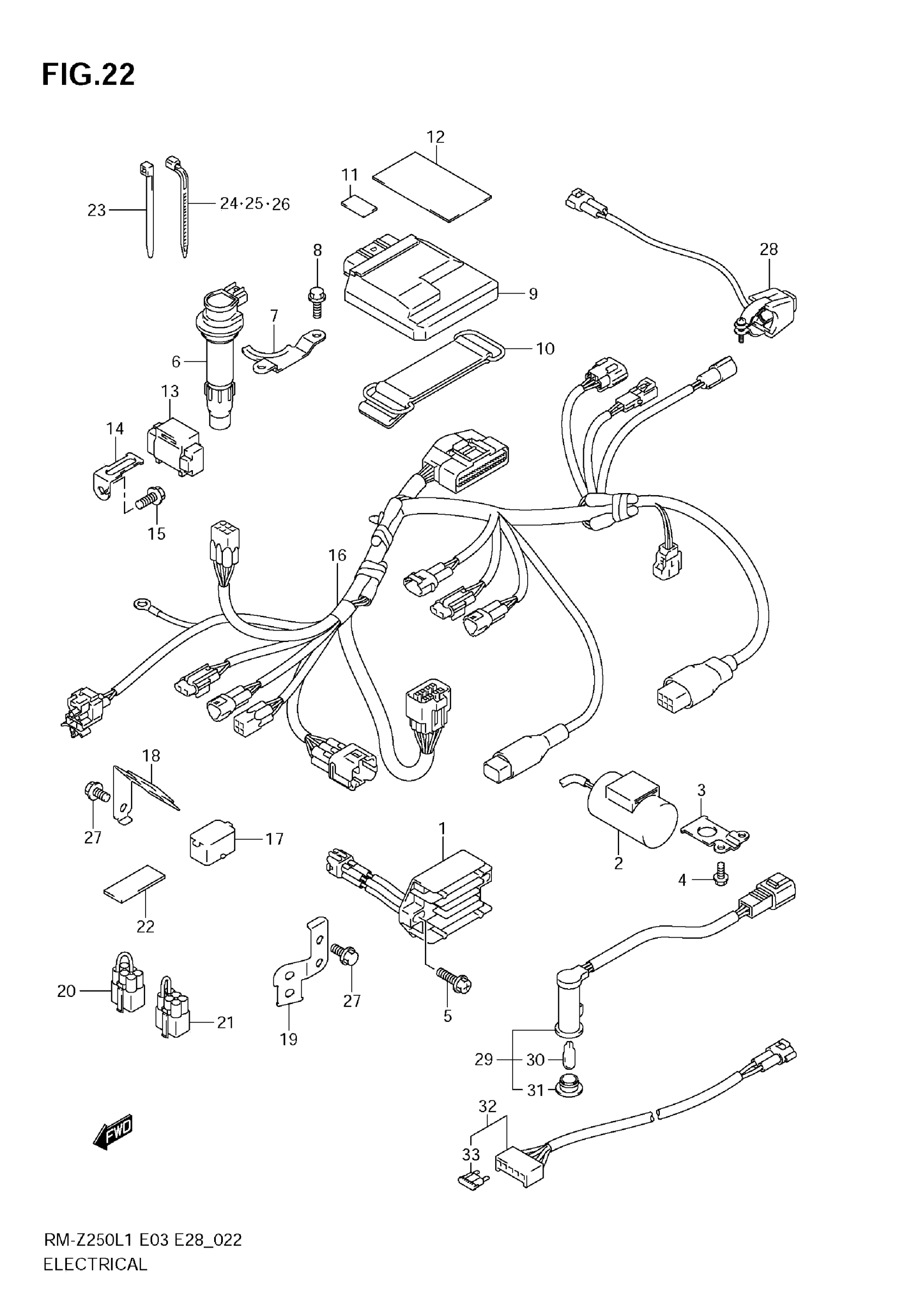

Suzuki RM-Z250L1 (2011) ELECTRICAL Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$194.41

2

CONDENSER ASSY

33640-28H00

$152.79

3

BRACKET, CONDENSER

33641-28H00

Unavailable

4

BOLT (6X10)

09103-06188

$3.17

5

BOLT

02162-0620C

$1.80

6

COIL ASSY, IGNITION

33410-49H00

$194.02

7

RETAINER, IGNITION COIL

33414-49H00

$12.20

8

BOLT

01550-0610B

$2.53

9

CONTROL UNIT, FI

32920-49H20

$754.50

10

BAND, FI CONTROL

32942-14301

$11.37

11

CUSHION (30X50X3)

33652-36000

$2.87

12

CUSHION (170X95X3) | CUT AS REQUIRED

33652-36000

$2.87

13

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01

14

BRACKET

33961-49H00

$7.77

15

SCREW This part replaces 02162-0616A.

02162-0616B

$2.13

16

HARNESS, WIRING

36610-49H10

$367.01

17

CAP,TS This part replaces 36654-46H00.

36654-46H01

$14.23

18

BRACKET, COUPLER

36672-49H00

Unavailable

19

BRACKET, COUPLER

36672-49H10

$10.70

20

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

$14.88

21

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

$10.97

22

PROTECTOR, WIRING HARNESS

36920-45G00

$3.42

23

CLAMP (L:95)

09407-10403

Unavailable

24

CLAMP (L:95)

09407-11401

$2.87

25

CLAMP (L:125)

09407-14403

$2.31

26

CLAMP (L:165)

09407-18402

$2.29

27

BOLT

01550-0610A

$2.01

28

SWITCH ASSY, ENGINE STOP

37820-49H00

$66.95

29

LAMP ASSY, FI INDICATOR | OPT

36380-28H00

$87.52

30

BULB (12V3.4W) | OPT

09471-12028

$2.04

31

LENS (RED) | OPT

36321-28H00

$11.93

32

WIRE, BATTERY | OPT

36890-28H00

$51.95

33

FUSE (10A) | OPT

09481-10101

$1.80
