2010 Suzuki RM-Z250L0 Transmission Diagram

← All diagrams

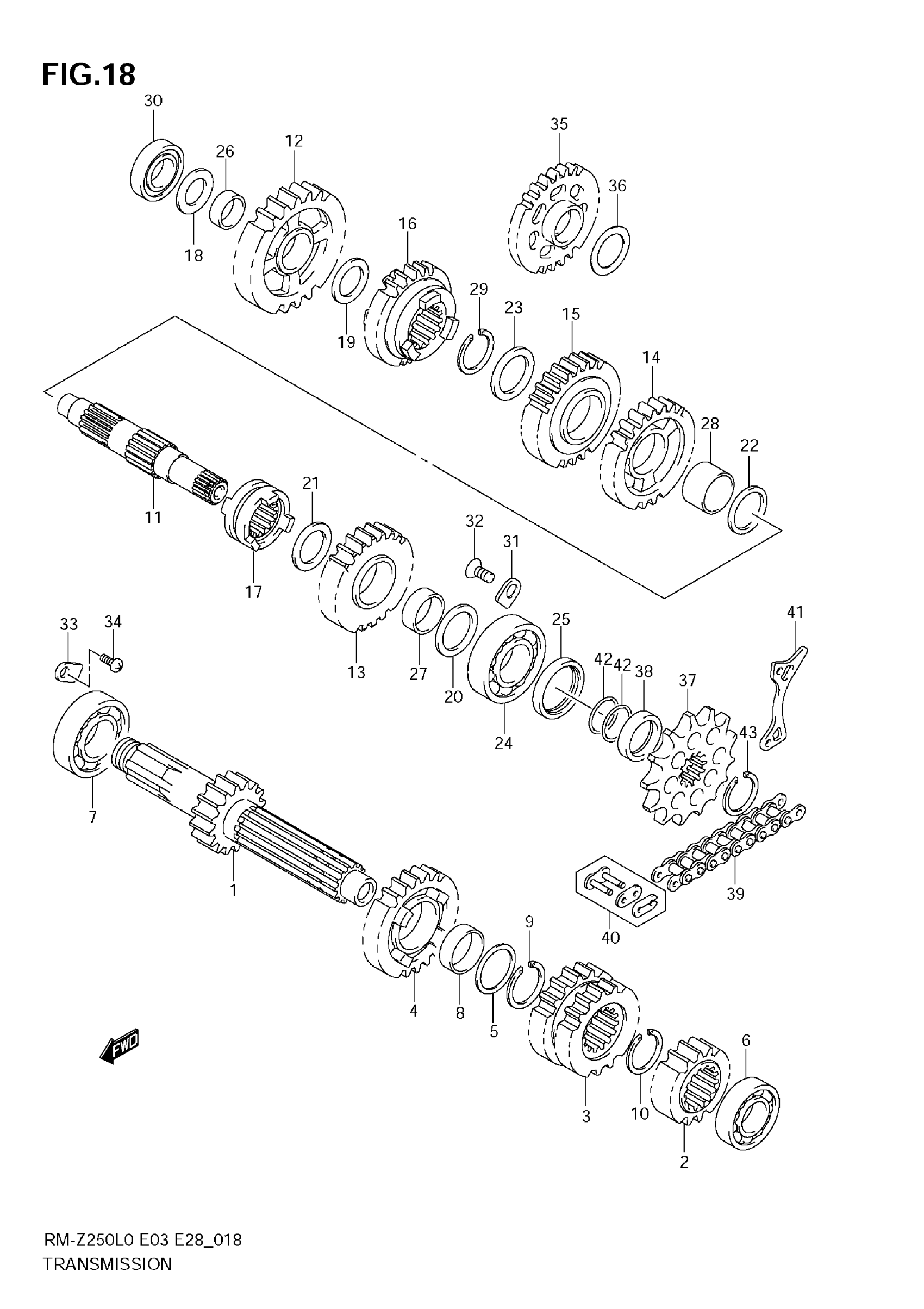

Find the part on the Transmission diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER, NT:13

24120-10H01

1
Out of stock

2

GEAR, 2ND DRIVE This part replaces 24221-10H00.

24221-10H01

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | NT:17/21 This part replaces 24231-10H01.

24231-10H10

1
Out of stock

4

GEAR, 5TH DRIVE, NT:22

24251-10H00

1
Out of stock

5

WASHER, 5TH DRIVE | 24X29X1.0

09181-24009

1
Out of stock

6

BEARING, CNTR SHAFT, L | 17X40X9.5

09262-17040

1
Out of stock

7

BEARING, CNTR SHAFT, R | 22X50X14

09262-22018

1
Out of stock

8

BUSH, 5TH DRIVE | 24X27X9.0

09300-24004

1
Out of stock

9

CIRCLIP, 5TH DRIVE

09380-24007

1
Out of stock

10

CIRCLIP, 2ND DRIVE

09380-24007

1
Out of stock

11

SHAFT, DRIVE

24131-10H01

1
Out of stock

12

GEAR, 1ST DRIVEN, NT:28

24311-10H01

1
Out of stock

13

GEAR, 2ND DRIVEN, NT:30 This part replaces 24321-10H00.

24321-10H01

1
Out of stock

14

GEAR, 3RD DRIVEN, NT:25

24331-10H00

1
Out of stock

15

GEAR, 4TH DRIVEN, NT:26

24341-10H00

1
Out of stock

16

GEAR, 5TH DRIVEN, NT:24

24351-10H00

1
Out of stock

17

DOG, SLIDING This part replaces 24412-10H00.

24412-10H01

1
Out of stock

18

WASHER, 1ST DRIVEN, R | 17X28X1.0

09181-17195

1
Out of stock

19

WASHER, 1ST DRIVEN, L | 20X28X1.0

09181-20167

1
Out of stock

20

WASHER, 2ND DRIVEN GEAR, L

24322-49H00

1
Out of stock

21

WASHER, 2ND DRIVEN GEAR, R | 22X30X1.0

09181-22167

1
Out of stock

22

WASHER, 3RD DRIVEN GEAR | 24X30X1.0

09181-24008

1
Out of stock

23

WASHER, 4TH DRIVEN GEAR | 24X30X1.0

09181-24008

1
Out of stock

24

BEARING, DRIVE SHAFT, L | 20X52X15

09262-20147

1
Out of stock

25

SEAL, DRIVE SHAFT OIL | 28X38X7.5

09289-28012

1
Out of stock

26

BUSH, 1ST DRIVEN GEAR | 20X24X10

09300-20037

1
Out of stock

27

BUSH, 2ND DRIVEN GEAR | 22X25X12

09300-22020

1
Out of stock

28

BUSH, 3RD & 4TH DRIVEN | 24X27X18

09300-24003

1
Out of stock

29

CIRCLIP, 4TH DRIVEN GEAR

09380-24007

1
Out of stock

30

BEARING, DRIVE SHAFT, R | 17X40X12

09262-17023

1
Out of stock

31

RETAINER

24741-20A00

1
Out of stock

32

SCREW, DRIVE SHAFT (6X12)

09126-06011

1
Out of stock

33

RETAINER, CNTR SHAFT

24741-21A00

1
Out of stock

34

SCREW, CNTR SHAFT (6X12)

09125-06110

1
Out of stock

35

GEAR, KICK STARTER IDLE

26260-49H00

1
Out of stock

36

WASHER, KICK IDLE

26264-28H00

1
Out of stock

37

SPROCKET, ENGINE, NT:13

27511-14121

1
Out of stock

38

SPACER, ENGINE SPROCKET

27531-43D00

1
Out of stock

39

CHAIN ASSY,DRIVE | DID520DMA2-SDH This part replaces 27600-43D01-114.

27600-46K00-114

1
Out of stock

40

.JOINT SET,CHAIN | OPT This part replaces 27620-43D01.

27620-46K00

1
Out of stock

41

PLATE, FRONT CHAIN GUIDE This part replaces 27641-10H00.

27641-10H01

1
Out of stock

42

O RING, SPROCKET SPACER | D:1.9,ID:19.8

09280-20006

2
Out of stock

43

CIRCLIP, ENGINE SPROCKET

09380-20007

1
Out of stock
