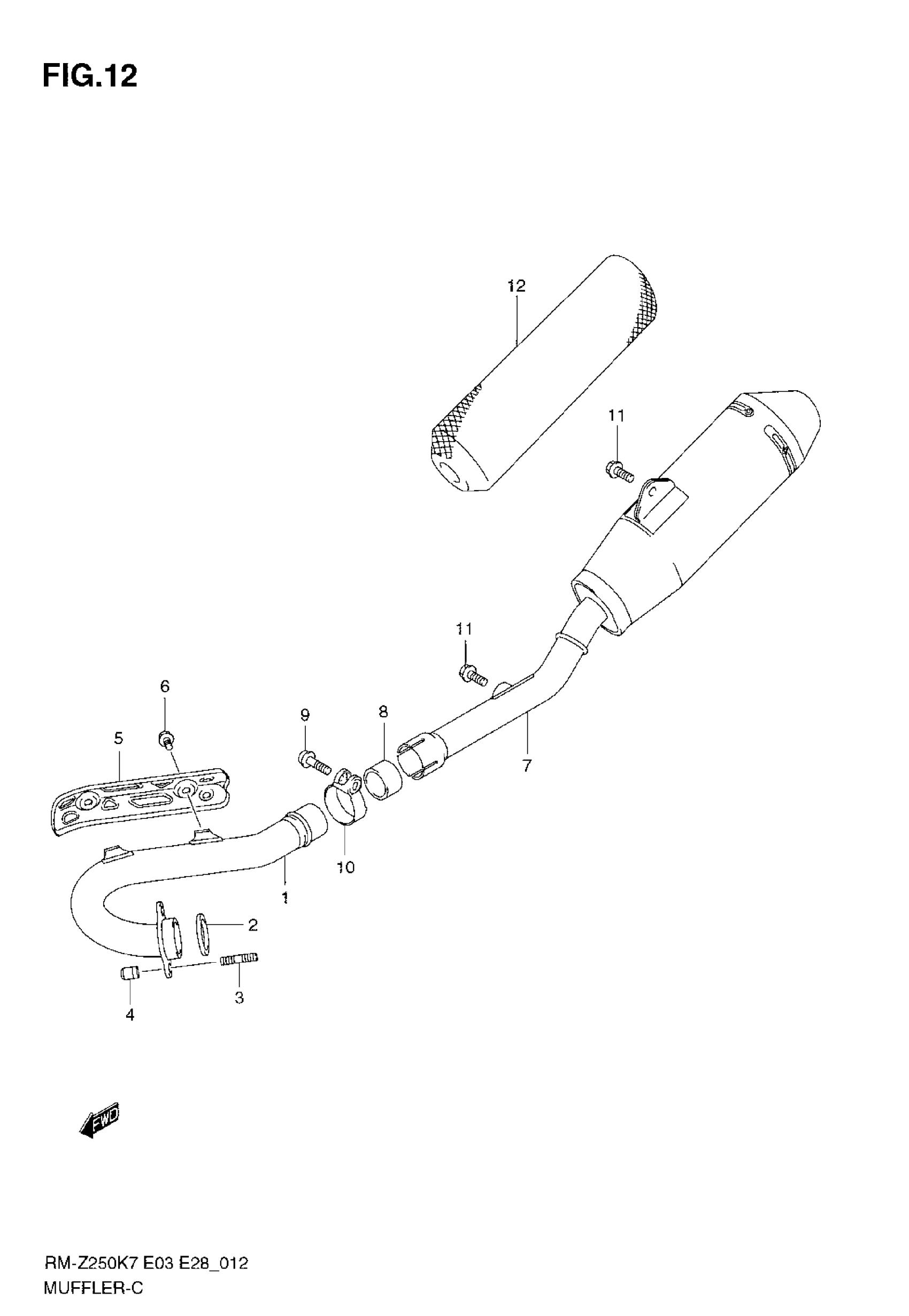

Suzuki RM-Z250 (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-10H00

$421.68

2

GASKET

14181-10H00

$12.82

3

BOLT, STUD

01421-0816B

$2.28

4

NUT

09159-08112

$5.26

5

COVER, EXHAUST PIPE

14186-35G20

$58.90

6

SCREW (6X10)

09139-06172

$2.80

7

BODY, MUFFLER | MODEL K7

14310-10H00

Unavailable

7

BODY, MUFFLER | MODEL K8/K9

14310-10H30

Unavailable

8

CONNECTOR

14771-10H00

$35.50

9

BOLT, CONNECTOR

07120-0840B

$3.50

10

CLAMP, CONNECTOR

14469-40F00

$26.92

11

BOLT (8X20)

09103-08426

$5.87

12

SILENCER, MUFFLER | OPT

14351-10H00

Unavailable
