2009 Suzuki RM-Z250 Fuel Tank Diagram

← All diagrams

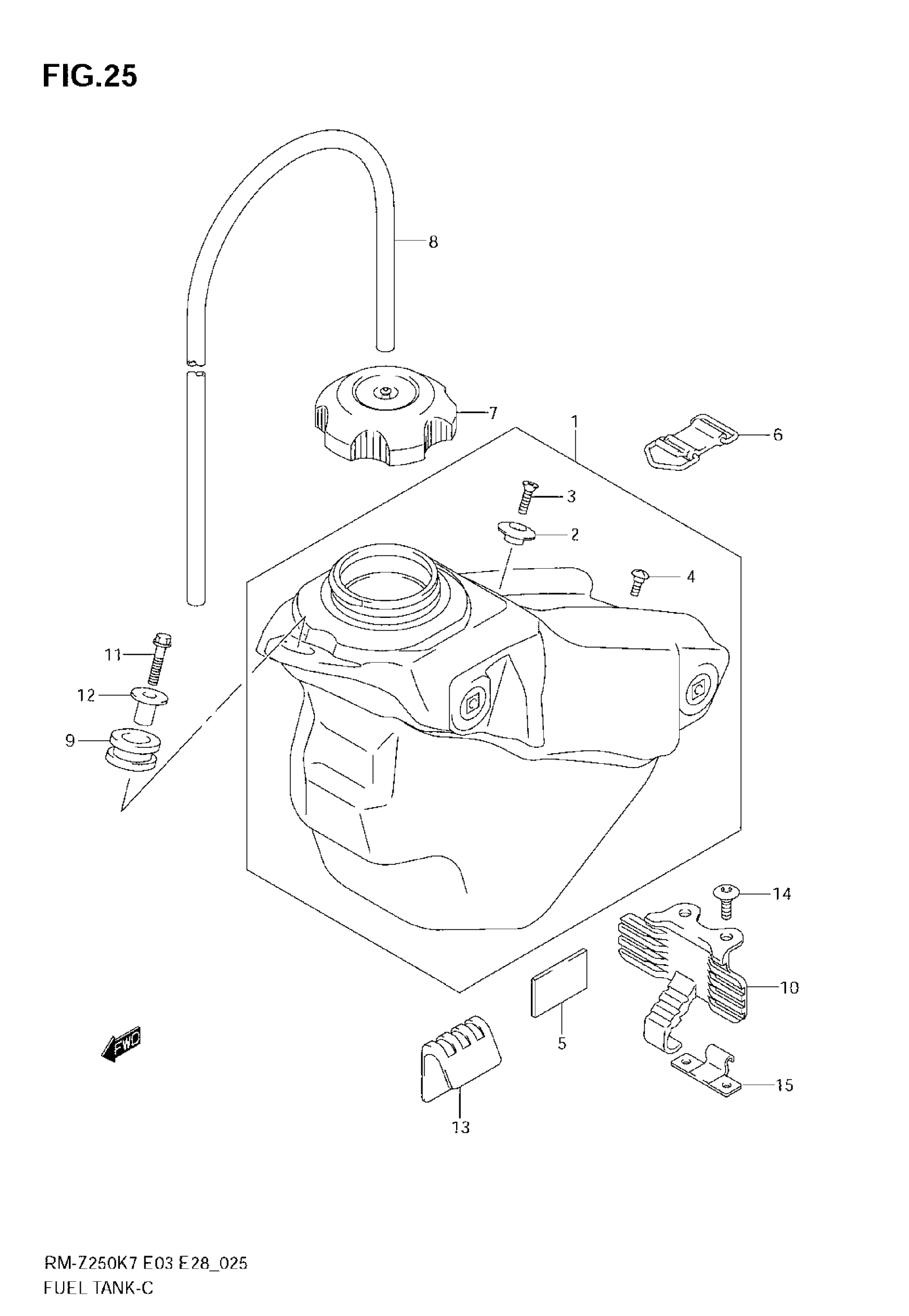

Find the part on the Fuel Tank diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-Z250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (BLACK) | Includes Item(s) 2 - 4

44110-10H00-YBH

1
Out of stock

2

HOOK, SEAT FRONT

44132-37F10

1
Out of stock

3

SCREW, HOOK

02122-0620B

1
Out of stock

4

SCREW, BAND

09139-06134

1
Out of stock

5

CUSHION, FUEL TANK This part replaces 44544-35G00.

44544-31J00

2
Out of stock

6

BAND, REAR

44560-27C00

1
Out of stock

7

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

1
Out of stock

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

9

CUSHION,FUEL TA This part replaces 44541-10H00.

44541-10H01

1
Out of stock

10

CUSHION,FUEL TA This part replaces 44542-10H00.

44542-10H01

1
Out of stock

11

BOLT, FRONT

09103-06213

1
Out of stock

12

SPACER

44134-35G02

1
Out of stock

13

CUSHION,FUEL TA This part replaces 44543-35G00.

44543-49H01

2
Out of stock

14

SCREW

09139-06169

2
Out of stock

15

HOOK, FUEL TANK BAND

41432-35G10

1
Out of stock
