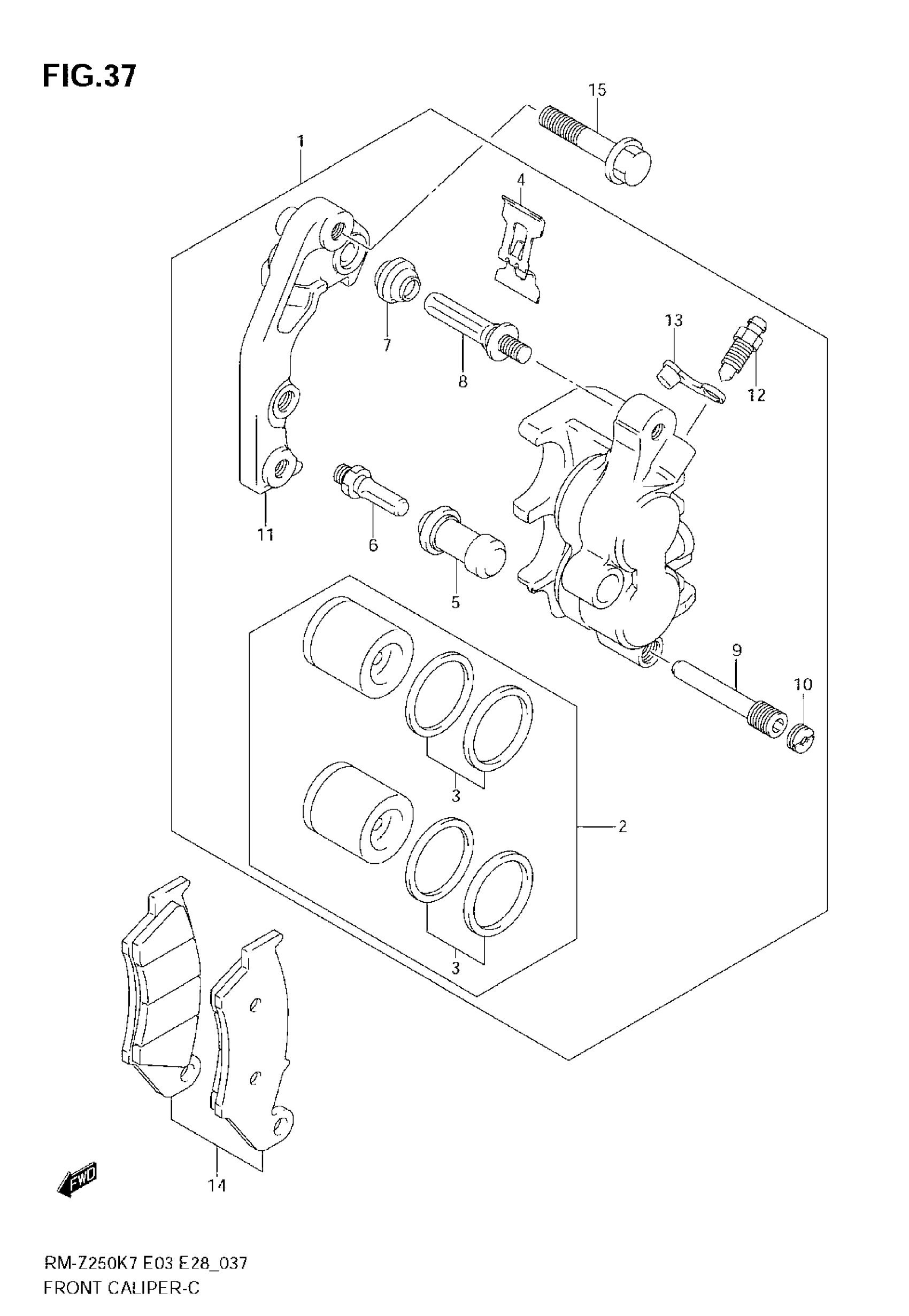

Suzuki RM-Z250 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 13 This part replaces 59300-37F01-999.

59300-37F04-999

$588.87

2

PISTON SET

59300-27840

$47.57

3

SEAL SET, PISTON

59300-13820

$21.18

4

SPRING

59315-13E00

$14.51

5

BOOT

59386-13A00

$7.60

6

PIN

59382-37F00

$13.93

7

BOOT

59303-14500

$5.29

8

PIN

59305-27C00

$26.52

9

PIN

59345-13E00

$13.73

10

PLUG

59146-21E10

$5.88

11

BRACKET

59350-13E00

$152.71

12

BLEEDER

59121-01A00

$8.35

13

CAP

59122-01A00

$4.15

14

PAD SET

59301-36810

$53.37

15

BOLT (8X40)

09103-08403

$3.18
