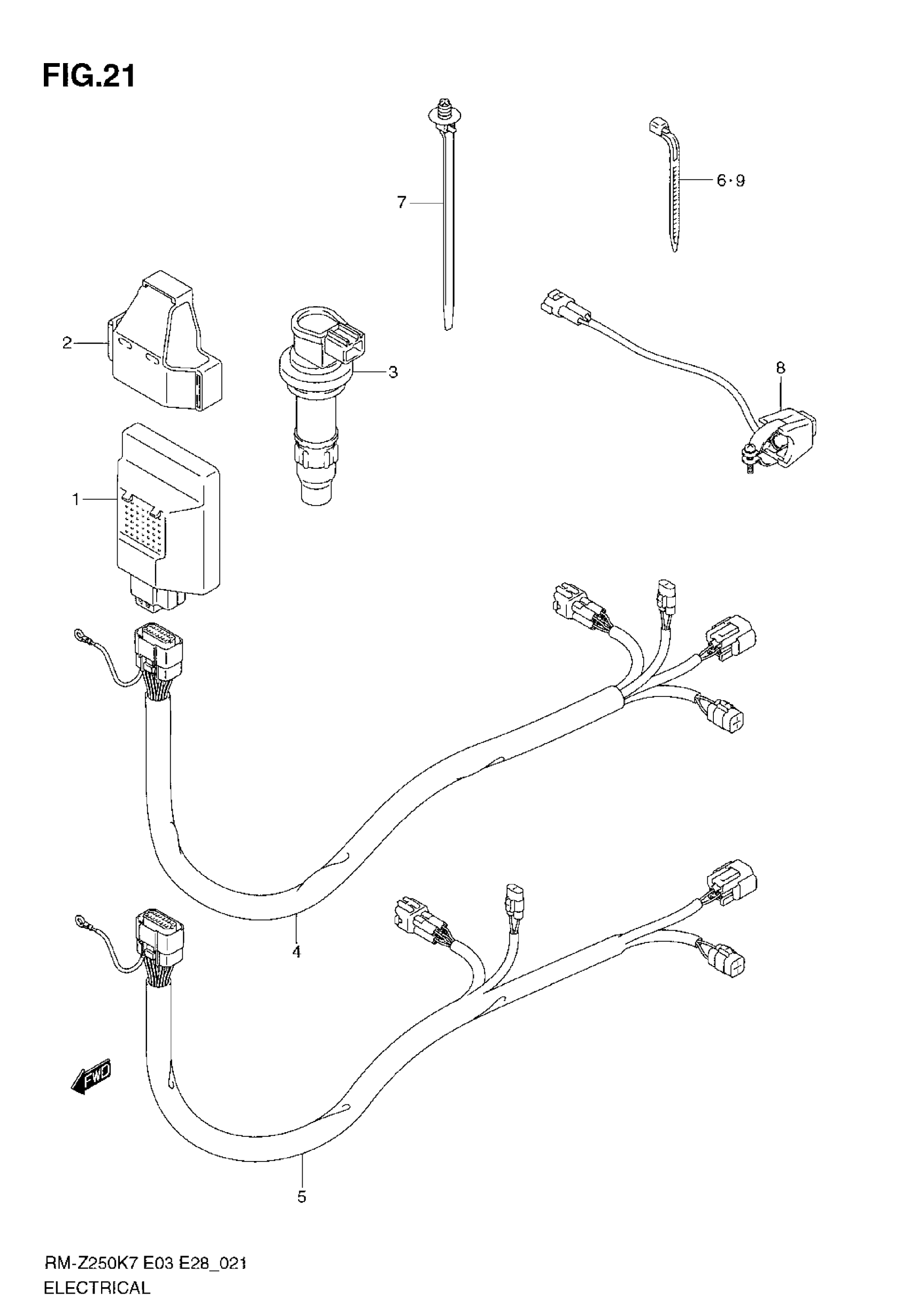

Suzuki RM-Z250 (2009) ELECTRICAL Diagram

#

Description

Price

1

CDI UNIT | MODEL K7

32900-10H00

Unavailable

1

CDI UNIT | MODEL K8/K9

32900-10H11

Unavailable

2

CUSHION, CDI UNIT

32980-37F00

$12.62

3

COIL ASSY, IGNITION

33410-35G00

$194.02

4

HARNESS, WIRING | MODEL K7/K8

36610-10H00

Unavailable

5

HANRESS, WIRING | MODEL K9

36610-10H20

$202.35

6

CLAMP, WIRING (L:95)

09407-11401

$2.87

6

CLAMP, WIRING (L:165)

09407-18402

$2.21

7

CLAMP, WIRING HARNESS

09407-17403

$4.63

8

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

9

CLAMP, ENGINE STOP (L:95)

09407-11401

$2.87

9

CLAMP, ENGINE STOP (L:125)

09407-14403

$2.24
