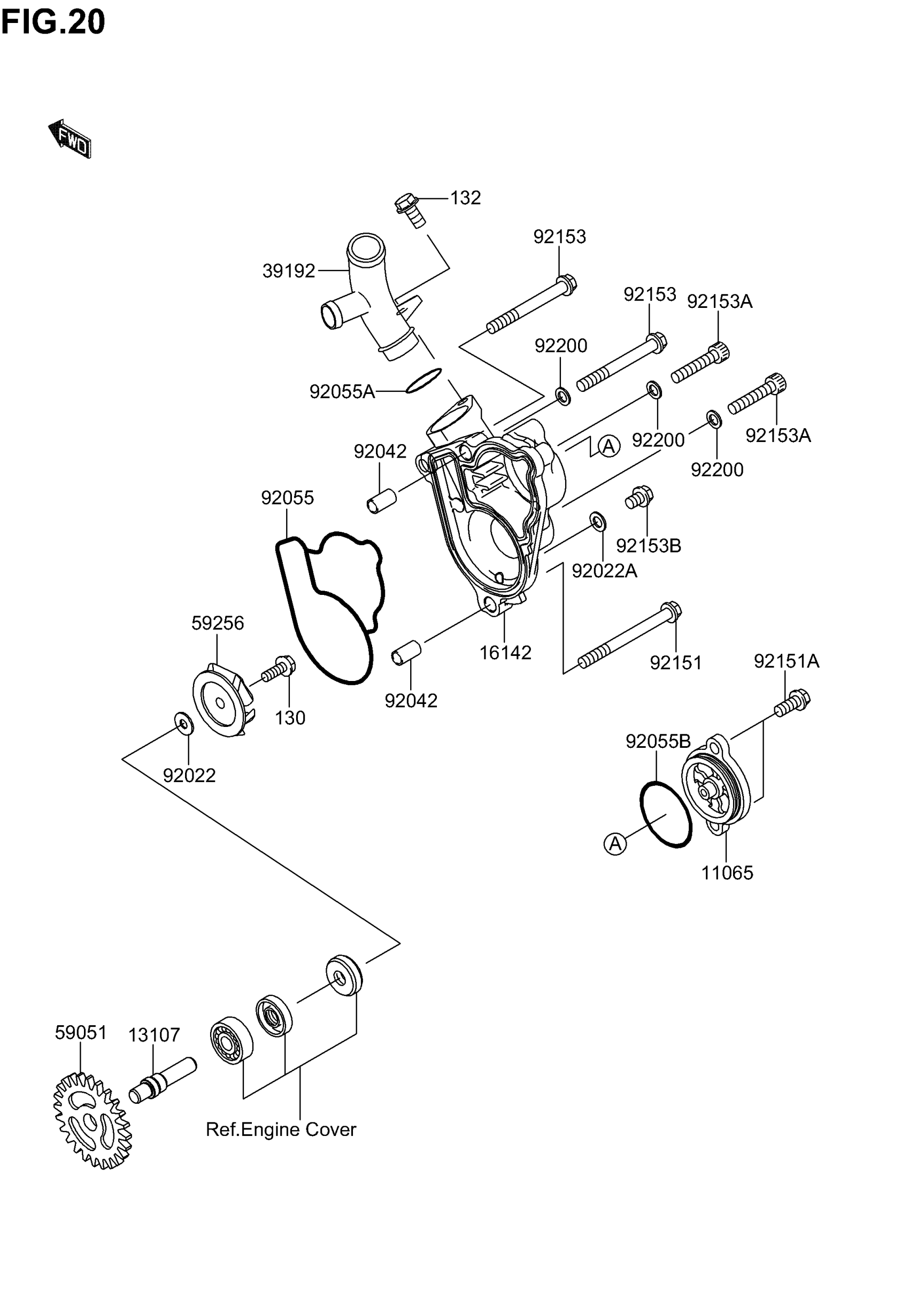

Suzuki RM-Z250 (2006) WATER PUMP Diagram

CAP

K1106-50087

Unavailable

SHAFT,WATER PUM This part replaces K1310-70120.

K1310-70130

Unavailable

COVER-PUMP,WATER

K1614-20020

$169.97

PIPE-WATER

K3919-20037

$27.25

GEAR-SPUR,WATER PUMP

K5905-10010

Unavailable

IMPELLER

K5925-61065

$37.43

WASHER,5.2X13X1

K9202-21380

$3.62

WASHER,6.2X11X1

KK920-22304

$2.80

PIN,DOWEL,6.3X8X14

KK920-42007

$3.69

RING-O,WATER PUMP

K9205-50010

$6.02

RING-O,18.8X2.4

K9205-51308

$4.63

RING-O,35.2X1.9

KK920-55520

$6.08

BOLT,6X65 This part replaces K9215-11199.

K9215-30697

Unavailable

BOLT,6X14 This part replaces K9215-11423.

K132B-C0614

$1.33

BOLT,6X55

K9215-30696

$3.18

BOLT,6X30 This part replaces K9215-30844.

K120C-C0630

Unavailable

BOLT,6X8

K9215-30860

Unavailable

WASHER,6.1X10.0X1.0

K9220-00190

$2.43

BOLT-FLANGED This part replaces KK130-Z0514.

K130C-D0514

$1.57

BOLT,FLANGED,SM This part replaces KK132-L0612.

K132B-B0612

Unavailable
