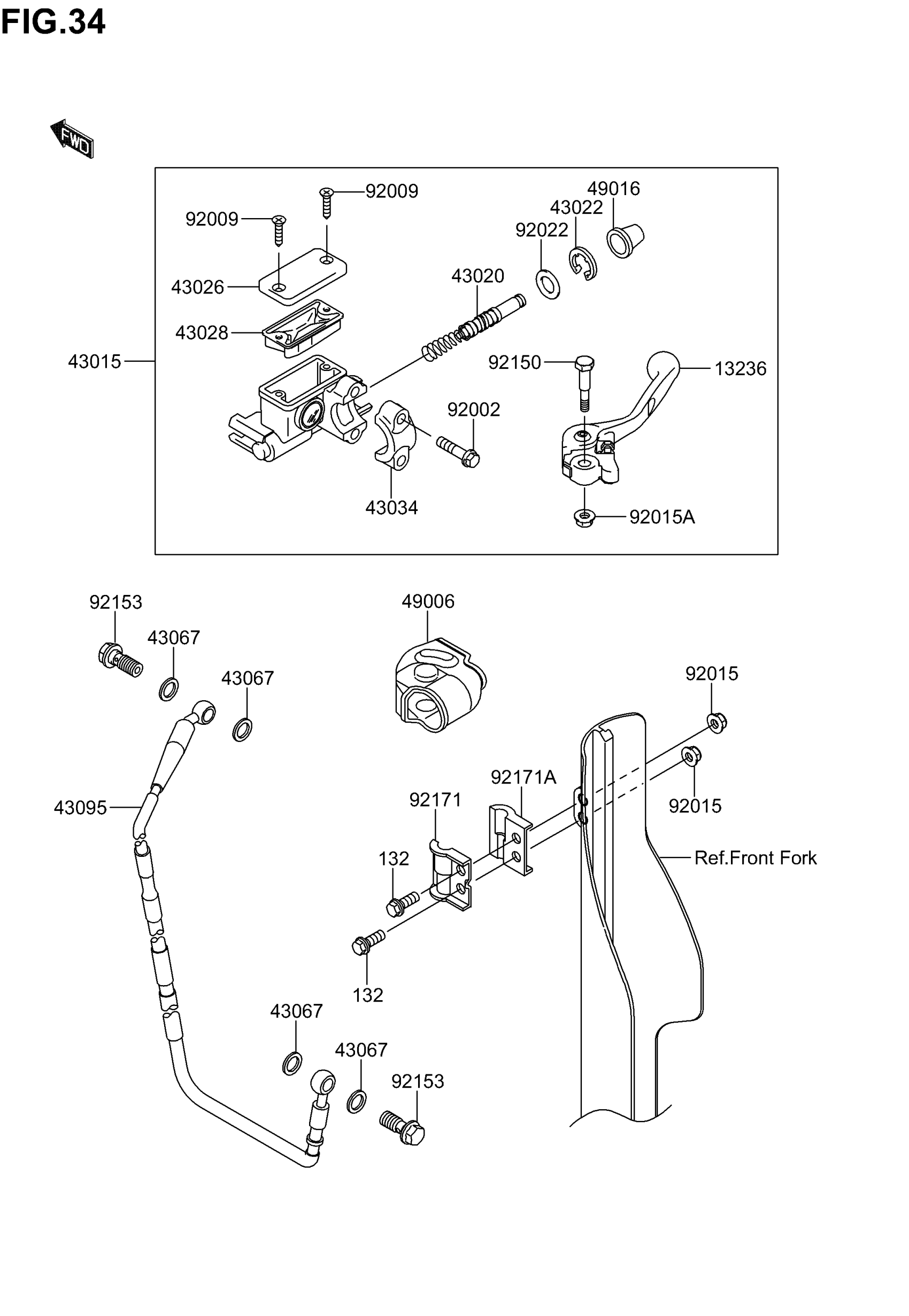

Suzuki RM-Z250 (2006) FRONT MASTER CYLINDER Diagram

LEVER-COMP,FRONT BRAKE This part replaces K1323-60070.

K1323-61346

$42.22

CYLINDER ASSY,M This part replaces K4301-50041.

K4301-50167

Unavailable

PISTON,BRAKE This part replaces K4302-01123.

K4302-00016

Unavailable

STOPPER-BRAKE,PISTON

K4302-21010

Unavailable

CAP-BRAKE

K4302-61075

Unavailable

DIAPHRAGM

K4302-81067

$18.32

HOLDER-BRAKE

K4303-41110

Unavailable

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

$1.83

HOSE-BRAKE,FR

K4309-50060

Unavailable

BOOT,FRONT BRAK This part replaces K4900-61344.

K4900-60078

$13.87

COVER-SEAL,MASTER CYLINDER

K4901-61044

Unavailable

BOLT

K9200-21894

Unavailable

SCREW,4MM

K9200-91458

$3.07

NUT,LOCK,FLANGED,6MM

K9201-51339

$6.02

NUT,FLANGED,6MM

K9201-51528

Unavailable

WASHER

K9202-21814

Unavailable

BOLT,LEVER SET

K9215-01451

$12.55

BOLT,OIL,L=23

K9215-30627

$5.43

CLAMP,BRAKE HOSE,OUTSIDE

K9217-10235

Unavailable

CLAMP,BRAKE HOSE,INSIDE

K9217-10291

Unavailable

BOLT,FLANGED,SM This part replaces KK132-L0616.

K132B-B0616

Unavailable
