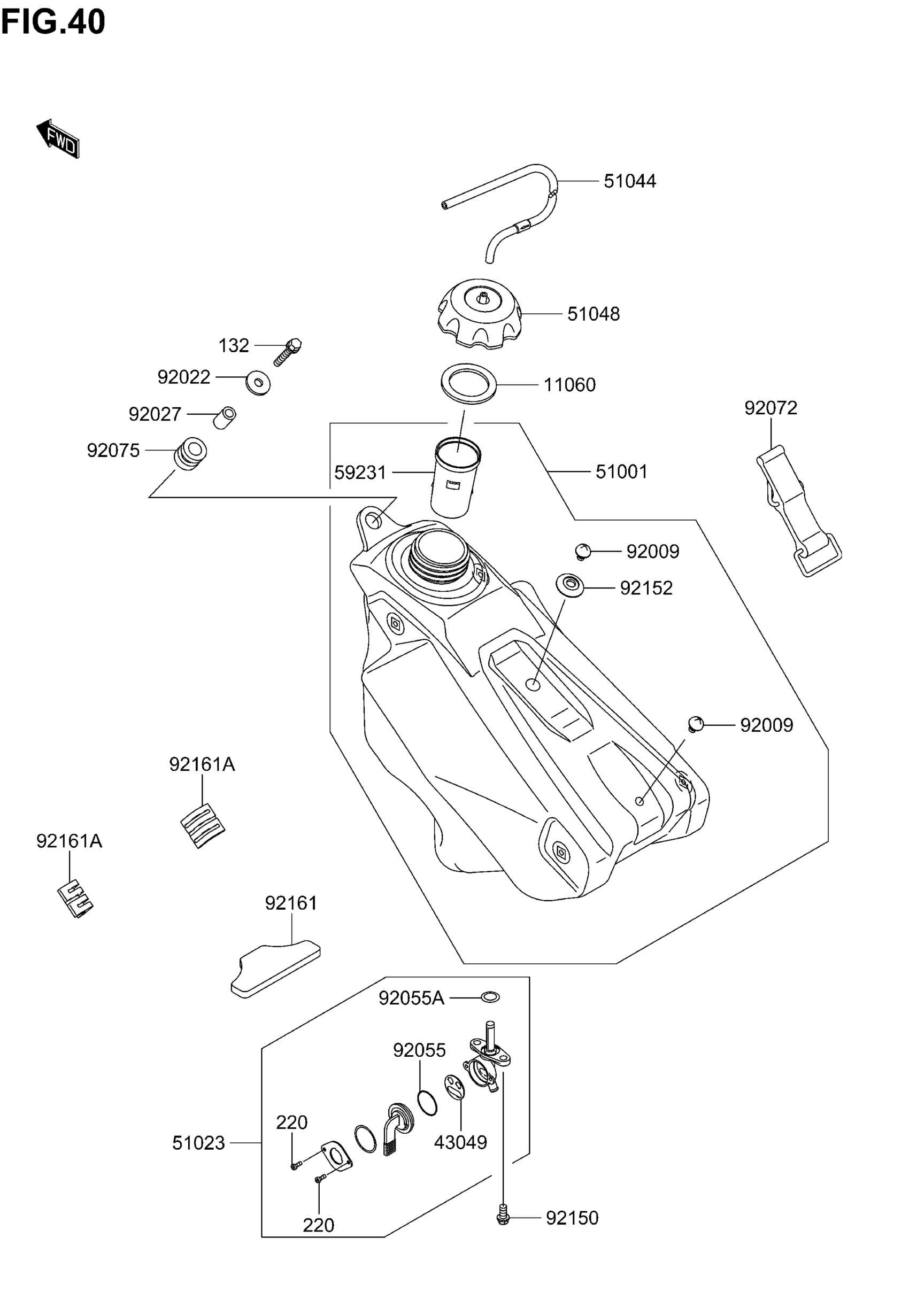

Suzuki RM-Z250 (2005) FUEL TANK Diagram

GASKET,FUEL TANK CAP

K1106-01340

$6.67

PACKING,TAP VALVE

K4304-91091

Unavailable

TANK-COMP-FUEL,F.BLACK

KK510-01002-06Z

Unavailable

TAP-ASSY,FUEL

K5102-30009

Unavailable

TUBE-ASSY,TANK CAP

K5104-40019

Unavailable

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

$53.07

FILLER

K5923-11096

$5.22

SCREW,6MM

K9200-91971

Unavailable

WASHER,6.5X24X2

K9202-21690

$3.43

COLLAR,6.8X10X14

K9202-71966

Unavailable

RING-O,TAP LEVER

K9205-51419

$4.52

RING-O,FUEL TAP PACKING

K9205-51700

Unavailable

BAND,FUEL TANK

K9207-21229

$7.87

DAMPER

K9207-51787

Unavailable

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.55

COLLAR

K9215-21346

Unavailable

DAMPER This part replaces K9216-10107.

K9216-10335

Unavailable

DAMPER,FUEL TANK,SIDE

K9216-11291

$5.22

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$2.15

SCREW-PAN-CROS

KK220-B0308

Unavailable
