2004 Suzuki RM-Z250 Cylinder Head Diagram

← All diagrams

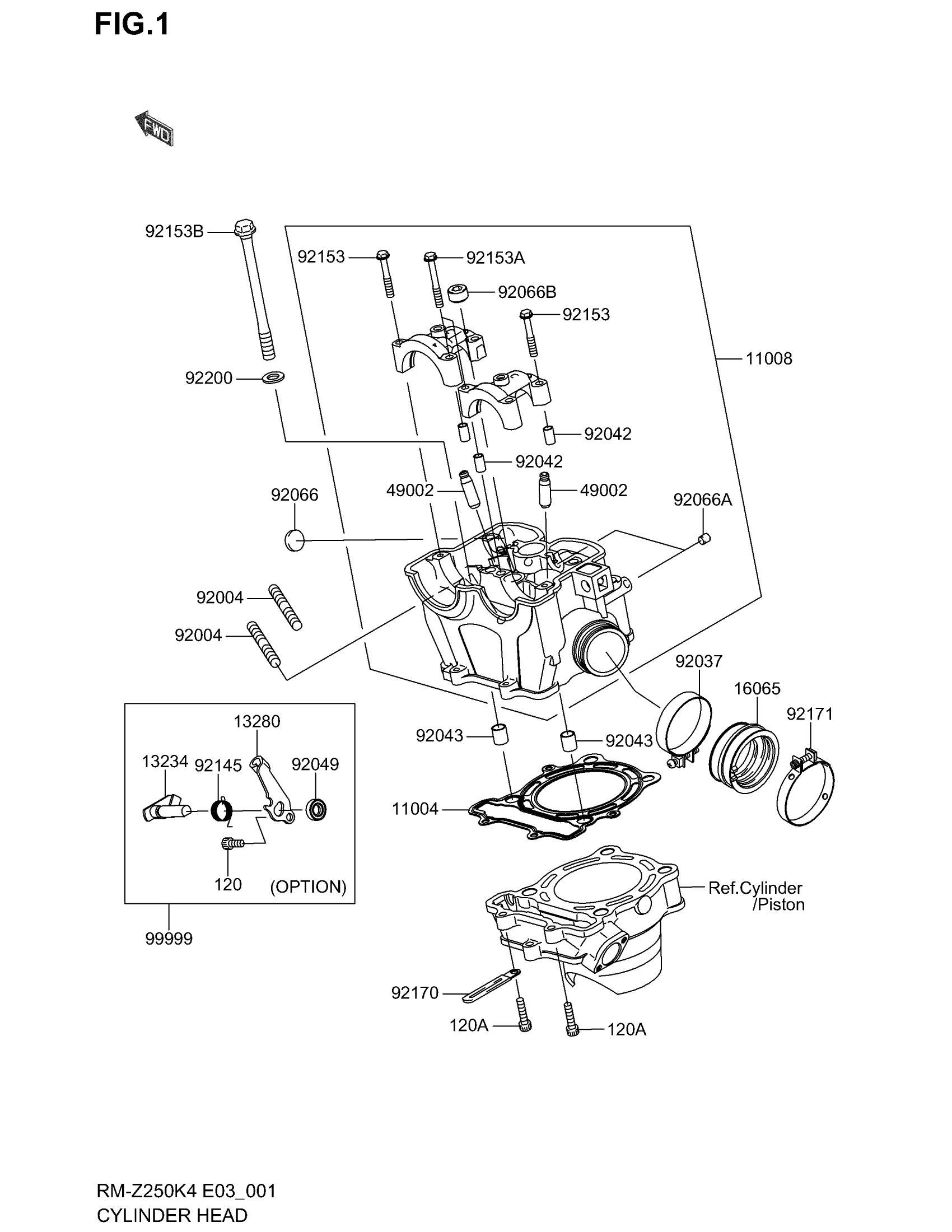

Find the part on the Cylinder Head diagram for your 2004 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki RM-Z250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET,HEAD This part replaces K1100-40003.

K1100-40090

1
Out of stock

11008

HEAD-COMP-CYLINDER This part replaces K1100-80009.

K1100-80080

1
Out of stock

13234

SHAFT-COMP,DECOMP | OPTION

K1323-40009

1
Out of stock

13280

HOLDER,DECOMP | OPTION

K1328-00038

1
Out of stock

16065

HOLDER-CARBURETOR

K1606-50012

1
Out of stock

49002

GUIDE-VALVE | OPTION

K4900-20003

1
Out of stock

92004

STUD,8X22 This part replaces K9200-41249.

K9200-40025

2
Out of stock

92037

CLAMP

K9203-71523

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

KK920-42007

4
Out of stock

92043

PIN,10.1X12X14

K9204-34009

2
Out of stock

92049

SEAL-OIL | OPTION

K9204-91196

1
Out of stock

92066

PLUG,4X18

K9206-60024

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

K9206-61012

2
Out of stock

92066B

PLUG,10X16.6

K9206-63777

1
Out of stock

92145

SPRING | OPTION

K9214-50048

1
Out of stock

92153

BOLT,6X38

K9215-30338

6
Out of stock

92153A

BOLT,6X45

K9215-30339

2
Out of stock

92153B

BOLT,10X122

K9215-30341

4
Out of stock

92170

CLAMP

K9217-01514

1

$4.23

In stock

92171

CLAMP This part replaces K9217-11553.

K9217-10314

1
Out of stock

92200

WASHER,10.5X19X2.3

K9220-01339

4
Out of stock

99999

KIT.,MANUAL DECOMP | OPTION

K9999-90023

1
Out of stock

120

BOLT-SOCKET,6X1 | OPTION This part replaces KK120-P0612.

K120C-A0612

1
Out of stock

120A

BOLT-SOCKET,6X2 This part replaces KK120-P0625.

K120C-A0625

2
Out of stock
