2004 Suzuki RM-Z250 Brake Pedal Diagram

← All diagrams

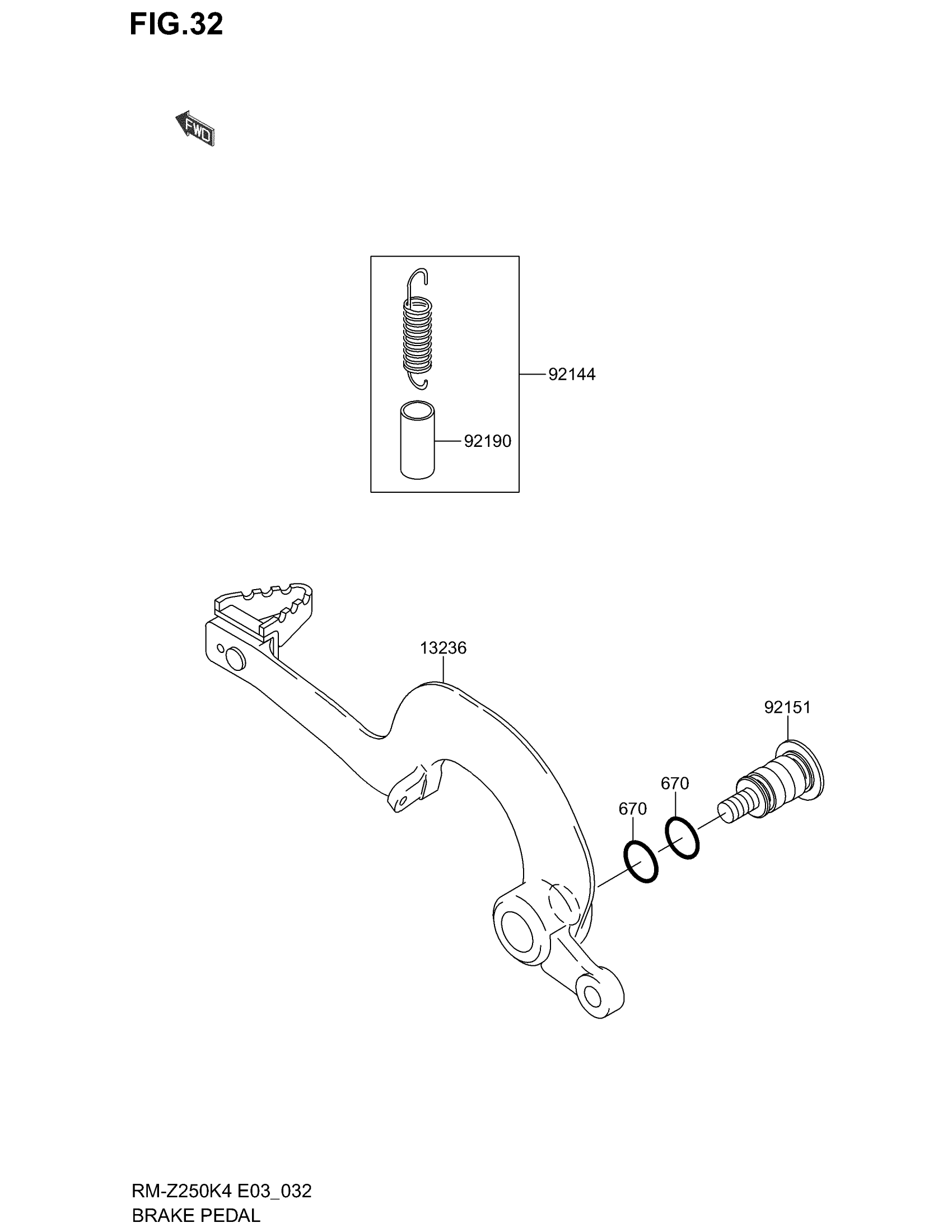

Find the part on the Brake Pedal diagram for your 2004 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki RM-Z250 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,BRAKE PEDAL

K1323-60032

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

K9214-41752

1
Out of stock

92151

BOLT

K9215-11572

1
Out of stock

92190

TUBE,13X16X25

K9219-01488

1
Out of stock

670

O RING,12MM

KK670-B2012

2
Out of stock
