Description

Price

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 12

59300-03B20-999

$460.16

2

PISTON SET

59301-03810

$73.57

3

SEAL SET

59300-40810

$39.43

4

.SPRING, PAD

59315-20E00

$16.77

5

.BOOT, AXLE

59312-36500

$4.78

6

.INSULATOR, AXLE

59313-36500

$5.48

7

PIN

69141-03B00

$26.15

8

.CLIP, PAD PIN

69142-45000

$3.97

9

BLEEDER

59121-03B00

$23.17

10

CAP, BLEEDER This part replaces 59122-02B40.

55156-66310

$4.73

11

.GUIDE, PAD

59116-20E00

$8.21

12

CARRIER, LH

59350-03B00

$100.95

13

PAD & SHIM SET | Includes Item(s) 14

59301-03820

$54.93

14

SHIM

59371-03B00

$17.40

15

BOLT

09103-08377

$3.19

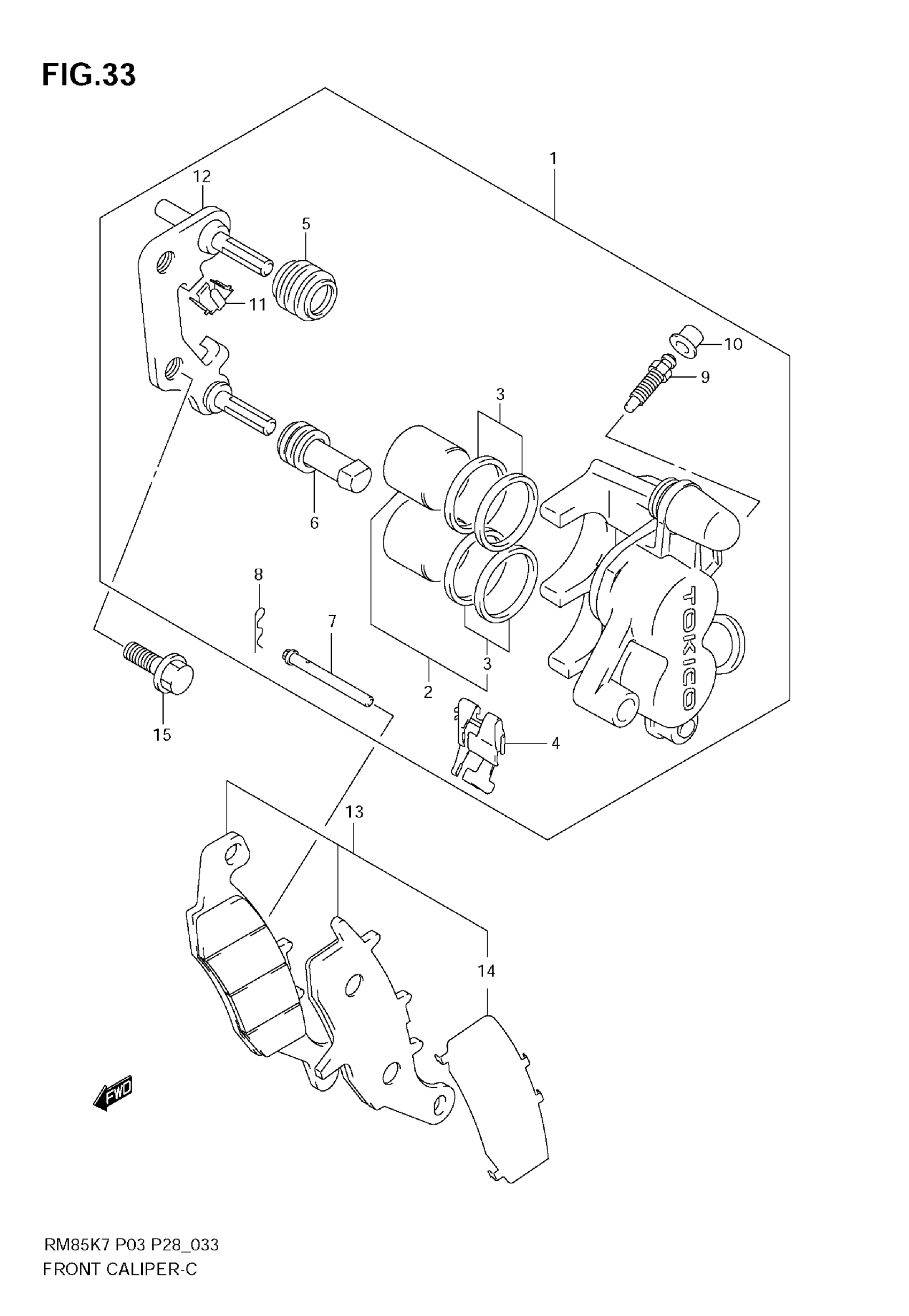

Suzuki RM-85 (2009) FRONT CALIPER Diagram
