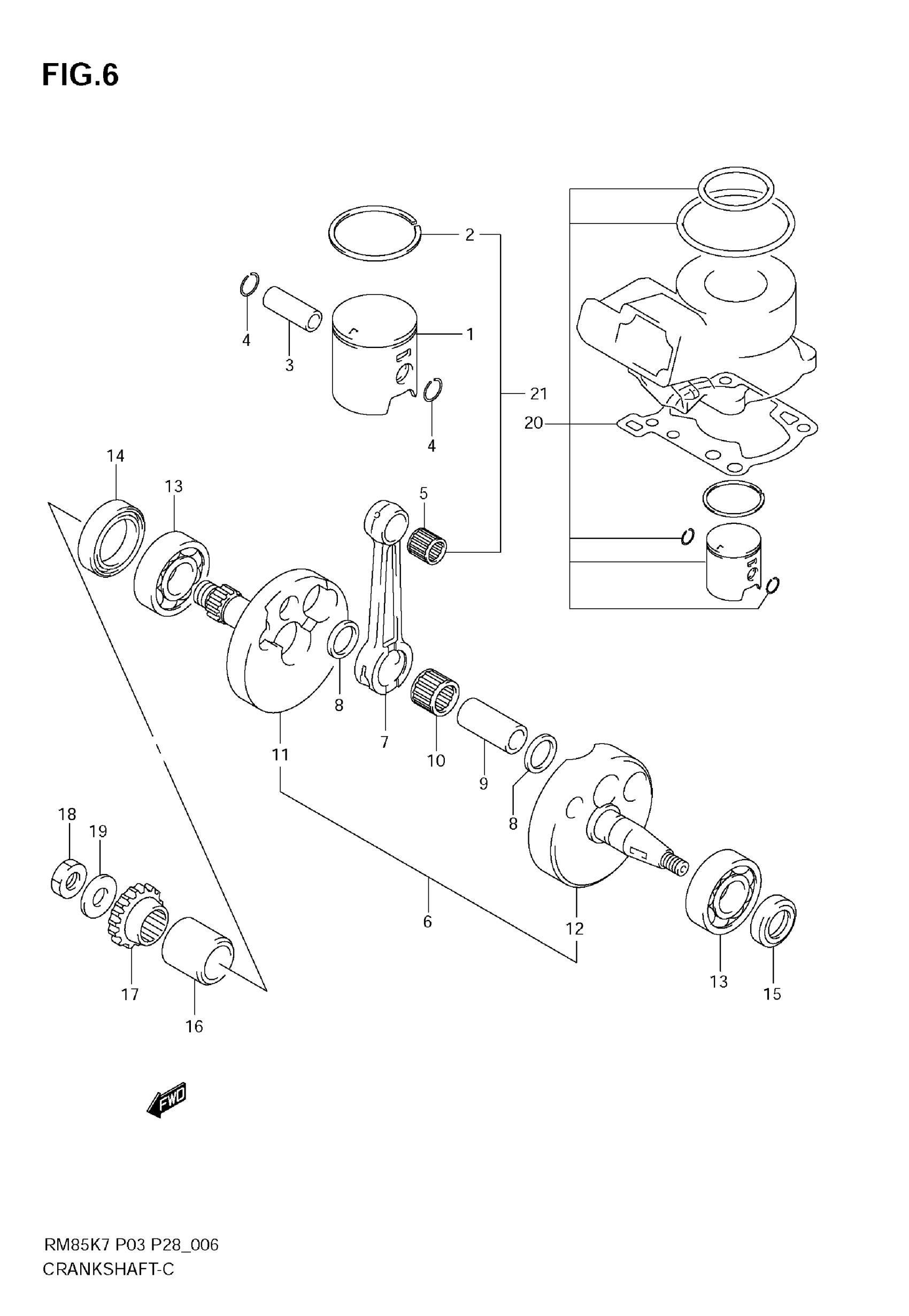

Suzuki RM-85 (2009) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-03B20-0F0

$80.17

2

RING, PISTON

12141-03B00

$21.88

3

PIN, PISTON

12151-20910

$17.23

4

RING

09381-14001

$1.43

5

BEARING, PISTON PIN

09263-14016

$12.21

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-03B20

$627.35

7

ROD, CONNECTING

12161-03B02

$106.10

8

WASHER

09160-20082

$9.08

9

PIN, CRANK

12211-02B50

$40.83

10

BEARING (20X26X13.7)

09263-20088

$68.50

11

CRANKSHAFT, RH

12221-03B01

Unavailable

12

CRANKSHAFT, LH

12261-03B01

Unavailable

13

BEARING (20X52X15)

09262-20082

$33.28

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$13.82

15

SEAL,OIL This part replaces 09283-18007.

09283-18010

$5.36

16

SPACER, PRIMARY DRIVE GEAR

12359-27C30

$22.25

17

GEAR, PRIMARY DRIVE (NT:18)

21111-02B41

$70.33

18

NUT

09140-16019

$3.33

19

WASHER

09164-16002

$2.90

20

TOP END KIT, ENGINE | OPT E3; Includes Item(s) 20 - 20

12100-03860

$226.70

20

O RING, CYLINDER HEAD NO.1 | NOT SHOWN

11147-03B00

$9.34

20

O RING, CYLINDER HEAD NO.2 | NOT SHOWN

11148-03B00

$4.90

20

GASKET, CYLINDER | NOT SHOWN

11241-03B01

$7.63

20

PISTON | NOT SHOWN

12110-03B20-0F0

$80.17

20

RING, PISTON | NOT SHOWN

12141-03B00

$21.88

20

RING | NOT SHOWN

09381-14001

$1.43

21

PISTON KIT | OPT E28; Includes Item(s) 21 - 21

12100-03850

$143.57

21

RING, PISTON | NOT SHOWN

12141-03B00

$21.88

21

PIN, PISTON | NOT SHOWN

12151-20910

$17.23

21

BEARING (14X18X16) | NOT SHOWN

09263-14016

$12.21

21

RING | NOT SHOWN

09381-14001

$1.43
