2025 Kawasaki Ridge® XR Hvac Steering Wheel Diagram

← All diagrams

Find the part on the Steering Wheel diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

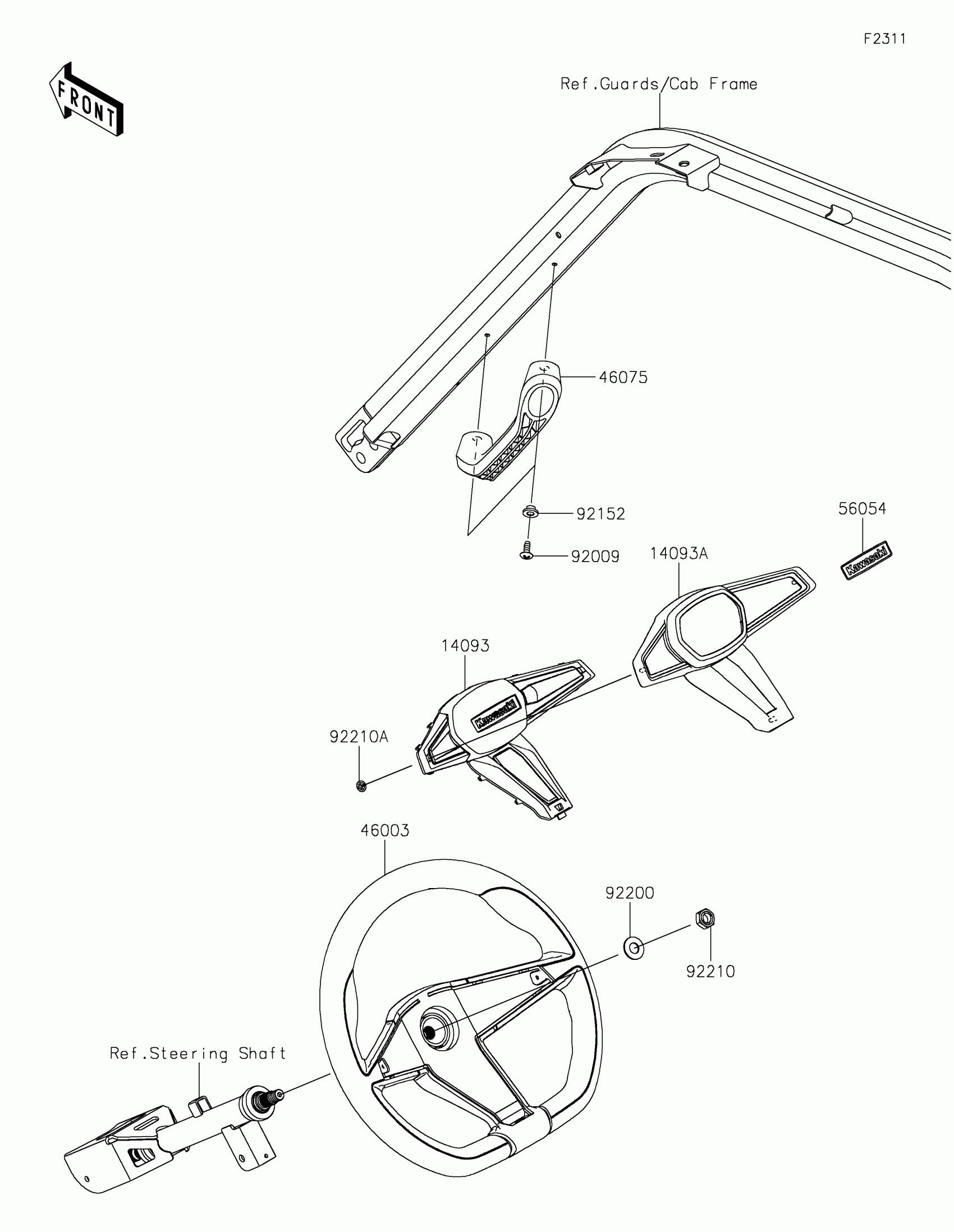

2025 Kawasaki Ridge® XR Hvac Steering Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HORN

14093-1346

1

$10.69

In stock

14093A

COVER,HORN,OUTER,S.BLACK

14093-1356-839

1

$13.00

In stock

46003

HANDLE

46003-0824

1

$115.02

In stock

46075

GRIP,CNT/RH

46075-0667

1

$7.81

In stock

56054

1

$4.83

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92152

COLLAR,7X9.5X7.5

92152-3832

1

$3.01

In stock

92200

WASHER,12.1X25X1.6

92200-0455

1
Out of stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock

92210A

NUT

92210-1796

1

$0.44

In stock
