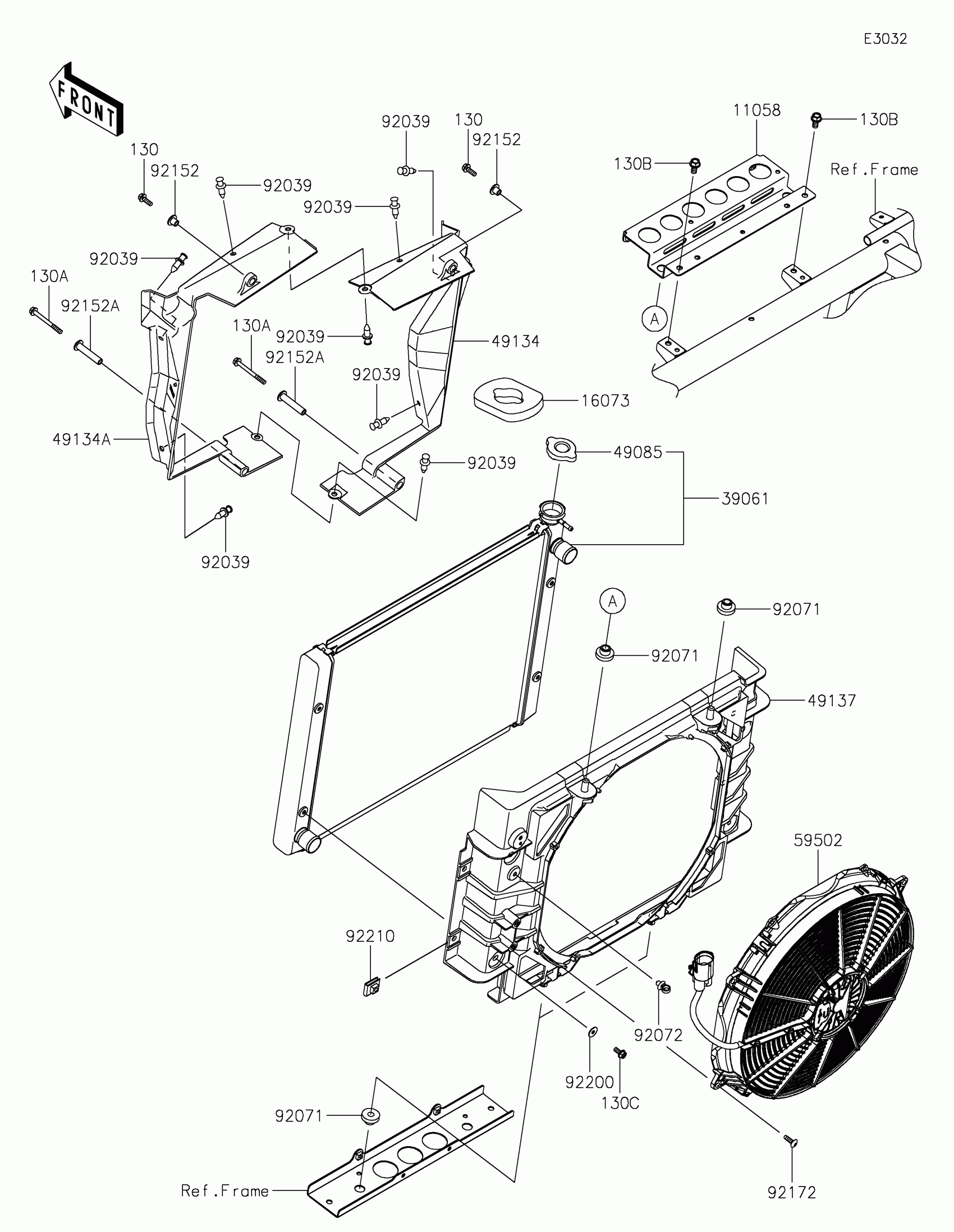

Kawasaki RIDGE® XR HVAC Radiator Diagram

Description

Price

11058

BRACKET,RADIATOR

11058-1410

$180.08

16073

INSULATOR,RADIATOR CAP

16073-0961

$20.85

39061

RADIATOR-ASSY

39061-0860

Unavailable

49085

CAP-ASSY-PRESSURE

49085-0005

$40.29

49134

SHROUD,RH

49134-0020

$10.53

49134A

SHROUD,LH

49134-0021

$10.53

49137

SHROUD,FAN

49137-0009

$50.13

59502

FAN-ASSY

59502-0640

$478.75

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0827

$2.76

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92152

COLLAR

92152-2922

$8.29

92152A

COLLAR

92152-2923

$11.34

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92200

WASHER,6.1X18X1.0

92200-2125

$2.32

92210

NUT

92210-0774

$3.13

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,6X60

130BA0660

$3.13

130B

BOLT-FLANGED,8X16

130BA0816

$0.89

130C

BOLT-FLANGED,6X14

130CA0614

$3.14
