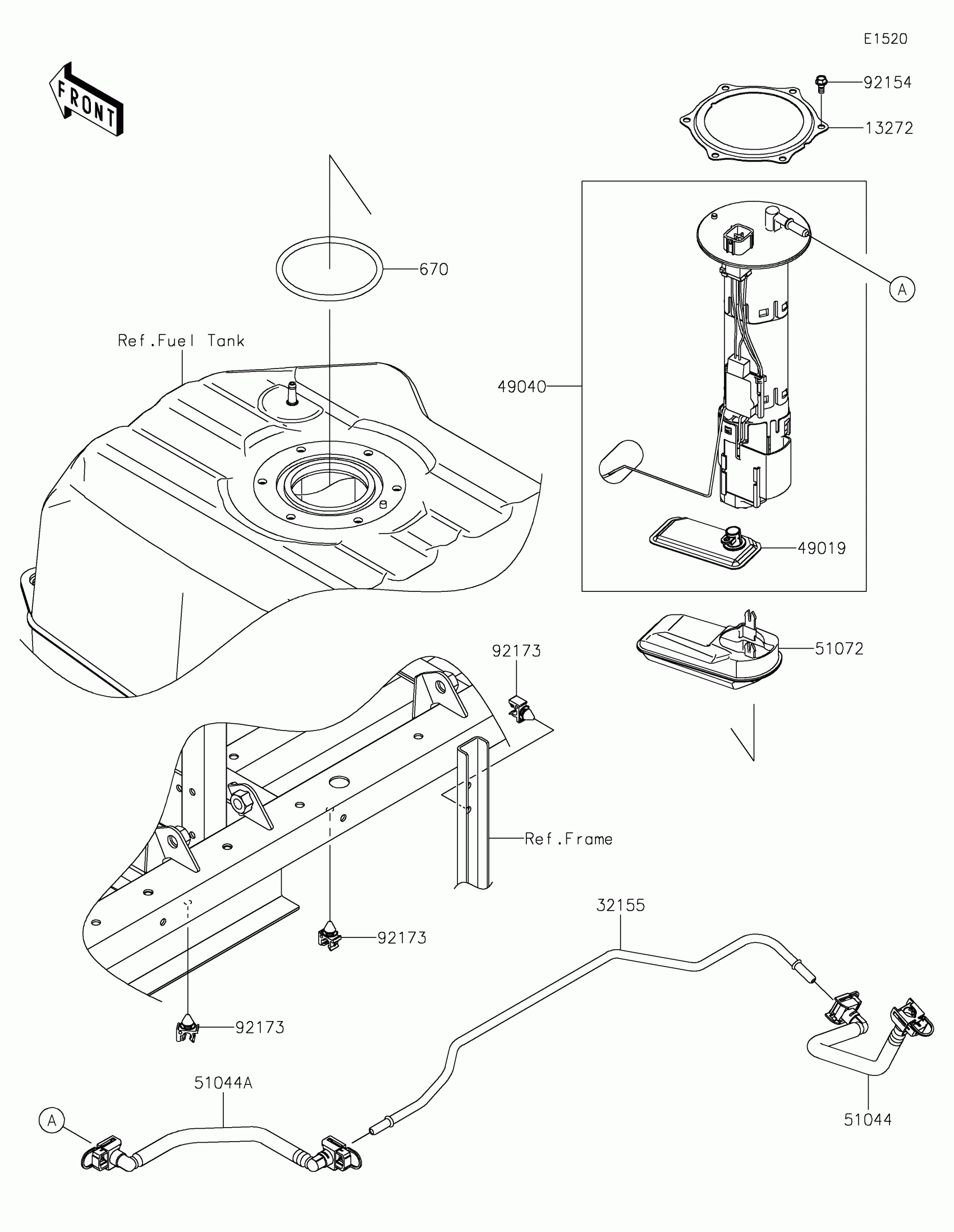

Find the part on the Fuel Pump diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2500

1

$5.19

In stock

32155

PIPE,FUEL

32155-7458

1

$33.82

In stock

49019

FILTER-FUEL

49019-0034

1

$26.53

In stock

49040

PUMP-FUEL

49040-0828

1

$842.80

In stock

51044

1

$69.23

In stock

51044A

TUBE-ASSY,PUMP-PIPE

51044-1241

1

$68.19

In stock

51072

CHAMBER-FUEL

51072-0008

1

$6.21

In stock

92154

BOLT,FUEL PUMP

92154-1326

1

$0.93

In stock

92173

CLAMP,FUEL PIPE

92173-1213

1

$1.32

In stock

670

O RING

670E5090

1

$27.83

In stock
