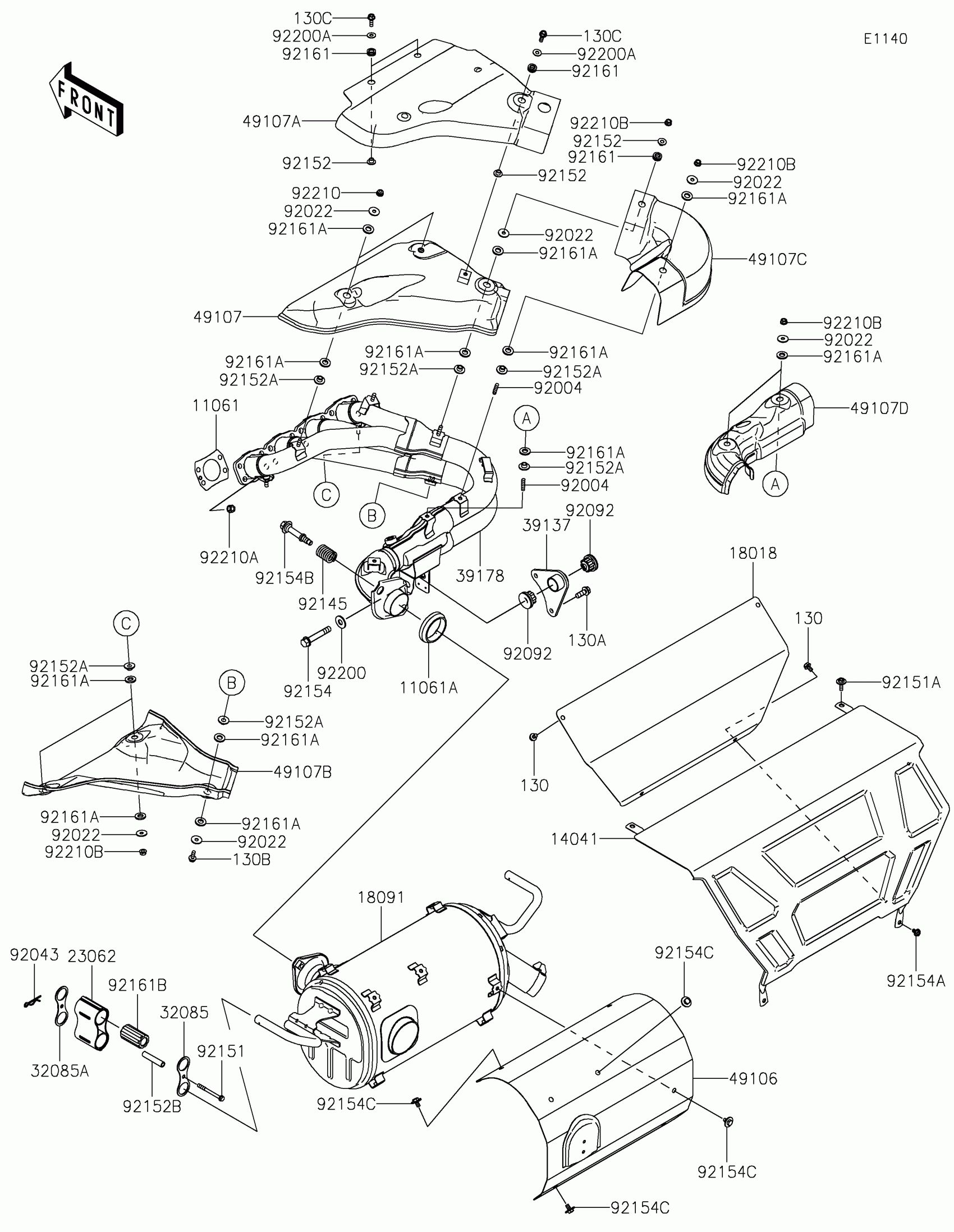

Kawasaki RIDGE XR CREW Muffler(s) Diagram

#

Description
Price

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1472

$14.15

11061A

GASKET,EXHAUST PIPE-MUFFLER

11061-1473

$47.41

14041

COVER-COMP

14041-0635

$162.63

18018

PLATE-HEAT GUARD

18018-0648

$200.73

18091

BODY-COMP-MUFFLER

18091-1296

$1,191.29

23062

BRACKET-COMP

23062-1415

$30.22

32085

STOPPER

32085-0905

$7.47

32085A

STOPPER

32085-0906

$9.58

39137

STAY-COMP

39137-0736

$49.59

39178

MANIFOLD-COMP-EXHAUST

39178-0450

$147.37

49106

COVER-MUFFLER

49106-0879

$635.85

49107

COVER-EXHAUST PIPE

49107-0873

$114.87

49107A

COVER-EXHAUST PIPE,FR UPPER

49107-0874

$78.94

49107B

COVER-EXHAUST PIPE,FR LOWER

49107-0875

$85.11

49107C

COVER-EXHAUST PIPE,CNT

49107-0876

$47.42

49107D

COVER-EXHAUST PIPE,RR

49107-0877

$45.72

92004

STUD,6X18

92004-0799

$1.05

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92043

PIN

92043-1781

$0.76

92092

BUSHING-RUBBER

92092-1081

$20.13

92145

SPRING

92145-2262

$9.02

92151

BOLT,6X60

92151-1795

$1.73

92151A

BOLT

92151-2139

$2.03

92152

COLLAR,6.3X8.3X16

92152-0286

$4.27

92152A

COLLAR

92152-0423

$2.98

92152B

COLLAR

92152-2943

$14.24

92154

BOLT,FLANGED,10X60

92154-0263

$4.66

92154A

BOLT,FLANGED,6X10

92154-0492

$4.27

92154B

BOLT,MUFFLER

92154-4485

$8.75

92154C

BOLT,6X12

92154-7240

$4.29

92161

DAMPER

92161-0308

$3.51

92161A

DAMPER

92161-0319

$2.98

92161B

DAMPER

92161-2494

$30.97

92200

WASHER,10.5X25X2.0

92200-1377

$3.19

92200A

WASHER,6.5X16X1.0

92200-3712

$2.84

92210

NUT,6MM

92210-0991

$5.66

92210A

NUT,8MM

92210-1242

$1.73

92210B

NUT,6MM

92210-1787

$0.89

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,8X22

130BA0822

$2.59

130B

BOLT-FLANGED,6X16

130BD0616

$3.51

130C

BOLT-FLANGED,6X18

130BD0618

$0.86
