2025 Kawasaki Ridge XR Crew Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Ridge XR Crew, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

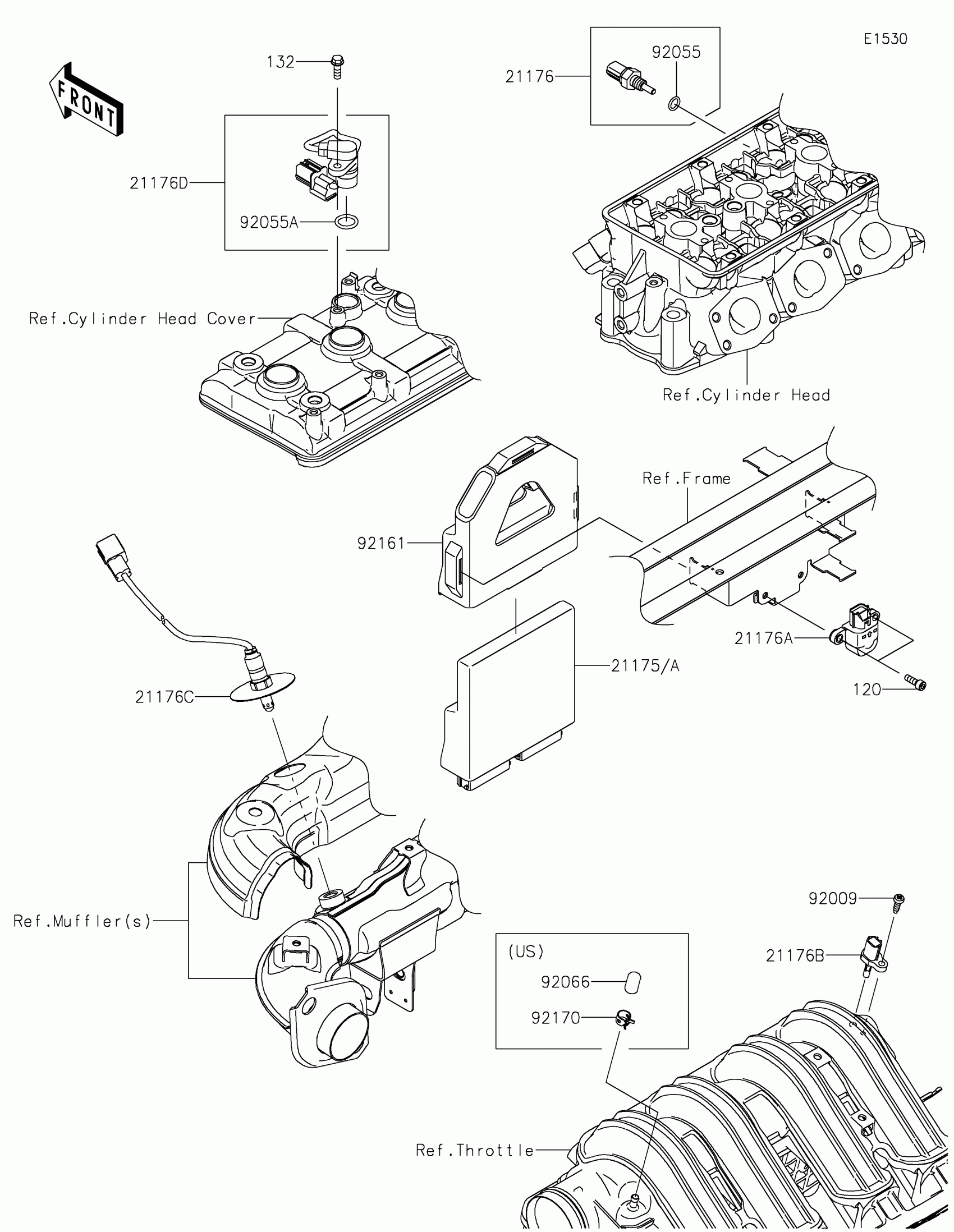

2025 Kawasaki Ridge XR Crew Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-2149

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-2150

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,OXYGEN

21176-0935

1
Out of stock

21176D

SENSOR

21176-1077

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-1639

1
Out of stock

92066

PLUG

92066-0862

1
Out of stock

92161

DAMPER,ECU

92161-2495

1
Out of stock

92170

CLAMP

92170-2043

1

$1.08

In stock

120

BOLT-SOCKET,5X16

120CA0516

1
Out of stock

132

1

$1.21

In stock
