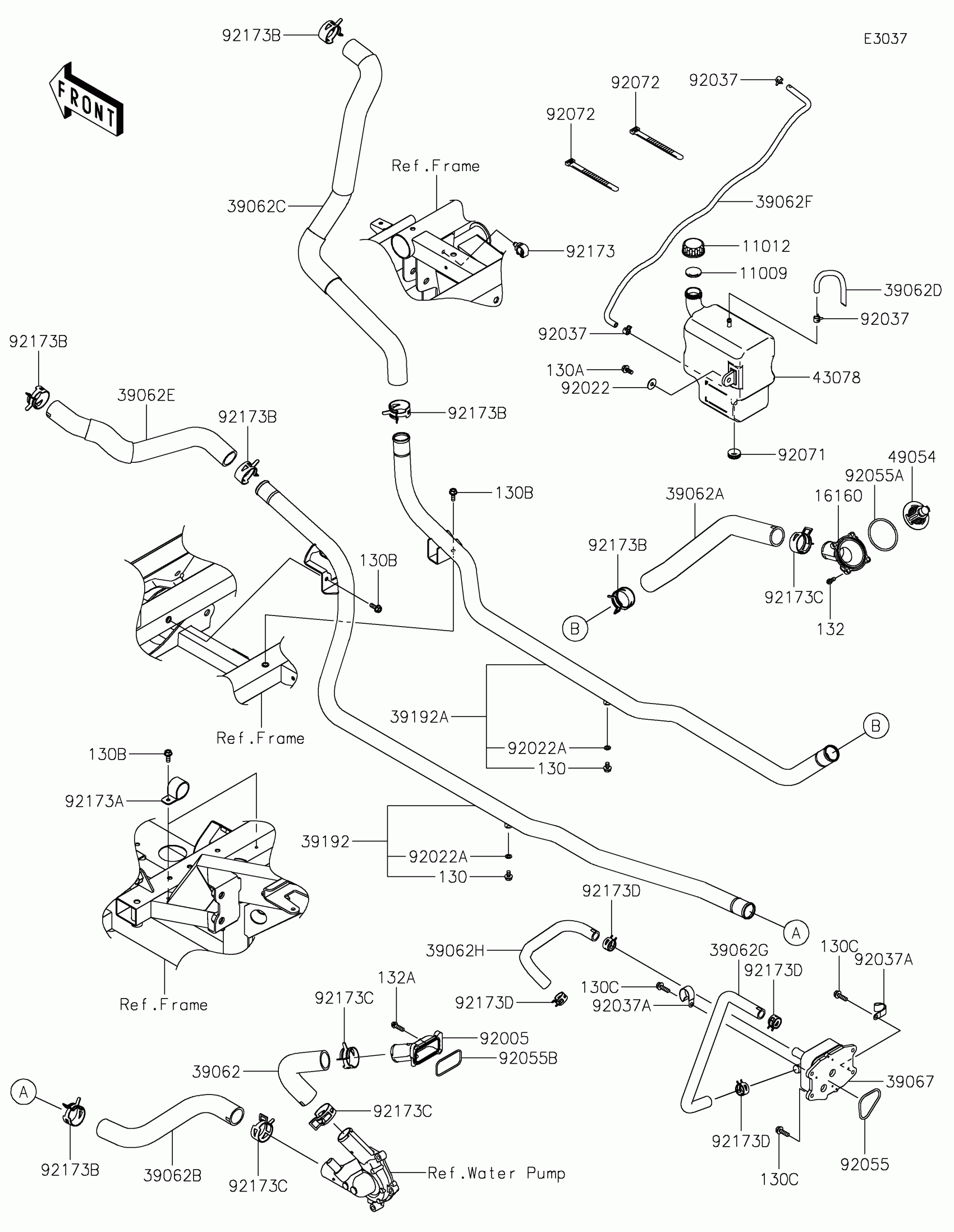

Kawasaki RIDGE® RANCH EDITION Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

16160

BODY,THERMOSTAT

16160-0835

$41.18

39062

HOSE-COOLING,W/PUMP-FITTING

39062-0953

$46.24

39062A

HOSE-COOLING,ENGINE-PIPE RH

39062-0954

$46.24

39062B

HOSE-COOLING,PIPE LH-W/PUMP

39062-0957

$46.24

39062C

HOSE-COOLING,PIPE RH-RADIATOR

39062-0958

$81.41

39062D

HOSE-COOLING,OVER FLOW

39062-0959

$92.47

39062E

HOSE-COOLING,RADIATOR-PIPE LH

39062-0960

$42.61

39062F

HOSE-COOLING,RAD-RESERVOIR

39062-0969

$11.05

39062G

HOSE-COOLING,HEAD-OIL COOLER

39062-0972

$21.05

39062H

HOSE-COOLING,OIL COOLER-W/PUMP

39062-0973

$21.76

39067

COOLER-OIL

39067-0023

$359.15

39192

PIPE-WATER,LH

39192-0703

$91.85

39192A

PIPE-WATER,RH

39192-0704

$89.04

43078

RESERVOIR

43078-0617

$104.69

49054

THERMOSTAT

49054-0014

$37.76

92005

FITTING

92005-1443

$47.55

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP

92037-1993

$4.18

92055

RING-O,46.4X3.1

92055-0752

$3.36

92055A

RING-O,53.5X2.6

92055-0831

$5.99

92055B

RING-O,FITTING

92055-0923

$4.84

92071

GROMMET

92071-1115

$4.14

92072

BAND,L=123

92072-030

$3.81

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP

92173-1204

$3.49

92173B

CLAMP,28.6MM

92173-1205

$4.34

92173C

CLAMP,33.4MM

92173-1981

$4.04

92173D

CLAMP

92173-2285

$3.51

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

130B

BOLT-FLANGED,6X16

130BA0616

$0.97

130C

BOLT-FLANGED,6X20

130CA0620

$1.22

132

BOLT-FLANGED-SMALL,5X16

132BA0516

$1.63

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77
